Blackmagic Design ATEM 4 M/E Constellation HD
UPC/EAN #9338716007848
MPN #SWATEMSCN2/1ME4/HD
High definition live production switcher with 40x 3G-SDI inputs, 24x 3G-SDI outputs, 4 DVEs, 16 ATEM Advanced Keyers, 4 multiviews and 2 SuperSource for 12x DVEs in total
Introducing ATEM Constellation, the world's most powerful HD and 4K live production switchers! These incredibly powerful switchers are available in 4 great models, including a 1 M/E model with 10 inputs, a 2 M/E model with 20 inputs and two massive 4 M/E models with 40 inputs! Plus each SDI input features a full standards converter! ATEM Constellation includes advanced features such as DVEs, ATEM advanced chroma keyers, media players, multiviews, and SuperSource processors! Plus the built in Fairlight audio mixer includes a compressor, limiter, 6 band parametric EQ and expander on each input. The free ATEM Software Control is included, or you can add a 1 M/E, 2 M/E or 4 M/E ATEM Advanced Panel!
Seriously Advanced Broadcast Power

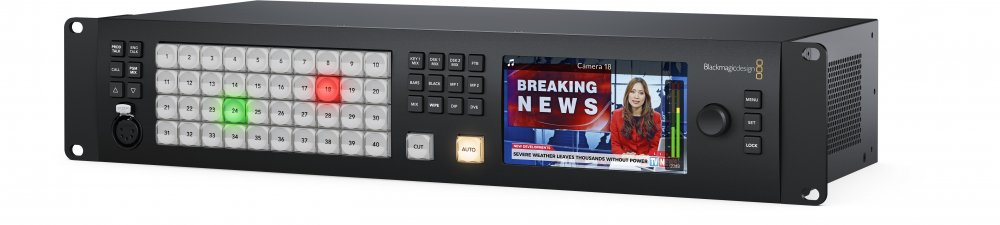

ATEM Constellation switchers feature a compact rack mount design with a built in control panel. This allows operation of the switcher, critical during setup or for emergency use. Also included is a large LCD so you can see program output and change switcher settings via on screen menus. The compact design is perfect for portable live production, with the rear of the switcher including connections for 3G-SDI or 12G-SDI inputs, aux outputs, balanced audio and Ethernet for control. The top 4 M/E models even include RS-422 for serial control and MADI digital audio connections. Even with all this power, ATEM Constellation is extremely quiet with its innovative high efficiency thermal system.
Designed for Massive Live Events!
With 4 powerful models, ATEM Constellation switchers are ideal for concerts and music festivals because you can place cameras on all areas of the stage for amazing coverage! Even live sports benefit from the huge number of inputs and DVEs let you build multi-layer compositions to cover the action. The fastest way to produce programming is live! With powerful internal graphics and lots of ATEM advanced chroma keyers, you get everything you need for complex program production. ATEM Constellation is also perfect for house of worship programming as it's big enough to allow professional results, but it's very simple to learn so it's easy to train a volunteer crew!
True Broadcast Style Mix Effects Switching
ATEM Constellation uses a professional "program/preview" style operation, which is the exact same way large broadcasters use live production switchers. This means you are using the same type of switcher used by the television industry. Both the free ATEM Software Control and the optional hardware ATEM Advanced Panels will allow program/preview style switching. This means you can select a source on the preview bus to ensure it's correct before pushing the CUT or AUTO button to switch it on air. This 2 step program/preview process means far fewer mistakes! Program/preview operation means ATEM Constellation is the best solution for training students for a career in broadcast television!
Full Front Panel Control

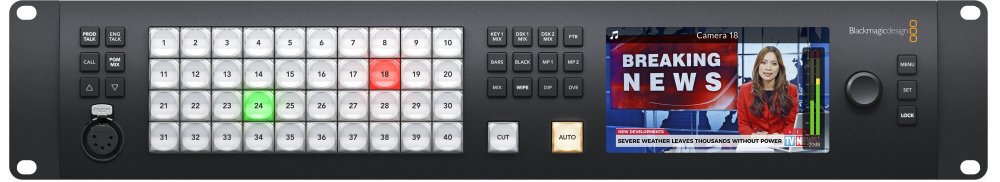

With a control panel built into the front panel, you can simply walk up and operate the ATEM Constellation at any time. ATEM Constellation has similar features to ATEM Mini, so it's a fantastic upgrade when you need a bigger switcher! Plus the front panel control buttons are the same premium type used on full sized panels so they are extremely reliable. You can even control keyers, media and fade to black from the front panel! There is an industry standard 5 pin talkback headset connector on the front panel, with controls for talkback control. Plus the front panel LCD and menu buttons also allow almost every single operational feature of the switcher to be accessed!
The massive 4 M/E model doubles the features of the 2 M/E model with 40 x 3G-SDI inputs, 24 x 3G-SDI outputs, 4 DVEs, 16 ATEM Advanced Keyers, 4 multiviews and 2 SuperSource for 12 x DVEs in total.
Features
40 x 3G-SDI inputs24 x 3G-SDI outputs4 DVEs16 ATEM Advanced Keyers4 multiviews2 SuperSource for 12 x DVEs in total
Specifications
Total Video Inputs
40
Total Video Outputs
24
SDI Rates
1.5G, 3G
Total Audio Inputs
2 x balanced 1/4 inch Jack1 x 32 stereo channel BNC MADI in1 x 5 pin XLR Talkback
Total Audio Outputs
2 x balanced 1/4 inch Jack2 x 32 stereo channel BNC MADI out1 x 5 pin XLR Talkback
SDI Audio Inputs
2 Ch embedded audio on all SDI inputs.
SDI Audio Outputs
2 Ch embedded audio on all SDI outputs.
Timecode Connections
None
Reference Input
Tri-Sync or Black Burst.
Video Input Re-Sync
On all 40 inputs.
Frame Rate and Format Converters
On all 40 inputs.
SDI Aux Outputs
Any of the 24 SDI outputs.
SDI Preview Outputs
Any of the 24 SDI outputs.
SDI Program Outputs
Any of the 24 SDI outputs.
Down Converted SDI Program Output
None
Webcam Output
1 x USB-C supporting 720p or 1080p at PGM frame rate.
Total Multi Views
4 x 3G-SDI
Remote
RJ12 supports RS-422
Control Panel Connection
Ethernet. Direct connection between panel and chassis, or via network.
Internal Timecode Generator
Yes
Talkback
RJ45 for 3rd party talkback systems.
Tally Output
Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Ethernet
Supports 10/100/1000 BASE-T.
Computer Interface
1 x USB-C supports USB 2.0
