Blackmagic Design ATEM 4 M/E Broadcast Studio 4K
UPC/EAN #9338716005356
MPN #SWATEMRRW4ME4K
High performance live production switcher with 16 next generation ATEM Advanced Chroma Keyers, 2 Ultra HD multi viewers, full 2D DVE, and built in SuperSource compositing engine
The World's Most Advanced Live Production switchers!
Create stunning multi camera live production with the world's most advanced production switchers! ATEM switches between SD, HD or Ultra HD video standards so you can form exciting live production with a wide range of video sources such as cameras, disk recorders and slide shows or animation from computers. You get powerful features such as chroma key, creative transitions, media pool, downstream keyers, audio mixer, multi view and more! The more advanced models include features such as up to 20 SDI inputs, SuperSource multi-layer engine, full motion DVE, stinger transitions, larger media pool with full motion clips and up to an incredible 6 auxiliary outputs!
Creative features with advanced technology
Take your live production beyond broadcast quality! ATEM live production switchers have all the features you need for the most innovative live concerts, sporting events, theater productions, conferences and more! When you're doing live events with super large high resolution screens, then simply switch your ATEM live production switcher to Ultra HD for incredible quality. Many live events now use massive high resolution LED screens and projectors and now you can drive those screens in full resolution!

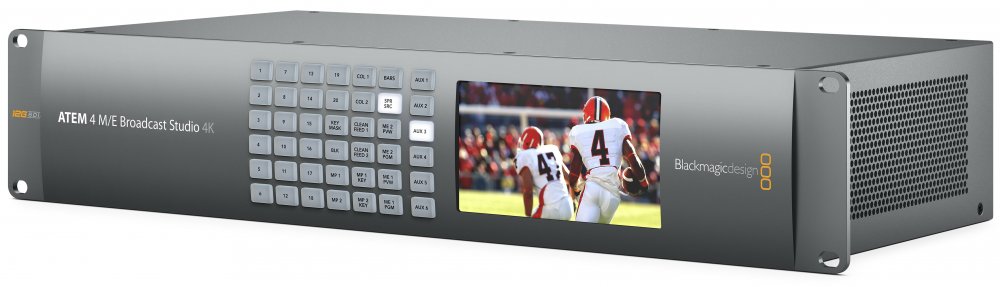

Elegant machined metal design in a super compact size!
ATEM live production switchers feature an elegant machined aluminum front panel with dedicated buttons to let you switch auxiliary outputs. You can use the built in video screen to monitor auxiliary outputs or as technical monitoring to help during set up! You get the highest quality video and audio connections that switch virtually all SD, 720p HD, 1080i HD, 1080p HD and Ultra HD formats, plus built in multi voltage power supplies so you can take your switcher anywhere in the world!
Get one of the world's most compact and advanced switchers with the new ATEM 4 M/E Broadcast Studio 4K. You get an incredibly high performance live production switcher designed to work with the latest formats and high frame rates, all the way up to Ultra HD 2160p59.94! You get 16 next generation ATEM Advanced Chroma Keyers with 4 per M/E, perfect for advanced work and virtual sets. As the most advanced ATEM switcher, this model also includes the latest technology and features such as 2 Ultra HD multi viewers, full 2D DVE, built in SuperSource compositing engine with 4 picture in picture DVE's, full re-synchronization on each 12G-SDI input and much more! The multi rate 12G-SDI connections automatically switch between all HD and Ultra HD formats up to 2160p59.94 with a single BNC cable! Even if you're not working in Ultra HD now, the ATEM 4 M/E Broadcast Studio 4K has all the power and features for the highest end live production work, while being Ultra HD ready the instant you need it!
Features
16 next generation ATEM Advanced Chroma Keyers2 Ultra HD multi viewersFull 2D DVEBuilt in SuperSource compositing engineDesigned to work with the latest formats and high frame rates, all the way up to Ultra HD 2160p59.94Full re-synchronization on each 12G-SDI input
Specifications
Total Video Inputs
20
Total Video Outputs
13
Total Aux Outputs
6
SDI Rates
1.5G, 3G, 6G, 12G
Total Audio Inputs
2 x XLR. 2 x RCA.
Total Audio Outputs
2 x XLR Program 2 x XLR Monitor.
Timecode Connections
1 x XLR Timecode in and 1 x XLR Timecode out.
Reference Input
Tri-Sync or Black Burst.
Video Input Re-Sync
On all 20 inputs.
SDI Video Inputs
20 x 10-bit HD/Ultra HD 4K switchable. 2 channel embedded audio.
Extra Audio Outputs
1 x XLR Timecode and 1 x XLR Talkback.
SDI Audio Outputs
2 Ch embedded into SDI output on all outputs.
Extra Audio Inputs
1 x XLR Timecode and 1 x XLR Talkback.
SDI Program Outputs
3 x 10-bit HD/Ultra HD 4K switchable.
Down Converted SDI Program Output
1 x 10-bit (From Ultra HD 4K to HD).
SDI Preview Outputs
1 x 10-bit HD/Ultra HD 4K switchable.
Total Multi Views
2
SDI Multi View Outputs
2
Control Panel Connection
Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.
Tally Output
Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Computer Interface
1 x USB 2.0 port.
