Blackmagic Design ATEM 4 M/E Advanced Panel 40
UPC/EAN #9338716 006810
MPN #SWPANELADV4ME40

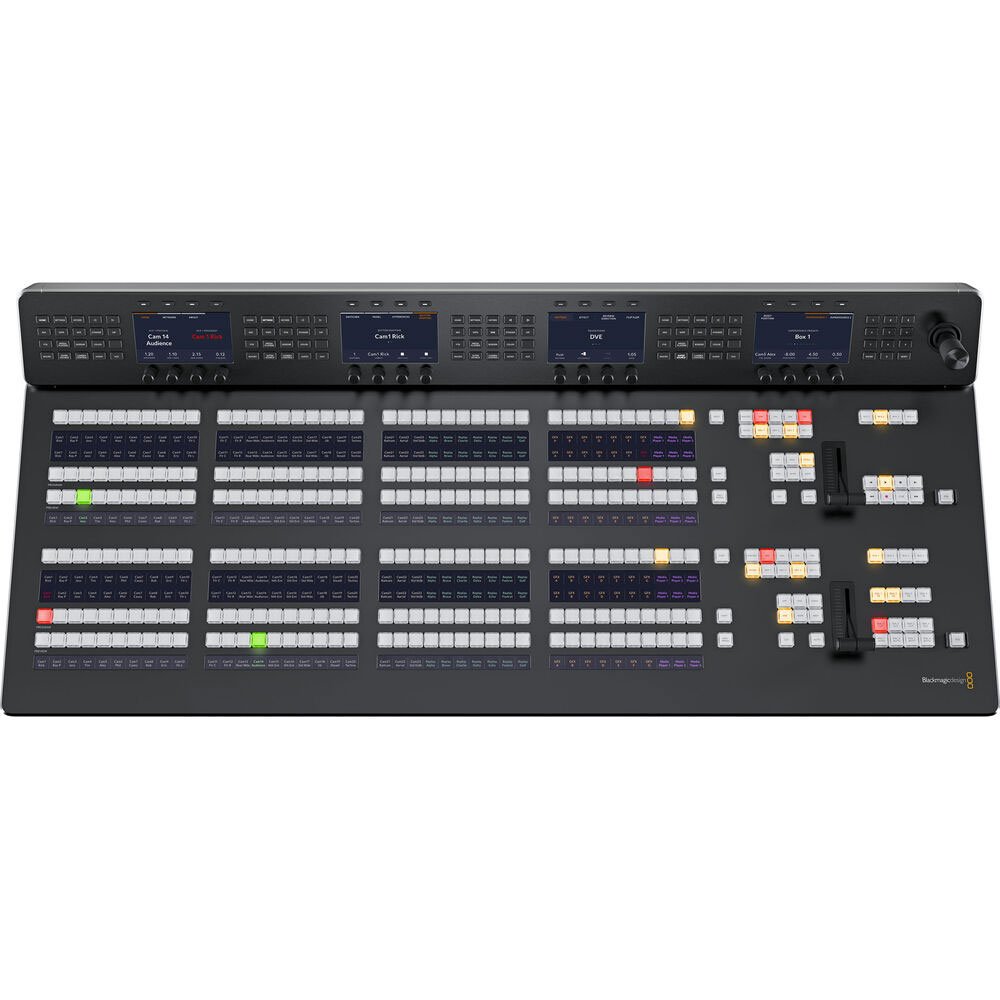

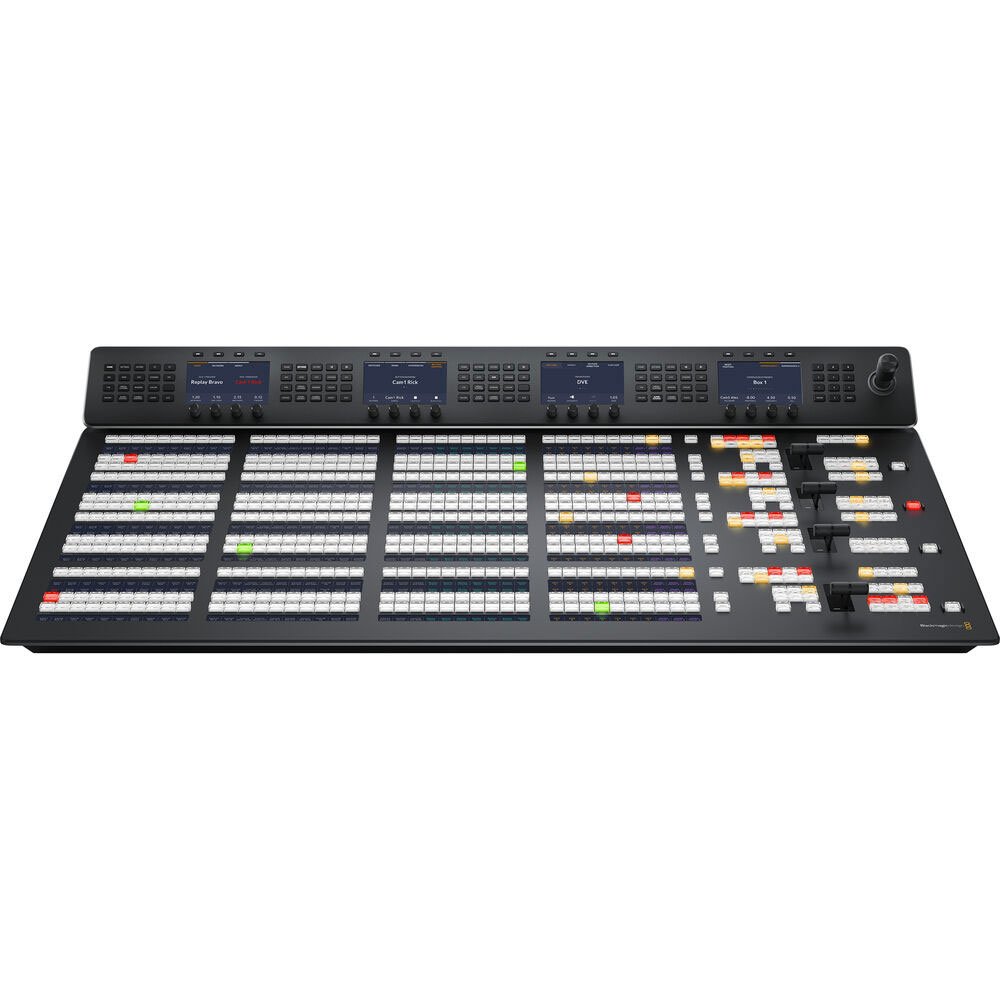

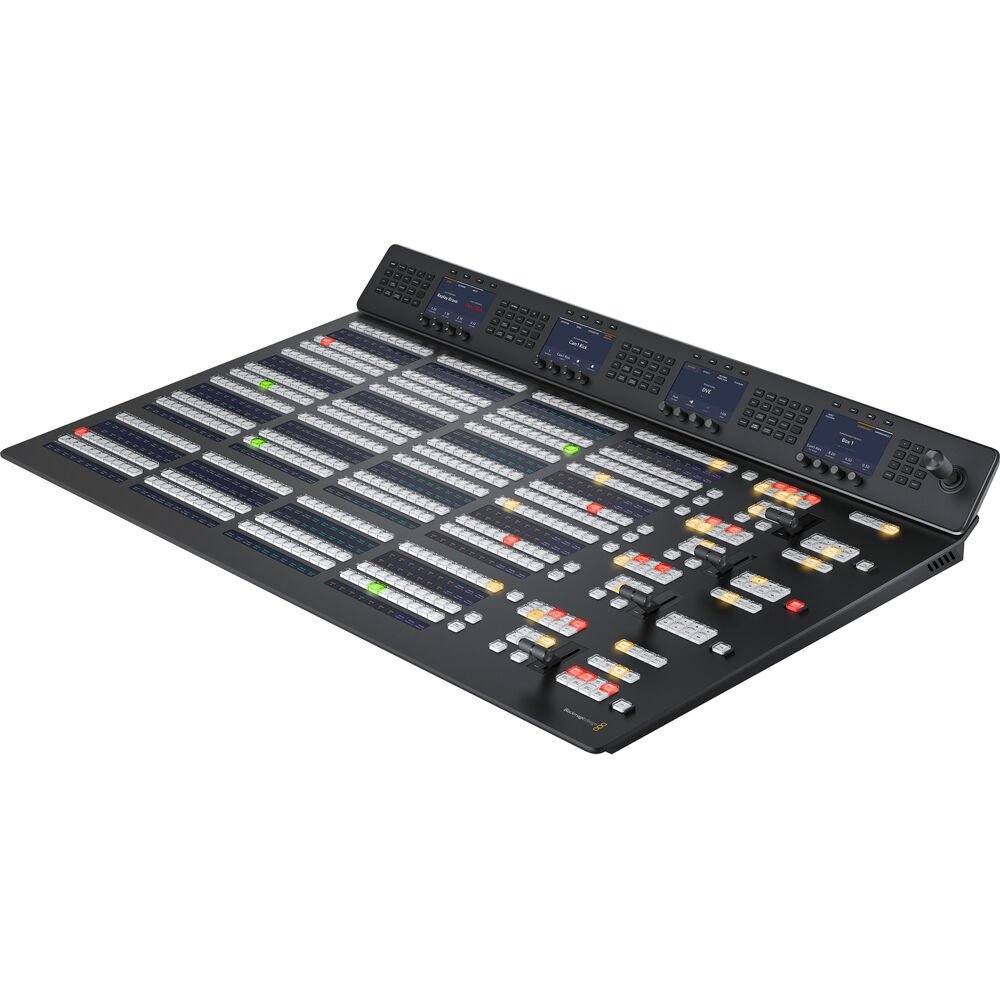

Video Switching Controller with 40 input buttons per row, 4 system control LCDs, Tri-color Buttons, and T-bar
ATEM 4 M/E Advanced Panel 40
The perfect hardware panel for ATEM Constellation 8K! It features 4 M/E rows with 40 buttons per row and 4 system control LCDs. With 32 LCDs, you can custom label every button on every row!
Switch cameras to air instantly!
ATEM Constellation has been designed to give you the most advanced live switching workflow. Internally, ATEM Constellation has separate program and preview buses that you can use to quickly and accurately switch sources. ATEM Constellation lets you see your preview bus selection by using an aux output or on the multi view. Then all you need to do is make selections on the preview bus of the advanced panel, which will appear on your preview screen, allowing you to see your source before it goes on air. Then you can bring the source online by pressing cut or auto! You can also switch sources on the program bus if you need them to go live immediately!
Select and customize transitions
Get total control over your transitions with a dedicated hardware button for each transition type! When selecting transition types, a system control LCD screen will display the options for that transition, so you can change its parameters without navigating through complex menus. It's all instantly available! That gives you multiple ways to switch. Simply select a new source on the preview bus, then press CUT for a cut transition, or AUTO to use the selected transitions such as mix, dip, wipe or DVE! You can even cut directly on the program bus. With ATEM Advanced Panels you get all the controls you need to access all transition types fast.
Mix, dip, wipe, DVE and more!
ATEM switchers give you a huge range of transition styles! Mix transition will smoothly blend between sources just like an NLE cross dissolve. Standard SMPTE wipes are included and wipes can have edge softening for smooth dreamy transitions that are more exciting than simple cross dissolves. Dip transitions create a dip to color effect, however because you can dip to any video source, you could create really innovative effects! DVE transitions use the DVE to create crazy moves where the whole foreground image moves! Plus you can combine the DVE and a still image from the media pool to create graphic wipes! The t'bar fader even lets you manually position the transition for total control!
Transform wipes into exciting effects!
Power up your wipe transitions by accessing parameters to transform them into exciting effects. While you can select the wipe pattern directly on the LCD, you can also add lots of customization to suit your production style. You can adjust parameters such as symmetry and softness, but there are also adjustments for colored borders with variable width and softness, as well as the position of the centre of the wipe. You can even use the dedicated joystick to set precise wipe pattern positioning!
Amazing digital video effects
ATEM Advanced Panels are perfect for positioning the DVE for custom picture in picture effects because they include a joystick. The joystick allows the position to be set precisely and rotating the knob will change DVE size. You can also use the soft knobs and menus on the LCD to adjust the DVE position, size and other DVE features such as lighting and drop shadow effects. The DVE can be setup to fly graphics into frame or select any of the pre programed push and squeeze transitions.
Get perfect green screen keying
The system control knobs are ideal when doing chroma keying because you can finely adjust each parameter for clean key edges and seamless multi layer compositing effects. Unlike software control where you need to look at the user interface, the ATEM Advanced Panels have control knobs that you can hold while adjusting key parameters and looking at the video output live to ensure the key is seamless. Only fine adjustment of key settings live while watching the video, ensures your key is perfect.
Manually blend transitions
Amazing live performances often require transitions that need to be controlled manually. The ergonomically designed t'bar control lets you ride transitions perfectly as part of the live performance! Sometimes the emotion of a live event means you need to feel a transition to get it perfectly in sync with the camera operators and talent. Like a conductor, your ATEM Constellation is part of the performance and drives the mood as the production unfolds.
Perfect and predictable transitions!
Just below the panel fader bar is the auto transition button. Selecting auto will instantly perform the transition type you have set. This ensures you can accurately select your source and transition type before triggering the action, so you always know what is going to happen and there's much less chance of mistakes going to air. Auto transitions can be programed for durations from 1 to 250 frames and the benefit is each transition is consistent through your program.
Simulate new effects while on air
Unlike the simpler front panel on ATEM Constellation, the hardware panel includes a very useful preview transition button that lets you simulate a transition or effect before you use it! The PREV TRANS button helps you avoid on air mistakes when preparing live transitions by displaying the result on your preview video output or on the multiview screen on the ATEM Constellation. Preview transition is the only way to accurately setup complicated transitions and multi layered key effects.
Finish your program with style!
The built in fade to black button controls the entire output of the switcher! Selecting fade to black (FTB) will smoothly fade your program output to black at a preset transition rate. Because FTB is at the end of all processing, it ensures all video layers fade out together. You can even select to fade out audio when FTB is triggered. That's useful for the start and end of your production or for fading out to commercial breaks. FTB also includes button guards to stop accidental triggering!
Features
3-Axis Joystick, Keypad, 4 Fader Bars20 On-Air Indicators, 40 Cross PointsCustom Labeling, Redundant Power Supply4 x Gigabit Ethernet Loop Output24 Independent, 4 System Control LCDs4 M/E Rows, 40 Input Buttons Each RowHigh-Quality Buttons / Knobs / ControlsPanel for ATEM Constellation SwitcherUSB Type-C Input for Firmware Updates
Specifications
Connections
Ethernet: 4 x 10/100/1000 BaseT with loop output for additional control panels or computers.Software Updates: 1 x USB-C for firmware updates.
Product Specifics
Number of Mix Effects Rows: 4Direct Cross Points: 40Shifted Cross Points: 80Crosspoint Button Type: Tri-Color LEDCrosspoint Label: 10 rows 24 character LCDOn-Air indicator: 20Power Status Indicators: NoneDSK Transition Selectors: 4 x Auto, Cut, Tie/PreviewPreview Transition: 4Transition Rate Displays: Via main menuLCD Menu Displays: 4Menu Control: 4 x 20 buttonsDedicated Macro Buttons: 4 x 40Transport Control Buttons: 24Destination Bus: 4Source Select Bus: 4Fader Bar: 43 Axis Joystick: 1Numeric Keypad: 1
Software
Software Applications: ATEM Software Control Panel.
Power Requirements
Input Voltage: 2 x Internal 100 - 240V AC.Redundant Power: YesPower Usage: 250W
Environmental Specifications
Operating Temperature: 0 to 40 C (32 to 104 F)Storage Temperature: -20 to 60 C (-4 to 140 F)Relative Humidity: Up to 95%
What's Included
ATEM 4 M/E Advanced Panel 40
