Blackmagic Design 2110 IP UpDownCross 12G converter

MPN #CONVNVIPJ/STD/12G

$815.00

Financing available

Be the first to write a review

Free shipping in Canada. Conditions

12G-SDI, 2110 IP, HDMI, SD to 4K conversion, LCD with menus, USB webcam, headphone out, built-in speaker, reference I/O, dual power, rackmount

The Blackmagic 2110 IP UpDownCross 12G is a professional-grade standards converter designed to meet the rigorous demands of live production and broadcast environments. This all-in-one unit seamlessly bridges workflows by converting video between SMPTE-2110 IP, 12G-SDI, and HDMI interfaces. It supports conversions across all SD, HD, Ultra HD, and 4K DCI formats, delivering exceptional image fidelity and format flexibility. Whether you're integrating legacy broadcast gear with cutting-edge IP systems or distributing feeds to various display types, this converter ensures smooth, real-time transformation without compromising quality.

What sets this model apart is its elegant design and practical features aimed at ease of use. The front panel includes a 2.2-inch color LCD for monitoring video, audio levels, and navigating menus, alongside a speaker and headphone jack for quick audio checks. Built-in reference input and output connections enable synchronization across multi-device setups, while redundant power options (AC and DC) provide enhanced operational security. The front-facing USB-C port adds versatility by doubling as an HD webcam interface-ideal for streaming or video conferencing. With IP traffic shaping, NMOS support, and full SMPTE compliance, the UpDownCross 12G is engineered for modern, IP-centric video infrastructures.

Features

Powerful Format Conversion

Converts between 2110 IP, 12G-SDI, and HDMI video connections.

Handles all SD, HD, Ultra HD, and 4K formats with precision.

Ideal for use in broadcast, live production, or any mixed-format setup.

Flexible Video Routing

Includes SDI input, loop output, and two SDI outputs for expanded signal routing.

HDMI 2.0 output supports high-quality display and monitoring.

Professional Audio and Monitoring

Supports embedded audio across SDI, HDMI, and IP streams.

Front panel features speaker and headphone output for local monitoring.

Convenient Front Panel Control

Built-in LCD screen shows video, audio meters, and settings.

Easy navigation with 3-button interface and spin knob.

Front USB port functions as a 1080p HD webcam.

Advanced IP Integration

Fully compliant with SMPTE 2110 for IP video, audio, and metadata.

Includes reference input/output for video sync and stability.

Remote Management

Supports control via 10G Ethernet or USB-C using REST API.

Suitable for centralized or remote broadcast environments.

Rack-Mount Ready & Reliable Power

Compact 1RU design for standard rack mounting.

Features both internal AC and external DC power options for redundancy.

Specifications

General Specifications

Professional standards converter with support for SMPTE-2110 IP, 12G'SDI, and HDMI video

High-quality up, down, and cross conversion for SD, HD, Ultra HD, and 4K formats

Reference input and output for built-in resync

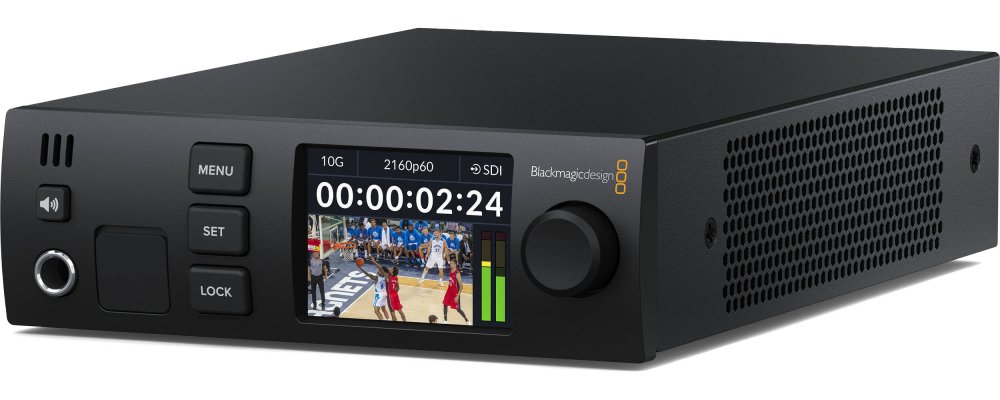

Elegant front panel with 2.2" LCD, built-in speaker, and headphone jack

Front USB-C port supports HD webcam functionality

REST API for external control

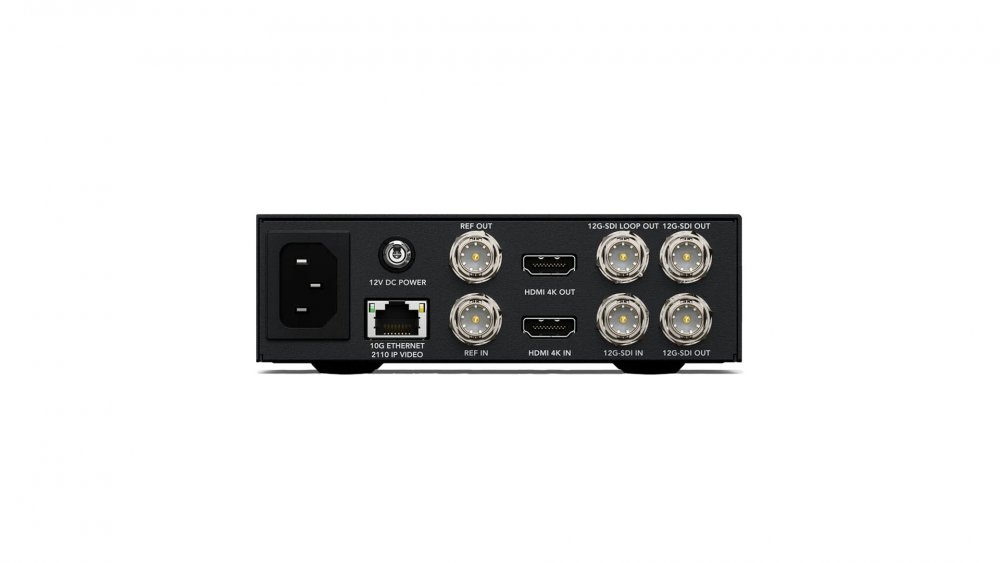

Video Connections

SDI Inputs: 1

SDI Loop Outputs: 1

SDI Outputs: 2

HDMI 2.0 Outputs: 1

SMPTE 2110 Input/Output: 1 x 10G Ethernet

Webcam Output: 1 x USB'C up to 1080p60

Reference In: 1

Reference Output: 1

Audio Connections

SMPTE ST 2110 IP Audio: 16 channels embedded I/O via 10G Ethernet

SDI Audio: 16 channels embedded input and output

HDMI Audio: 8 channels embedded input and output

Analog Audio Output: 1 x 6.35 mm headphone jack

Networking & Interfaces

Ethernet: 10/100/1000/10G BASE'T for video I/O, configuration, and updates

USB-C: For webcam, updates, and configuration

REST API over Ethernet for external control

Video Standards

SD: 525i59.94 NTSC, 625i50 PAL

HD/2K: 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98"60, 1080PsF23.98"30

Ultra HD: 2160p23.98"60

4K DCI: 4Kp23.98"60

HDMI Video Standards

HD: Matches HD standards above

Ultra HD: 2160p23.98"62

4K DCI: 4Kp23.98"60

HDMI Color Precision: 4:2:2

HDMI Color Space: YUV

Color & Audio Processing

Color Precision: 8/10-bit RGB 4:4:4 (?1080p30), 8/10-bit YUV 4:2:2 (all modes)

Color Spaces: Rec. 601, Rec. 709, Rec. 2020

Audio Sampling: 48 kHz, 24-bit

IP Video Compliance

SMPTE 2110-20: Uncompressed Video

SMPTE 2110-21: Traffic Shaping (Narrow, Wide, Async)

SMPTE 2110-30: PCM Audio (Level C)

SMPTE 2110-40: Ancillary Data (RP188, captions, HDR metadata)

Codec: Blackmagic IP10 for 2160p59.94/60 to 10G 2110 IP

Precision Time Protocol: IEEE 1588-2008 (PTP v2), ST 2059-1, ST 2059-2

NMOS: IS-04 v1.3.2, IS-05 v1.1.2, BCP-002-01, BCP-004-01

Control Interface

Built-in Control Panel: 3 buttons, spin knob, 2.2" LCD display

External Control: REST API over Ethernet

Display

Built-in 2.2" LCD for monitoring video, audio, and status with menu control

Operating Systems Compatibility

macOS: 13.0 Ventura, 14.0 Sonoma or later

Windows: 10 and 11

Power Requirements

Internal Power Supply: 100 - 240V AC, 50/60Hz

Power Inputs: 1 x IEC C14 socket, 1 x 12V DC input

Power Usage: TBD

Environmental Specifications

Operating Temperature: 0 to 40C (32 to 104F)

Storage Temperature: -20 to 45C (-4 to 113F)

Relative Humidity: 0% to 90% non-condensing

Included Items

Blackmagic 2110 IP UpDownCross 12G

Welcome wallet with QR code for software download
