Black Lion Audio Revolution Expander
UPC/EAN #753459974940
MPN #REVOLUTION-EXPANDER
$1139.00
Save 19.8%, MSRP $1420.00
Audio expander delivering enhanced dynamics processing, precise control, and high-quality performance for professional studio and live sound applications.

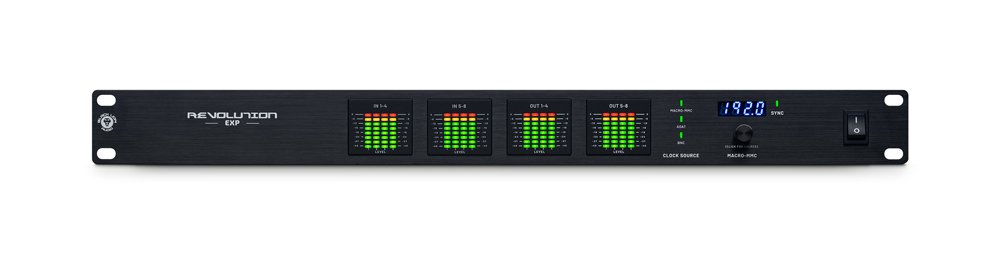

The Black Lion Audio Revolution EXP is a high-quality 8-in/8-out AD/DA converter designed to expand the input and output capabilities of your ADAT-compatible audio interface. It offers 16 channels of premium AD/DA conversion at up to 24-bit/192kHz, enhancing your studio's connectivity and flexibility.
Equipped with eight balanced TRS analog inputs and outputs, each input features a selectable -10 dB pad to accommodate hotter signals. The unit also includes dual ADAT optical inputs and outputs, supporting S/MUX for higher sample rates, and BNC word clock I/O for precise synchronization. Black Lion's proprietary Macro-MMC clocking technology ensures ultra-low jitter, resulting in exceptional clarity and detail in your recordings.
Features
16 Channels of AD/DA Conversion: Provides 8 analog TRS inputs and 8 analog TRS outputs, expanding your ADAT-compatible interface's connectivityHigh-Resolution Audio: Supports sample rates up to 192kHz at 24-bit depth, ensuring professional-grade sound qualityMacro MMC Clocking Technology: Features ultra-low jitter clocking for enhanced audio clarity and synchronization across connected devicesADAT and Word Clock I/O: Equipped with dual ADAT optical inputs and outputs, along with BNC word clock input and output, for seamless integration into various studio setupsAnalog Input Pads: Each analog input includes a -10dB pad to accommodate hotter signals without distortionBoutique Component Selection: Built with high-quality components from Nichicon, Vishay, and Wima, ensuring low noise and superior signal integrityFront Panel Metering: Features bright, multi-segment LED meters for each input and output, allowing for quick and accurate level monitoringFirmware Update via USB-C: Includes a USB-C port dedicated to firmware updates, ensuring the unit remains up-to-date with the latest enhancements
Specifications
Analog I/O: 8 balanced TRS inputs with -10 dB pads; 8 balanced TRS outputs.Digital I/O: 16 channels of ADAT (8-in, 8-out) supporting S/MUX for higher sample rates.Sample Rates: Supports 44.1, 48, 88.2, 96, 176.4, and 192 kHz.Clocking: Ultra-low jitter Macro-MMC word clocking; BNC word clock input and output.Construction: 1U rack-mountable metal enclosure; USB-C port for firmware updates.Additional Features: Eight-stage metering for each input and output; boutique components from Nichicon, Vishay, and Wima for high-quality signal integrity.Applications: Expands ADAT-compatible interfaces, allowing integration of external hardware processors, multi-channel recording, and analog summing.Power Supply: External 12V DC adapter included.Dimensions: Standard 19-inch rack width; 1.75 inches (1U) height.Weight: Approximately 5 lbs (2.27 kg).
