UPC/EAN #753459843345     MPN #REVOLUTION-14X16

$1849.00

Save 19.6%, MSRP $2300.00
Financing available
Free shipping in Canada. Conditions

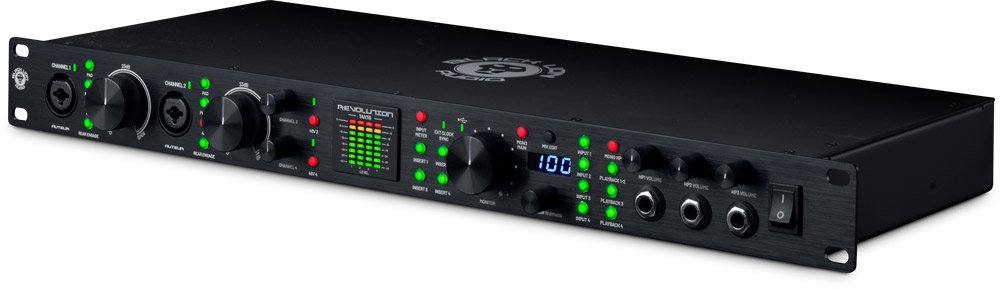

14-in / 16-out USB-C audio interface and word clock with ADAT, Auteur preamps, and headphone mixer



The Revolution 14x16 is a class-compliant, 14-in / 16-out USB-C audio interface. Its built-in Cinemag transformer-driven Auteur preamps let you add weight and color to your tracks, and the headphone mixer lets you tailor a headphone mix from both hardware inputs and software playback. When your needs grow, Revolution 14x16 grows with you " add eight channels of input and output over ADAT; add external hardware processors via 4 switchable send/returns; and sync your hardware devices via our patented Macro-MMC clock; treating your music to world-class clocking and low-noise conversion.
Full webtext
  • 14-in / 16-out USB-C audio interface and word clock with ADAT and Auteur preamps

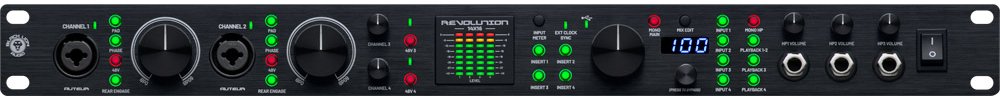

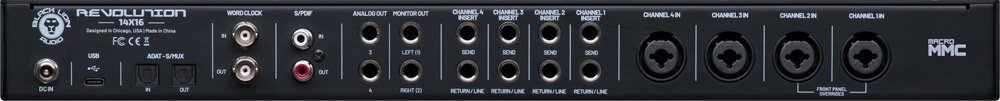

  • 4 preamps, 4 instrument-level (DI) inputs, 4 line-level Channel Insert/Returns, 3 stereo headphone outs, 2 stereo analog outs, S/PDIF I/O, ADAT, I/O and word clock I/O
  • Auteur preamps on channels 1 and 2 deliver clean, fast transient response at low gain settings and add heft and color when driven
  • Headphone mixer for custom headphone mix of physical inputs and software playback channels
  • Expandable with 8 additional inputs and outputs via ADAT
  • Modded out of the box " all of Black Lion Audio's famous interface mods are built-in
  • Can serve as a standalone 4-channel preamp without a computer
  • Independent +48v toggle on all XLR inputs
  • Incredible internal clocking with patented Macro-MMC technology

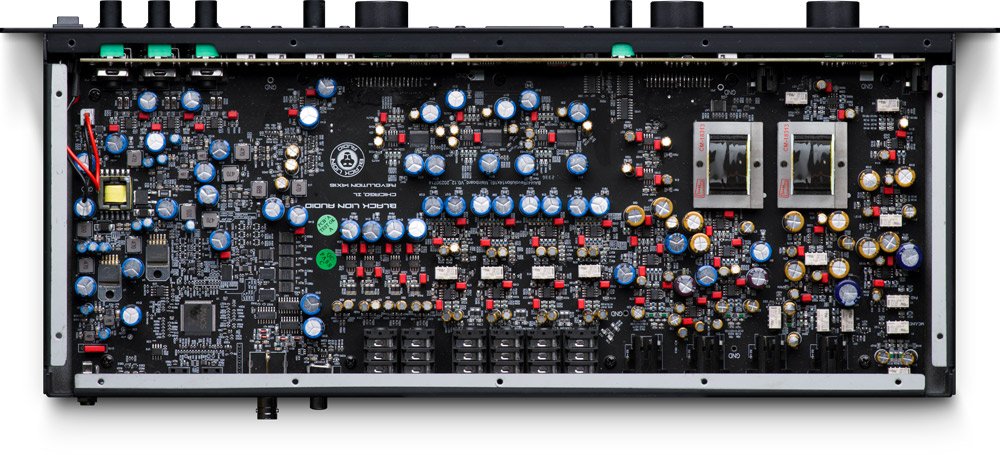

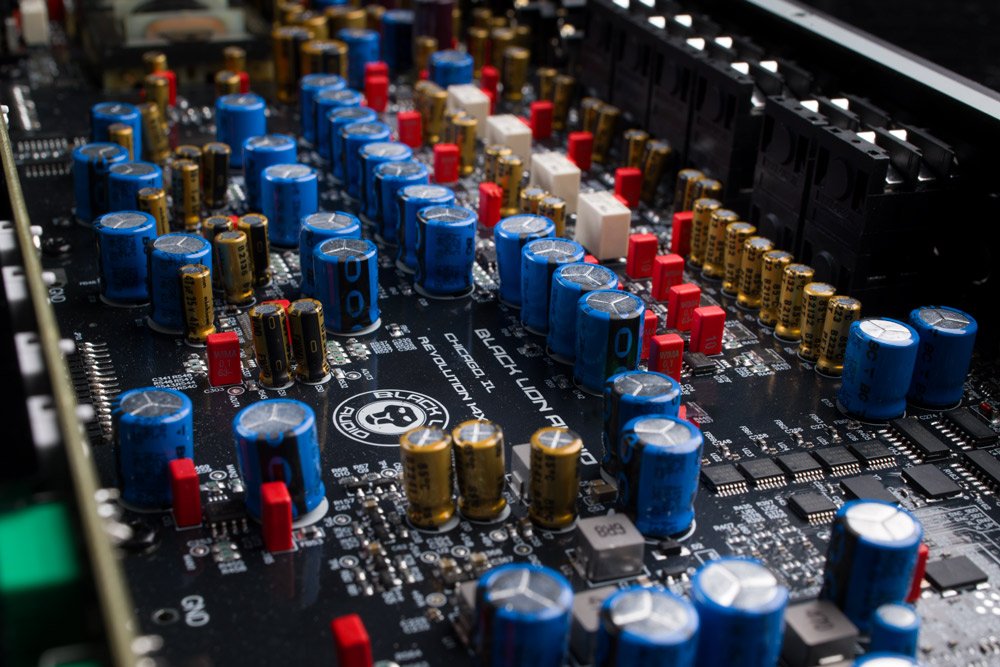

  • High-end Vishay, Nichicon, and Wima capacitors, thin film resistors, and high-end ICs for the best possible signal-to-noise ratio
  • Includes 90 days of Studio One Pro+ and additional plug-ins
  • All inputs and outputs are fully decoupled and balanced in a manner only found in the most premium audio equipment available
  • Internal "PG-i" technology reduces noise contamination from external equipment
  • Software mixer for Windows with virtual channels and Loopback capability lets you re-route system audio to your DAW or app of choice
  • All the software tools you need, included.
    The Revolution Software Suite covers all of your software needs so you can start creating from day one. You'll record straight into the award-winning Studio One, of course... and we've also included a ton of other valuable software:
  • PreSonus Studio Pro One+ (90 days) Recording and music production DAW, plus all the extras
  • Sonarworks SoundID Reference for Headphones: (90 days) Headphone calibration software
  • Audified GK Amplification 3 LE: Bass amp modeler of legendary Gallien-Krueger amps and cabs
  • Audified Mixchecker: Mix checking plug-in with playback device emulations
  • Psychic Modulation EchoMelt3: BPM-based modulation and echo
