Betso RF OCTOPUS
MPN #RF OCTOPUS
Compact antenna distribution system with low-noise amplification, wide frequency range, multiple outputs, and efficient signal management for wireless setups.
The BETSO RF OCTOPUS is a sophisticated antenna distribution system engineered to enhance the performance and reliability of wireless audio setups. It efficiently manages RF signals, ensuring optimal distribution to multiple receivers, which is crucial in complex production environments.
This system is designed to support a wide frequency range, accommodating various wireless devices and minimizing potential interference. Its robust construction and advanced filtering capabilities contribute to a stable and clear audio signal, essential for professional audio applications.
Features

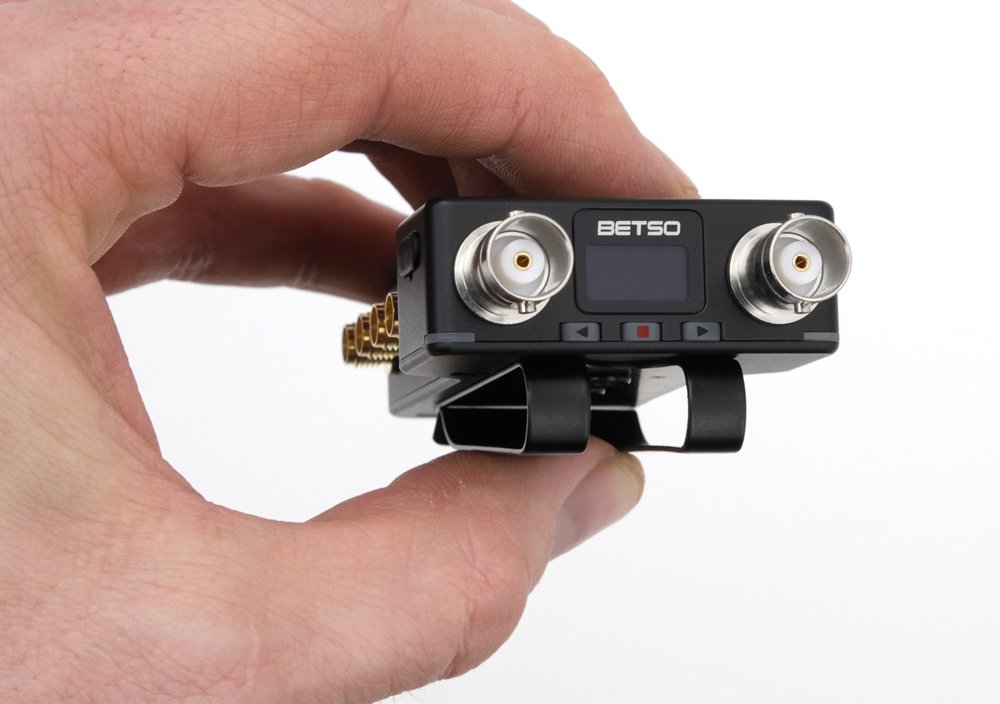

Versatile Multi-Channel Distribution: Distributes RF signals to multiple wireless receivers with precision and minimal signal loss.Broad Frequency Range: Compatible with a wide spectrum of wireless systems for maximum flexibility.Exceptional Signal Integrity: Designed to ensure stable and interference-free performance in demanding RF environments.Compact and Lightweight Design: Ideal for mobile setups or fixed installations requiring minimal space.Flexible Power Options: Low power consumption with multiple powering methods for convenience.
Perfect for professional broadcast, film, and live event productions requiring reliable and scalable RF signal distribution.
Specifications
Functionality: Distributes RF signal from a pair of antennas to up to four diversity receivers
Frequency range: 470 MHz to 850 MHz
RF gain: Adjustable from -9 dB to +18 dB
Noise figure: Less than 0.75 dB
Third-order intercept point (IP3): Greater than +34 dBm
Input filters attenuation:

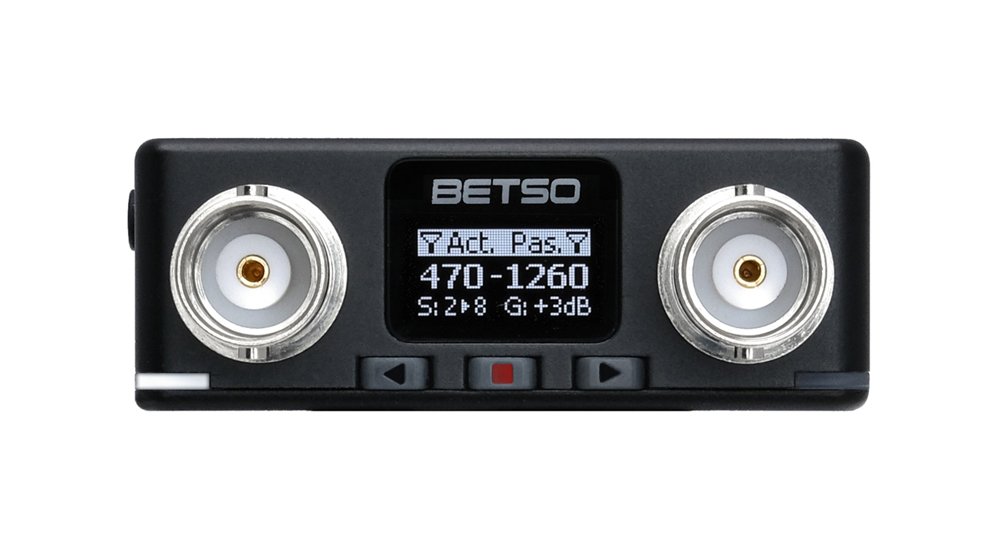

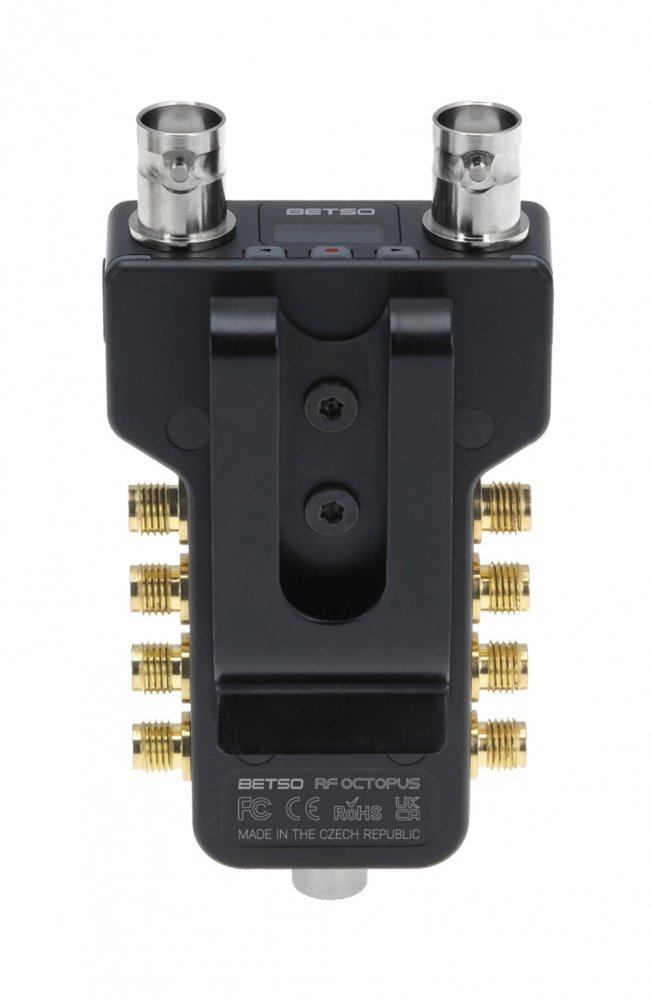

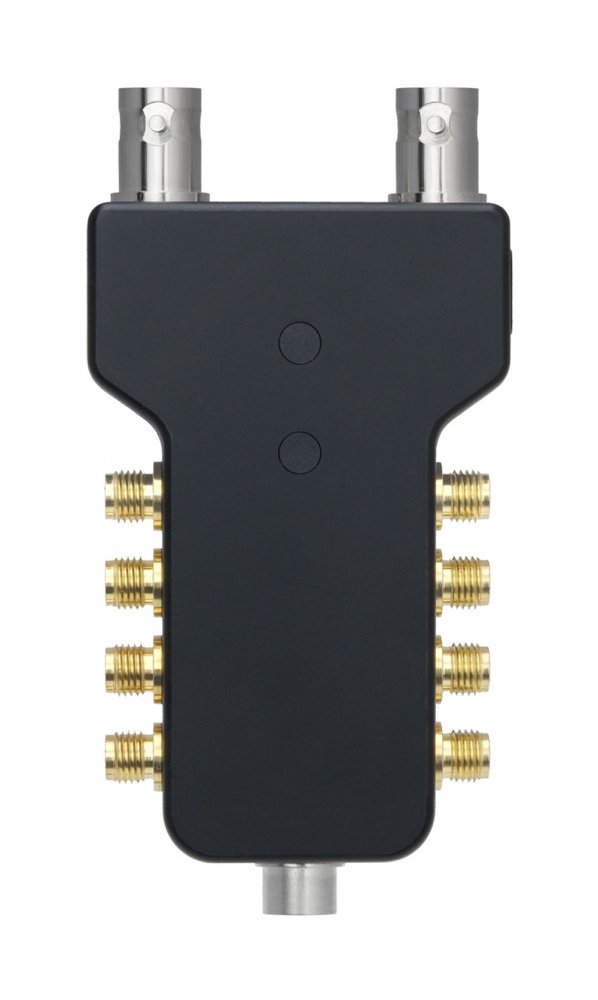

High attenuation below 450 MHz (e.g., -82 dB at 100 MHz)High attenuation above 870 MHz (e.g., -35 dB at 2.4 GHz)Antenna compatibility: Supports passive and active antennas with 12V DC bias for active antennasPowering:External DC input: 10"18VCurrent consumption: 350 mA at 12VConnectors:Antenna inputs: 2x BNCReceiver outputs: 8x BNC (4 pairs)DC input: 4-pin HiroseDC outputs: 4x 4-pin Hirose (for powering receivers)Display: OLED screen with adjustable brightnessDimensions: 218mm (W) x 44mm (H) x 150mm (D)Weight: Approximately 1.2 kg
