Beachtek DXA-PRE
UPC/EAN #8960280000980
MPN #DXA-PRE
Super compact preamplifier desigend for RED, ARRI and other cinema cameras. Has both balanced and unbalaced outputs. Built-in VU meter
Super compact, super tough and easily mountable Dual XLR Adapter with low-noise preamplifiers for cinema cameras. Simple, no fuss layout and features gives you everything you need to easily record cinema quality audio to your camera.

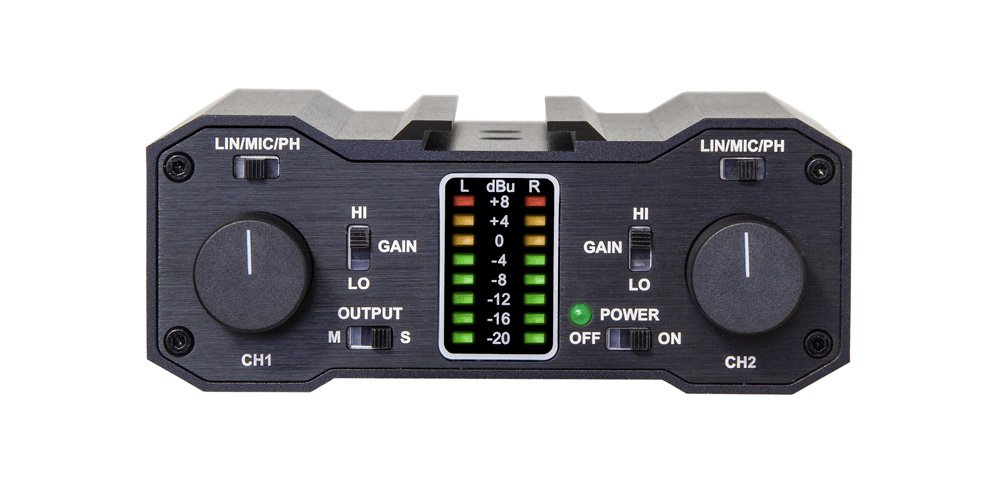

Easy to read VU Meter makes setting the ideal recording levels a snap. Has both balanced and unbalanced outputs to connect to wide variety of cameras. Includes the V-CLIK quick release plate to quickly snap the unit on or off your camera. Nothing could be easier to use or give you better audio than the DXA-PRE.
Features

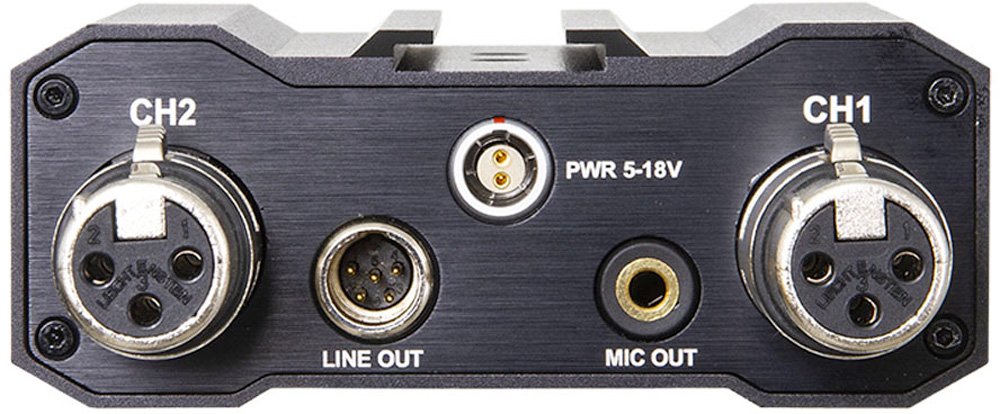

Phantom PowerDual GainTrim ControlsVersatile Mounting OptionsVU MeterLow-Noise PreamplifierMounting Shoes5-pin XLR OutputTiny and Light WeightTransformer Balanced Inputs2 x XLR InputsStereo Mini-Jack OutputBracketingQuick Release Mount
Specifications
Frequency Response
20Hz to 20kHz (+/- 1dB)
Gain
LINE OUT: Lo Gain: 40dB, Hi Gain: 60dB
MIC OUT: Lo Gain: 10dB, Hi Gain: 30dB
Dynamic Range
100dB
THD+N
Lo Gain: 0.013% (+4dBu output, 1kHz)
Hi Gain: 0.07% (+4dBu output, 1kHz)
Channel Separation
LO Gain: 85dB (+4dBu output, 1kHz)
HI Gain: 80dB (+4dBu output, 1kHz)
VU Meter
-20dBu to +8dBu in 4dB increments
Maximum Input Levels
Lo Gain: -13dBu (Mic input), 17dBu (Line input)
Hi Gain: -33dBu (Mic input), -3dBu (Line input)
Output Clipping Levels
Line Output +26dBu
Mic Output -4dBu
Powering
2-Pin 0B LEMO Jack (5-18V, 120mA)
Pin 1 = (-), Pin 2 = (+)
Dimensions
93.6mm x 80mm x 37mm (3.69? x 3.15? x 1.46?)
Weight
346g (12 ounces)
