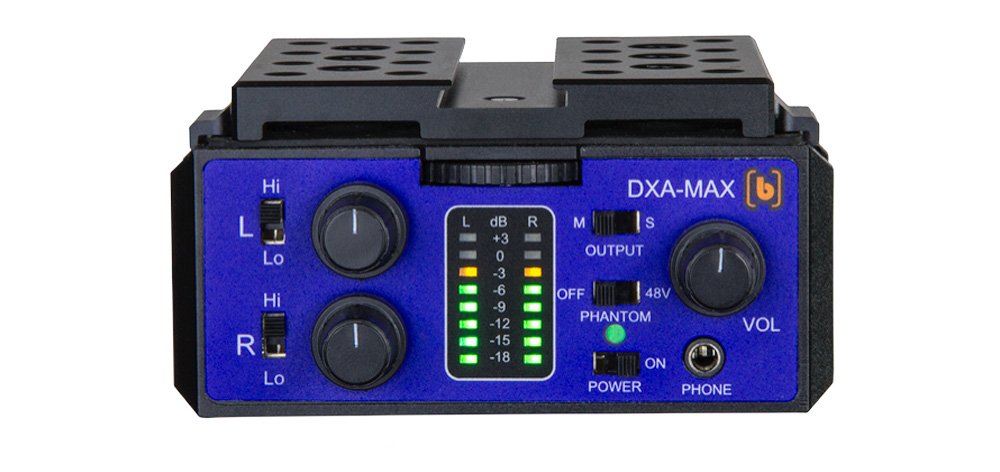

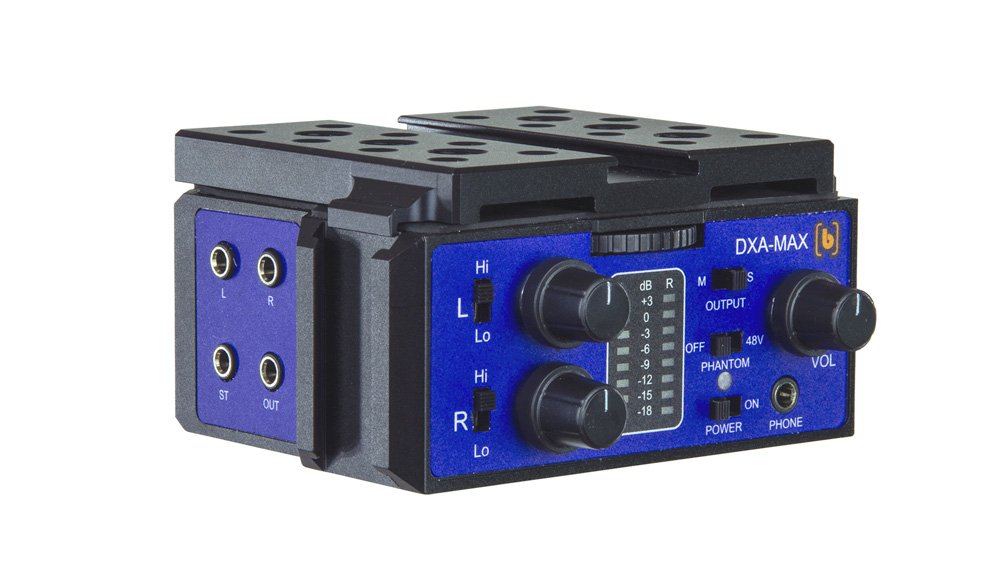

Beachtek DXA-MAX
UPC/EAN #8960280000973
MPN #DXA-MAX
Two-channel active adapter with powerful low-noise preamplifiers, level controls, headphone monitoring, phantom and plug-in power, cheese plate plus a VU-Meter

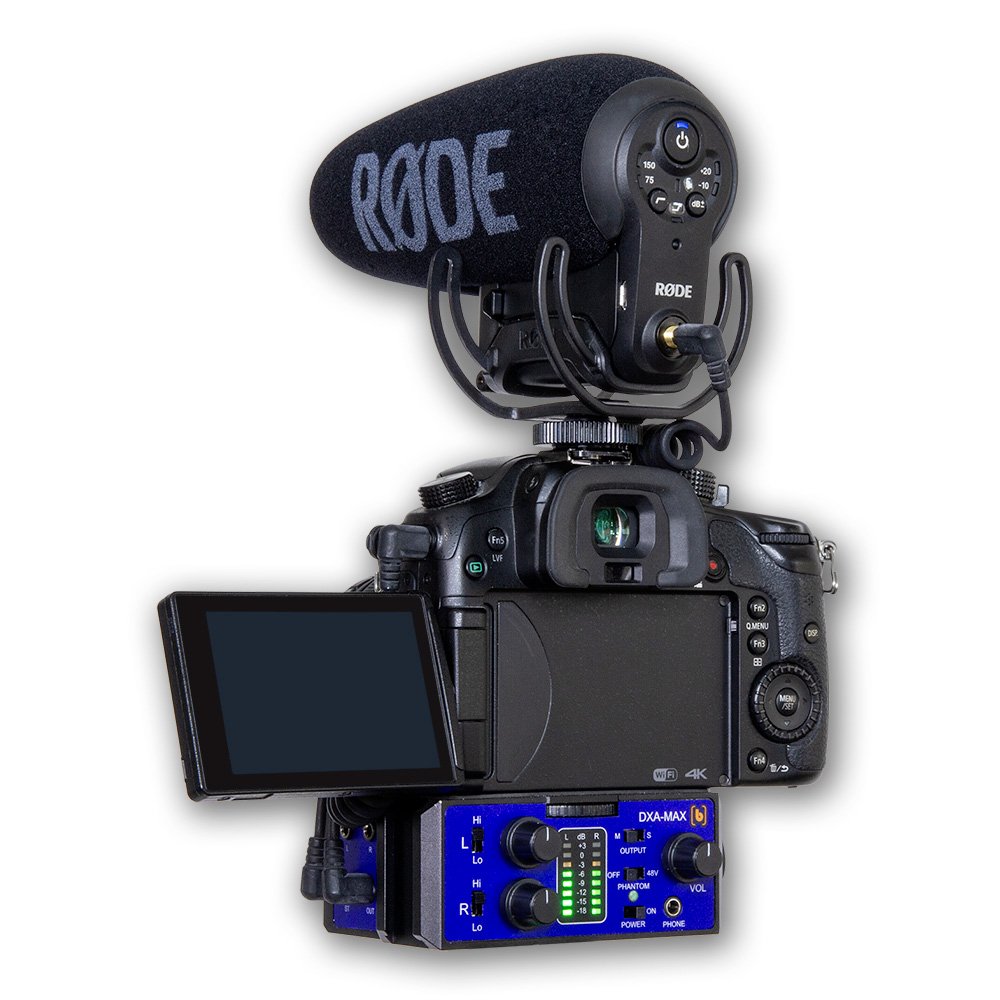

The DXA-MAX is our premium adapter to record high quality audio directly to your camera from virtually any source " no syncing required. Superb operation and ease of use make capturing pro audio a snap. The built-in VU meter makes it very easy to set the precise recording level for the best audio performance. The compact size makes it ideal for use with the latest mirrorless cameras. Can be mounted over or under the camera. Built-in LiPO battery powers the adapter for up to 10 hours.
Features
Trim ControlVersatile Mounting OptionsVU MeterLow-Noise PreamplifierHeadphone SupportMounting Shoes1 x XLR input2 x Mono Mini-Jack Inputs1 x Stereo Mini-Jack InputCheese PlateBuilt-in LiPo BatteryBracketing
Specifications
Maximum Input Levels
LO gain -14dBu
HI gain) -29dBu
Output Level
-26dBu at 0dB
Frequency Response
20Hz to 20kHz (+/- 0.5dB)
THD + N
Less than 0.03% @ 1kHz, -30dBu input
S/N Ratio
85dB @ 1Khz, -30dBu input
Gain
LO +15dB
HI +30dB
Phantom Power
Regulated 48 volt power
Current to 14mA (direct short)
Plug-in Power
3.5 volts on all mini-jack mic inputs
Battery Type
Built-in 3.7V 2400mAH LiPo
Battery Duration
10 hours typical (no phantom)
Dimensions
4" x 3" x 1.5" (L x W x H)
(102 mm x 76 mm x 38 mm)
Weight
14 oz. (0.4 kg)
