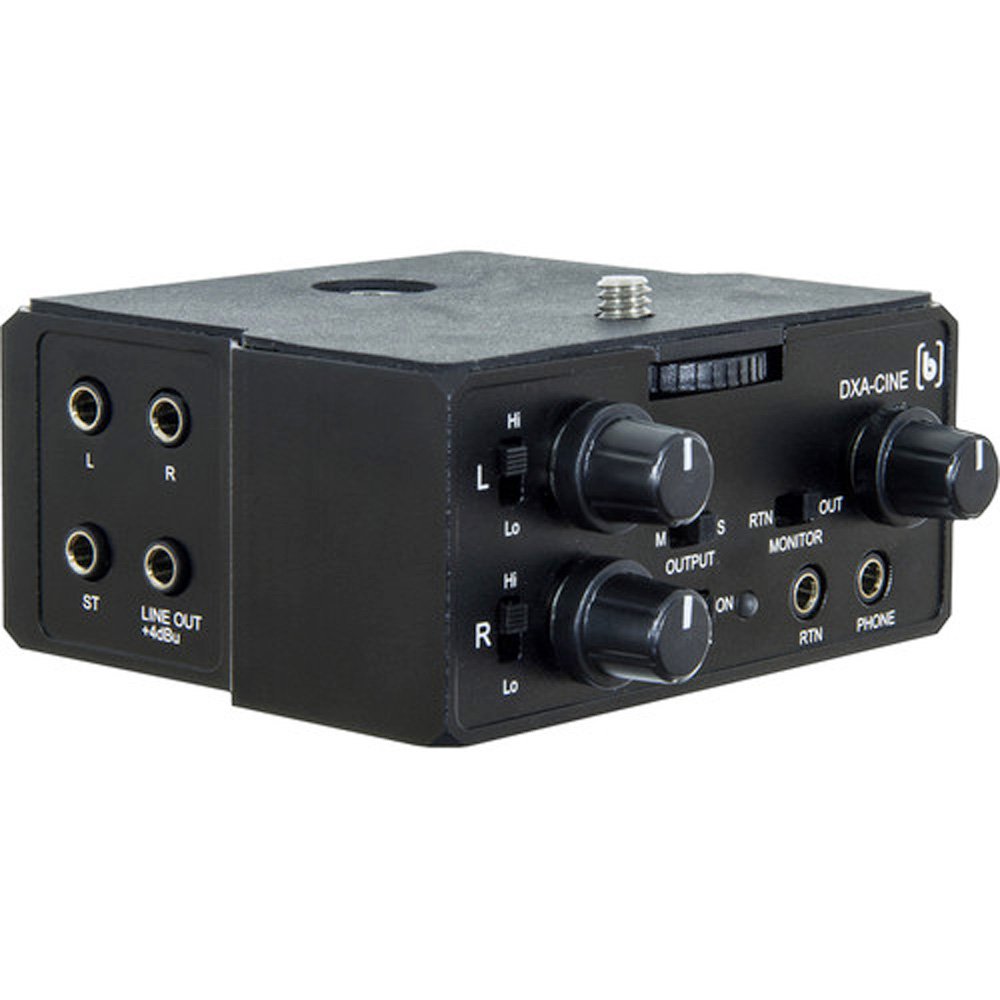

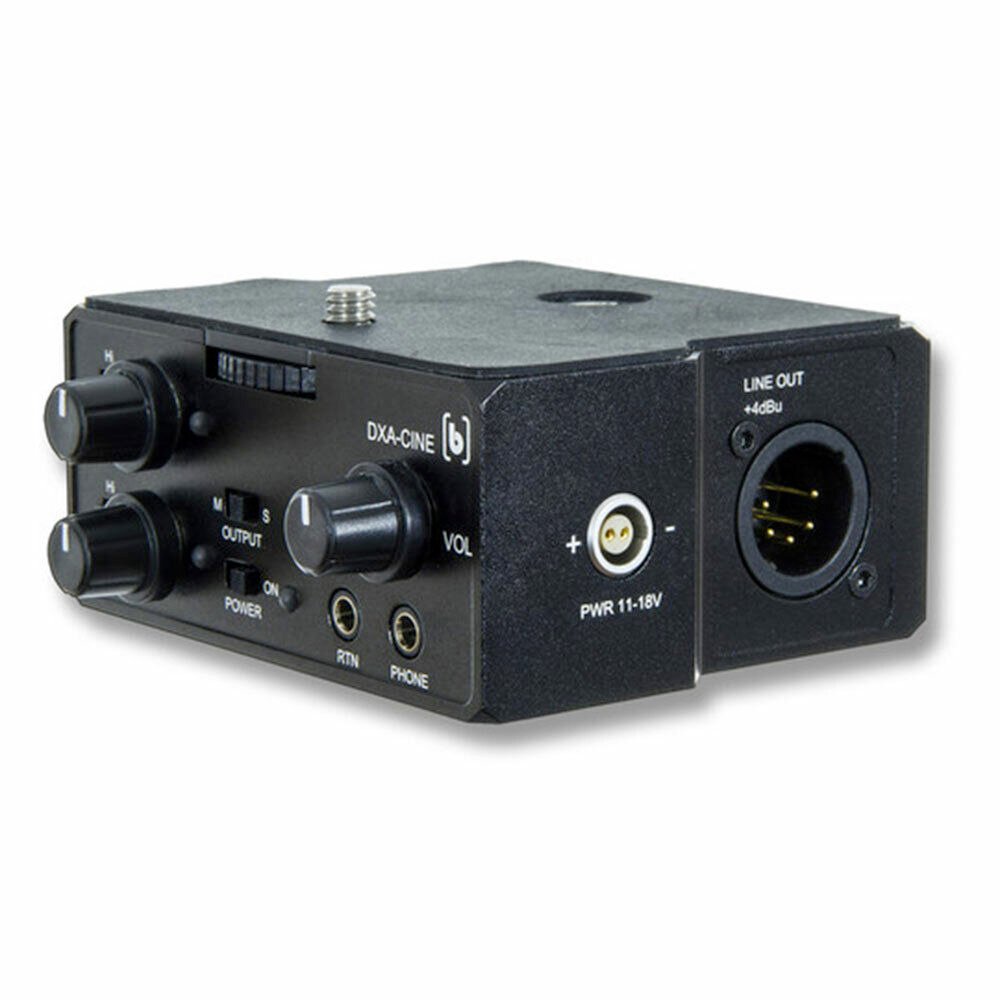

Beachtek DXA-CINE
UPC/EAN #8960280000942
MPN #DXA-CINE
Compact preamplifier with mini-jack inputs for cinema cameras. Provides headphone monitoring and Low/Good/Over level indicators
Record high quality audio directly to your cinema camera " no syncing required. The ultra low-noise preamplifiers provide exceptional performance with 60dB of gain and over 100dB in dynamic range. Ideal for the RED DSCM2, ARRI ALEXA Mini or new ARRI ALEXA Mini LF cameras. Compact chassis easily mounts to camera, cage or rails. Constructed of top quality components for outstanding reliability and durability. Externally powered via a 2-pin LEMO connector.
Features
Trim ControlVersatile Mounting OptionsLow-Noise PreamplifierHeadphone Support2 x Mono Mini-Jack Inputs1 x Stereo Mini-Jack Input5-pin XLR OutputStereo Mini-Jack OutputLevel IndicatorsCheese Plate
Specifications
Maximum Input Levels
LO gain -15dBu
HI gain -35dBu
Output Level
+4dBu when level indicators change to red Output Clipping Level +25dBu (XLR), +21dBu (3.5mm)
Frequency Response
20Hz to 20kHz (+/- 0.5dB) THD+N
Lo Gain: 0.013% (+4dBu output, 1kHz)
Hi Gain: 0.08% (+4dBu output, 1kHz)
Dynamic Range
100dB
Gain
LO +40dB
HI +60dB
Plug-in Power
3.5 volts on all mini-jack mic inputs
Level Indicators
Green: -40dBu to -16dBu (low)
Yellow: -16dBu to +4dBu (normal)
Red: +4dBu (over)
External Power
11-18 volt via 2-pin Lemo Pin 1 = (-), Pin 2 = (+)
Dimensions
3.54? x 3? x 1.57? (L x W x H) (90 mm x 76 mm x 40 mm)
Weight
10.2 oz. (0.29 kg)
