BAE 500C
MPN #500C

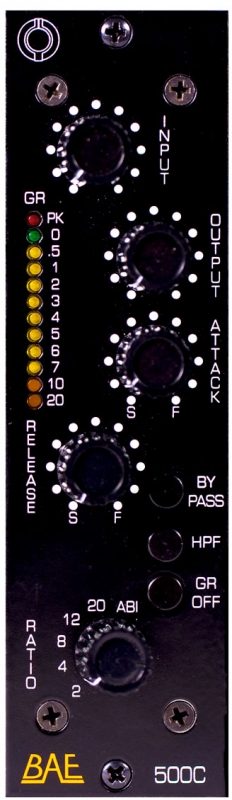

Based on the design of studio staple FET compressors of the '60s and '70s heard on countless hit records, the 500C features controls for input and output gain, plus the four selectable, time-honored compression rations of 4:1, 8:1, 12:1, and 20:1.
In addition to taming peaks, its premium components and classic circuit design add highly desireable analog warmth to your signal, making it an all-star for everything from drums to bass to vocals. Like all BAE Audio gear, the 500C is hand-wired in California to ensure the highest possible quality control.
Features
FET gain reductionThree 2520 style opampsTransformer coupled outputFeedback style peak limiterSC HPFHard bypassGain Reduction on/offComp ratios: 2:1, 4:1, 8:1, 12:1, 20:1, ABIABI All Buttons InFully enclosedHigh quality components throughout
Specifications
Max Input Before Clip:
+27dBu
Noise:
-82dB (+4dBu input, 1KHz, A-weighted, GR off)
THD+N:
0.15% (+4dBu input, 1KHz, A-weighted, GR off)
Frequency Response:
+0.3dB / -0dB (10-22KHz)
SC HPF:
6dB/octave @ 125Hz
Current Draw:
Approx 120mA/Rail
