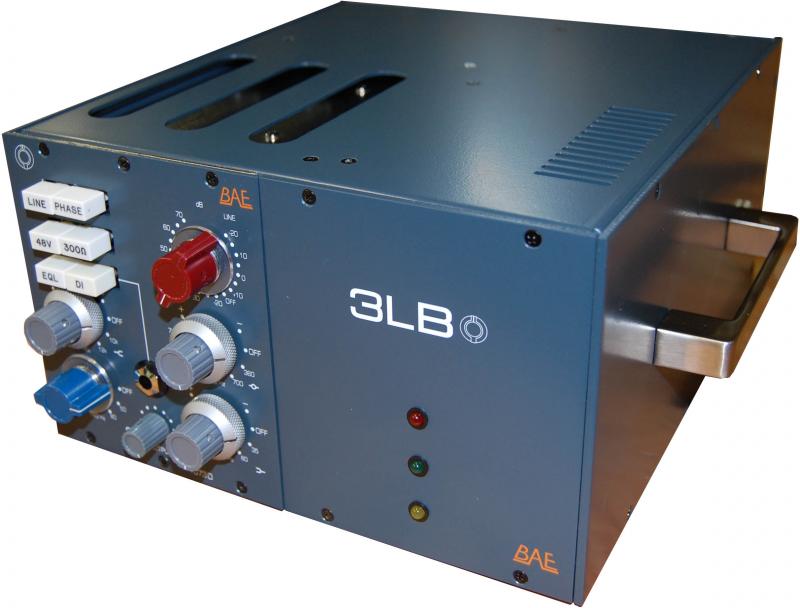

The BAE 3LB is a 3 channel lunchbox with built in psu that will house 3 modules.
The 3LB incorporates 3 slots for 500 series modules or the 1073D in a lunchbox.
Features
Solid steel chassis.
Inputs and outputs on either side.
An overbuilt power supply for third party modules.
The same hand-wired construction that BAE is known for.
Specifications
Power Requirements
115/230 VAC, 36W Power Output
+/- 16 VDC 1.6A (0.8A/per Rail)
48VDC .1A Weight (Empty)
6 LBS / 2.72 KG Dimensions (in Inches)
5.3W x 4L x 11D
