BAE 1073 - Mic Pre/EQ 19'' Rackmount Pair with PSU
MPN #PAIR 1073WPS

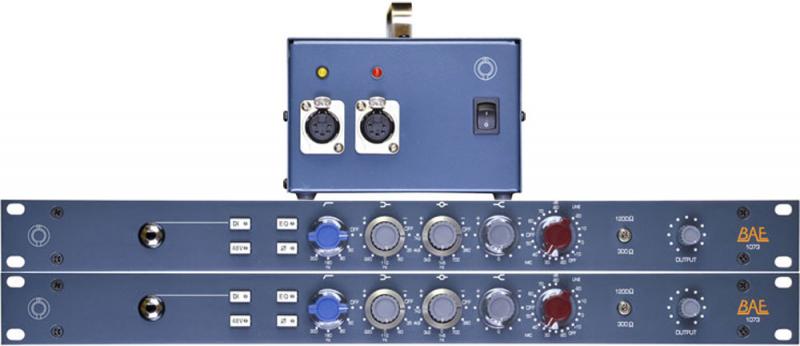

Pair of BAE 1073 Preamp/EQ made from an authentic reproduction of a Neve 1073 module. Includes power supply.
The 1073 preamp yields a really fat sound. It seems to add subharmonics to the low end which makes the bottom end sound huge. It smoothes the top end which gives the highs a silky sheen. As well the 1073 compresses transients a little bit. It is a smooth, fat., larger than life sound. An added bonus is to use the DI inputs to fatten samples, synths and mixes since the DI can handle line levels.
The 1073 equalizer is very broadbanded and musical. It has a hi-pass filter with four frequencies- 50 Hz, 80 Hz, 160 Hz and 300 Hz. The low frequency band is shelving and has four frequencies - 35 Hz, 60 Hz, 110 Hz and 220 Hz. The low end of this equalizer is so tight that you can boost 220 Hz and not muddy up the sound. The mid band has six frequencies - 360 Hz, 720 Hz, 1.6 kHz, 3.2 kHz, 4.8 kHz and 7.2 kHz. The bandwidth is broad so you can boost or cut a lot without making things sound processed or unnatural. The hi band is shelving and is fixed at 12 kHz. It is smooth and silky and a little goes a long way.
Features
Made from an authentic reproduction of a Neve 1073 moduleHi-Z direct inputs on the front panel48v phantom power on the front panelBalanced mic input, line input and balanced +4 outputr from XLR connectors on the rear of the moduleOutput level control functions as fader when going straight to tapeModules are mounted horizontally and take up only one rack unit eachOversize power supply provides four times the current needed for optimum sound quality
Specifications
Frequency Response
10Hz to -3dB at 55kHz
3 Band Equaliser
HF: +/-16dB fixed frequency shelving at 12kHz
LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
MF: +/-18dB peaking, fixed 'Q' with, selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz
High Pass Filter
50Hz, 80Hz, 160Hz & 300Hz
Mic Input Impedance
1200/300 ohms
Line Input Impedance
10k ohms
DI Input Impedance
150k ohms
Output Impedance
35 ohms
Common Mode Rejection Ratio
100dB min @ 60Hz
Maximum Output Level
+27.4 dBu @ 600
Power Requirements
115/230 VAC, 28W
Gain dB
0 to 80 dB
Equivalent Input Noise
-110 dBu; Unweighted 300kHz Bandwidth
Weight (Single/Dual)
6 LBS / 2.72 KG
10 LBS / 4.54 KG
Dimensions in Inches (Module/Rackmount)
45 mm W x 8.75 inches H x 10.5 inches D
19W x 1.75L x 9D
