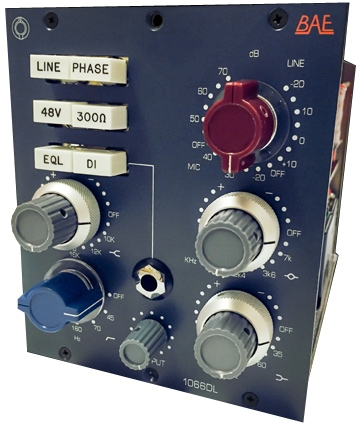

BAE 1066DL
MPN #1066DL
The 1066DL is based on the classic 1066, which features the same mic-line pre-amplification stage as the 1073, but features different frequency selections in its EQ.
The available frequencies on the 1066 are especially well suited to guitar applications because of its unique midrange.
The 1066DL is completely hand-wired using Carnhill (St. Ives) transformers and has the same mic-line pre-amp as the 1073, with the exception that the 1066DL adds a few different frequencies to your pallet.
This unit is popular among guitarists for having a unique mid-range. The original 1066 only had a 10k shelving but this unit offers additional frequencies: 10k Hz,12k Hz,16k Hz, 20k Hz and 24k Hz.
Features
High Frequency: +/-16dB shelving with selectable frequencies of 10kHz, 12kHz, 16kHz, 20kHz and 24kHz.Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz &220Hz.Mid Range: +/-16dB peaking with switchable selectable centre frequencies of 700Hz, 1.2kHz, 2.4kHz, 3kHz, 7kHzHigh Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz.EQ Button: Switches the equaliser on or offPhase Button: 180
Specifications
Frequency Response:
10Hz to -3dB at 55kHz
3 Band Equaliser:
HF:+/-16dB fixed frequency shelving at 10kHz,12kHz, 16kHz, 20kHz and 24kHz
LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
MF: +/-16dB peaking with switchable selectable centre frequencies of 700Hz, 1.2kHz, 2.4kHz, 3kHz, 7kHz
High Pass Filter:
45Hz, 70Hz, 160Hz & 360Hz
Mic Input Impedance:
1200/300 ohms
Line Input Impedance:
10k ohms
DI Input Impedance:
150k ohms
Output Impedance:
65 ohms
Common Mode Rejection Ratio:
100dB min @ 60Hz
Maximum Output Level:
+27.4 dBu @ 600
Power Requirements:
115/230 VAC, 28W
Gain dB:
0 to 80 dB
Equivalent Input Noise:
-110 dBu; Unweighted 300kHz Bandwidth
Weight:
6 LBS / 2.72 KG
Dimensions in Inches:
45 mm W x 8.75 inches H x 10.5 inches D
