Stereo studio reference amplifier with 200W/channel (8 ohms), convection-cooled chassis

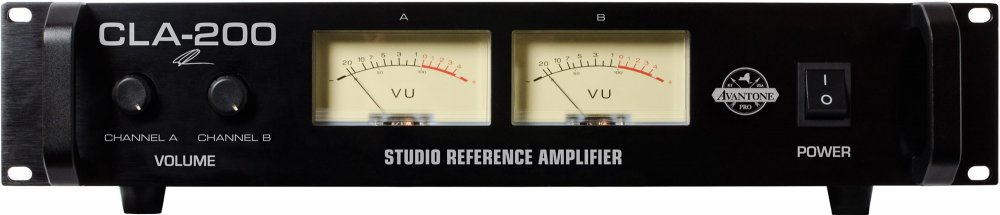

The Avantone Pro CLA-200 Studio Reference Amplifier is a classically designed Class A/B amplifier. We took particular care to create an amplifier in the traditional studio style, with generous VU meters, high quality Japanese components and a serious toroidal transformer linear power supply. In a standard 2U rack mount chassis, this amplifier can generate over 200 watts per channel into an 8 ohm load, making it perfect for medium to large speakers in a studio environment. The CLA200 is convection cooled - no fan noise, so it can be used in the same room as the monitors.
The CLA-200 was designed to be paired with the CLA-10 studio monitors, but it can be used with just about any demanding speaker load. Very low distortion, steady performance under harsh conditions, and an open and transparent sound make this an obvious choice for discerning studios.
The Avantone Pro CLA-200 Studio Reference Amplifier is a dynamic, high output, high resolution, full-range system built the old school way. We included no-compromise components in a 2U convection cooled chassis to complement our CLA-10 Studio Reference Monitors. Of course, it can be used with any passive studio monitor requiring serious dynamic range.
Zero fan noise
The CLA-200 Studio Reference Amplifier is designed to be used in a studio environment requiring high power output with no fan noise. Under testing, it delivers a powerful 208 watts into 8 ohms and can run at one third power without thermal fault. The CLA-200 has zero fan noise, as it's convection cooled - which makes it perfectly suited for control room installation.
Frequency Response: 20Hz-20kHz +/- 0.5dB
200W at 8 ohms
300W at 4 ohms
500W bridged into 8 ohms
Signal to Noise: >94dB
Input Impedance: (Balanced) 20K (Unbalanced) 10k
Damping Factor (100Hz, 8): 250
Signal to Noise Ratio (A Weighted): >103dB
Amplifier: Class AB
Slew rate (at 1KHz): 28V/us
Input Sensitivity (1KHz): 0.775V (0dBU)
Total Harmonic Distortion (1KHz): 0.1%
Intermodulation distortion (at 10% rated power 1KHz): 0.1%
8 Stereo Power (1KHz): 200W
4 Stereo Power (1KHz): 300W
8 Bridge Power (1KHz): 500W
Cabinet Dimensions: 19"w x 18"d x 3.5"h 30.4 lbs
Weight: 20kg (44lb)
