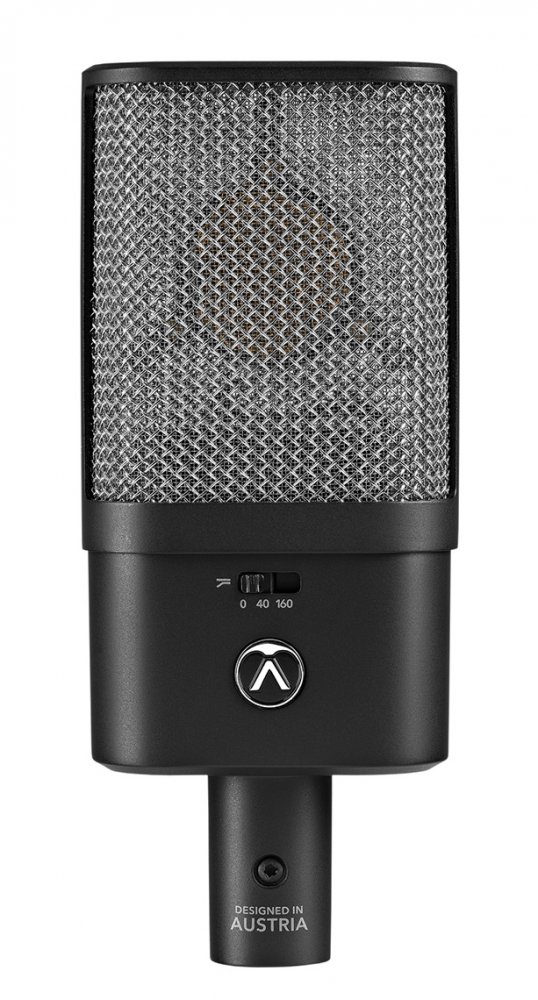

Austrian Audio OC16 Studio Set

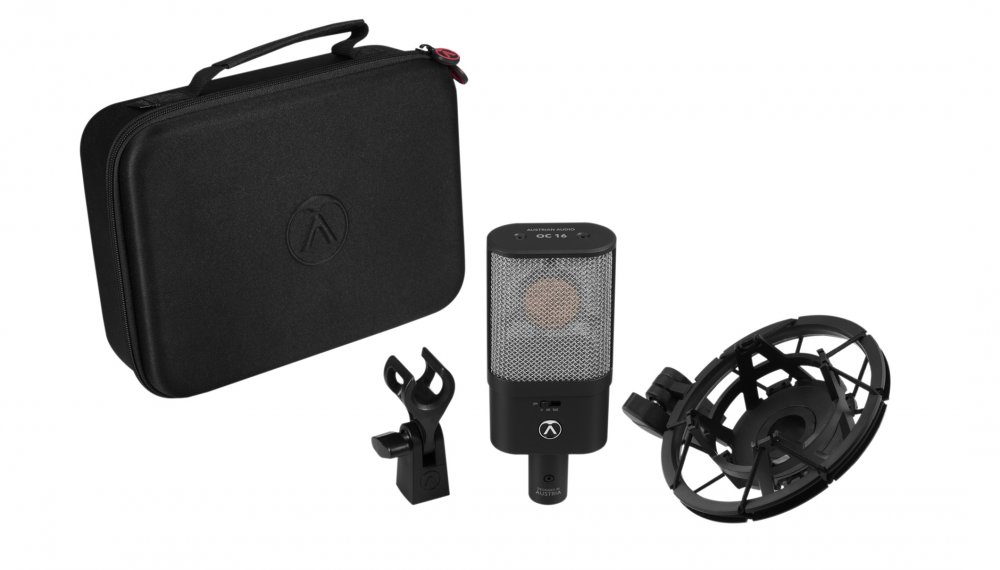

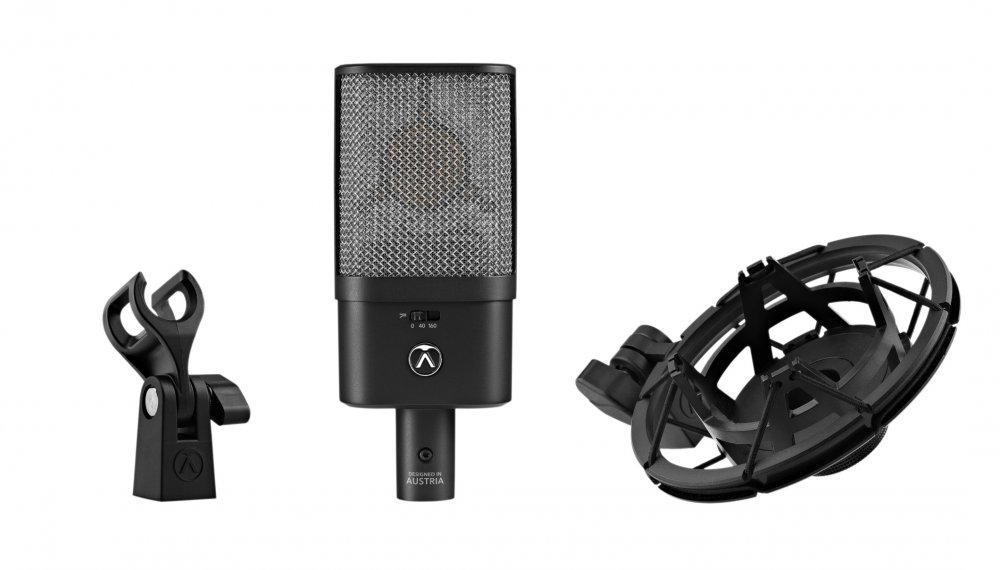

Cardioid pattern precision condenser microphone with shockmount and case
Audio Excellence On A Budget
With the OC16, Austrian Audio introduces a brand-new microphone in the ?Open Condenser? large-diaphragm series equipped with Open Acoustics technology.
The transparent and natural sound of OC microphones, which has been highly praised by the press and users, is the result of the combination of the patented CKR capsule and the ?Open Acoustics? design approach developed by Austrian Audio.
Equipped with the handmade in Vienna CKR6 capsule, the OC16 is an extremely flexible all-rounder and can be used on a wide variety of instruments: From drums to electric and acoustic guitars, pianos, wind and string instruments to vocals.
Handcrafted CKR6 ceramic capsule
handmade in Vienna, like the CKR12 capsule, but with single diaphragm
Metal housing, cap, and grille
High precision cardioid pattern
Switchable high pass filter
40 Hz (2nd order), 160 Hz (2nd order)
Directional characteristics: Single
Impedance: 275 ?
Polar pattern: Cardioid
Load impedance: > 1 k?
Frequency range: 20 Hz - 20 kHz
Analog Low Cut filter: 40 Hz, 160 Hz
Supply voltage: 48 V (< 2.2mA)
Sensitivity: 11 mV/Pa
Main Connector: XLR 3 pin
Equivalent noise level: 14 dB SPL (A)
Max SPL: 148 dB SPL
Dimensions: 157 x 66 x 34 mm
Weight: 335 g
