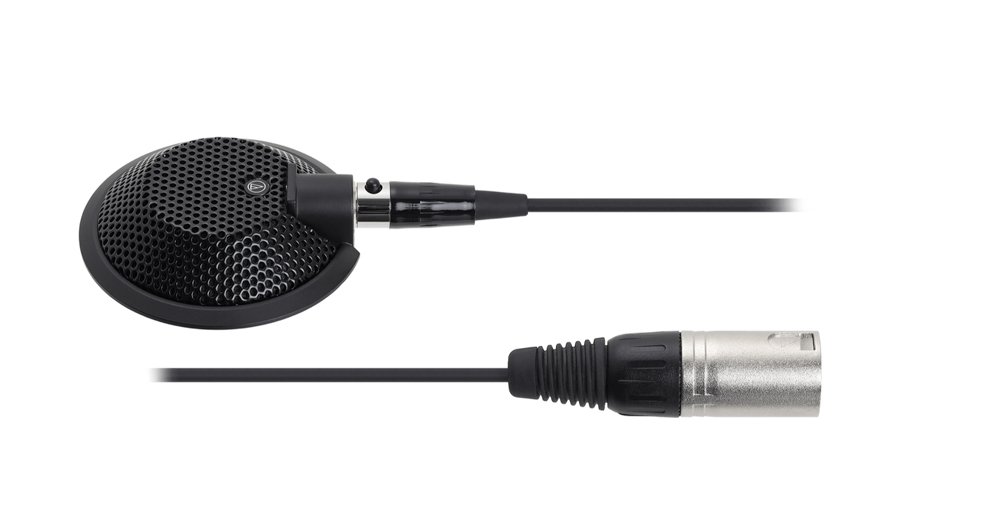

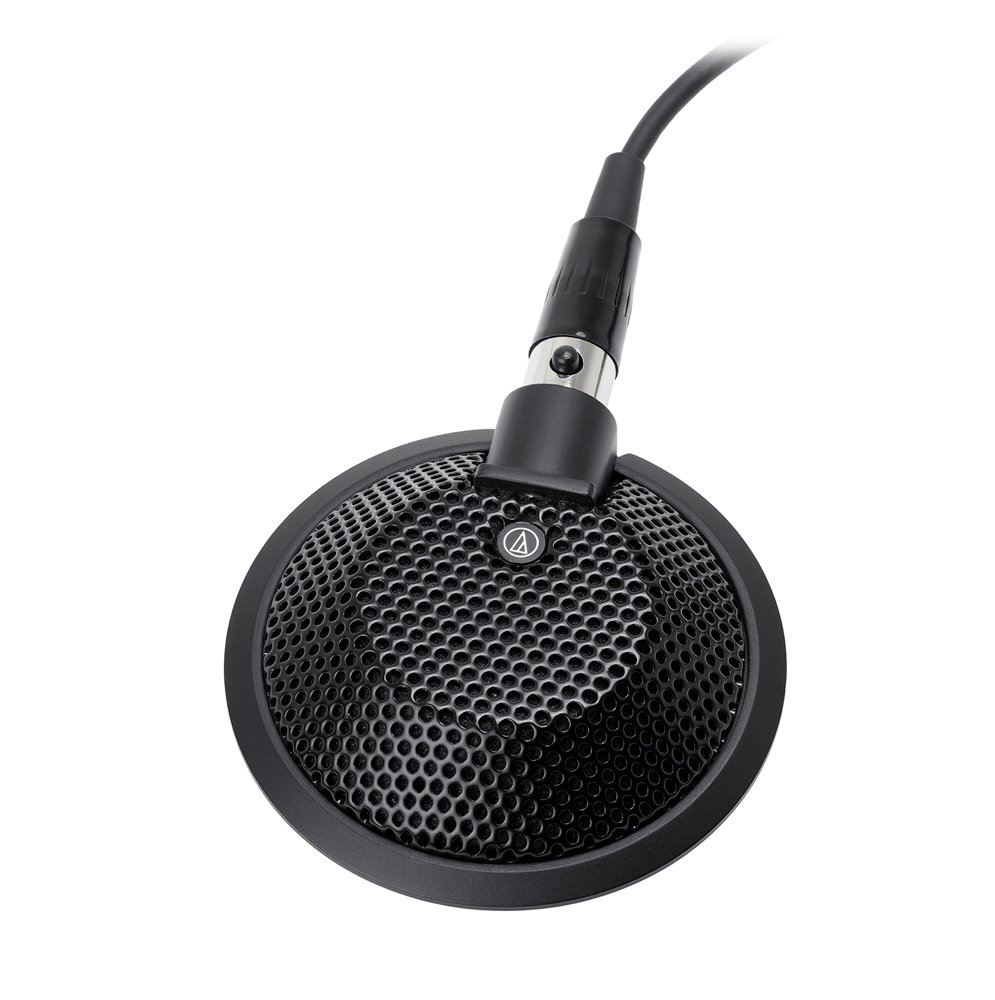

The U841R delivers exceptionally intelligible audio reproduction in a super-compact, low-profile design. Equipped with UniGuard RFI-shielding technology, this omnidirectional condenser boundary microphone is designed for clear, highly intelligible sound quality in surface-mount applications. The phantom-powered U841R is equipped with self-contained electronics, eliminating the need for an external power module.
Caractéristiques
Designed for surface-mount applications where highly intelligible sound quality is required
Small-diameter omnidirectional capsule near boundary eliminates phase distortion and delivers clear, high-output performance
Superior off-axis rejection for maximum gain before feedback
UniGuard RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
Self-contained electronics eliminate need for external power module
Heavy die-cast case and non-slip silicon foam bottom pads minimize coupling of surface vibration to the microphone
Low-profile design with low-reflectance finish for minimum visibility
Spécifications
Microphones
Element: Fixed-charge back plate, permanently polarized condenser
Polar Pattern: Omnidirectional in hemisphere above mounting surface
Frequency Response: 40-20,000 Hz
Open Circuit Sensitivity: "35 dB (17.7 mV) re 1V at 1 Pa
Maximum Input Sound Level: 130 dB, 1 kHz at 1% T.H.D.
