Audio Technica BP4073
UPC/EAN #4961310104023
MPN #BP4073

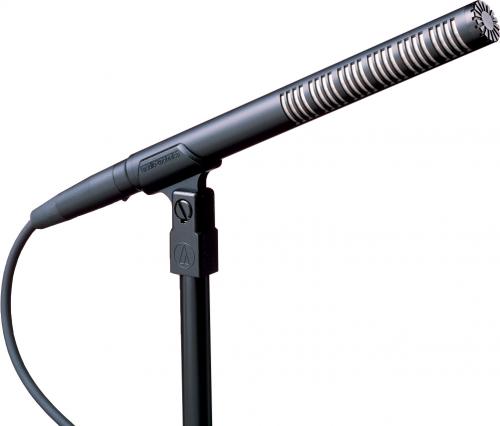

The Audio Technica BP4073 is a Line plus Gradient Condenser Microphone. Direct-coupled, balanced output ensures a clean signal even in high-output conditions.
With an overall length of just 9.17" and weight of just 3.5 oz, this microphone adds virtually no heft to the end of a fish pole or the top of a minicam. Through the use of an innovative Audio-Technica design, the interference tube of the BP4073 provides a narrow acceptance angle, effective for long-distance pickup. The highly directional mics offer low self-noise and are fully RoHS-compliant - free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS).
Features
Designed for critical long-distance pickup in broadcasting, film/TV production and theater sound reinforcement applicationsDirect-coupled, balanced output ensures a clean signal even in high-output conditionsExclusive acoustic design provides same directivity as mics up to 50% longerSwitchable 150 Hz hi-pass filterRugged housing made of lightweight structural-grade aluminum alloy
Specifications
ELEMENT : Externally polarized (DC bias) condenserPOLAR PATTERN : Line + gradientFREQUENCY RESPONSE : 30-20,000 HzLOW FREQUENCY ROLL-OFF : 150 Hz, 12 dB/octaveOPEN CIRCUIT SENSITIVITY : -23 dB (70.8 mV) re 1V at 1 PaIMPEDANCE : 100 ohmsMAXIMUM INPUT SOUND LEVEL : 126 dB SPL, 1 kHz at 1% T.H.D.NOISE : 14 dB SPLDYNAMIC RANGE (typical) : 112 dB, 1 kHz at Max SPLSIGNAL-TO-NOISE RATIO : 80 dB, 1 kHz at 1 PaPHANTOM POWER REQUIREMENTS : 11-52V DC, 3.2 mA typicalSWITCH : Flat, roll-offWEIGHT : 4.0 oz (114 g)DIMENSIONS : 9.13" (232.0 mm) long, 0.83" (21.0 mm) diameterOUTPUT CONNECTOR : Integral 3-pin XLRM-typeACCESSORIES FURNISHED : AT8405a stand clamp for 5/8"-27 threaded stands; AT8134 windscreen; protective carrying caseAUDIO-TECHNICA CASE STYLE : SG2
