Audio Technica ATM-DRUM4
UPC/EAN #042005197057
MPN #ATM-DRUM4
The ATM-DRUM4 Drum Pack includes a core selection of four microphones specifically engineered for drum applications.
With ATM Series mics for kick, snare and overheads, the ATM-DRUM4 pack has everything you need to professionally mike drums in small clubs, churches and other controlled environments, and for home recording applications.

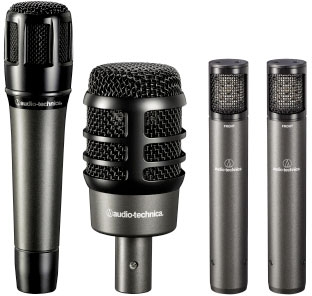

All four of the microphones in the pack - one ATM250 hypercardioid kick drum mic, one ATM650 hypercardioid snare mic, and two ATM450 cardioid overhead mics - feature low-profile design for minimum visibility and versatile placement options around the drum kit. They are engineered to handle fast transients and high SPLs, and deliver superior off-axis rejection.

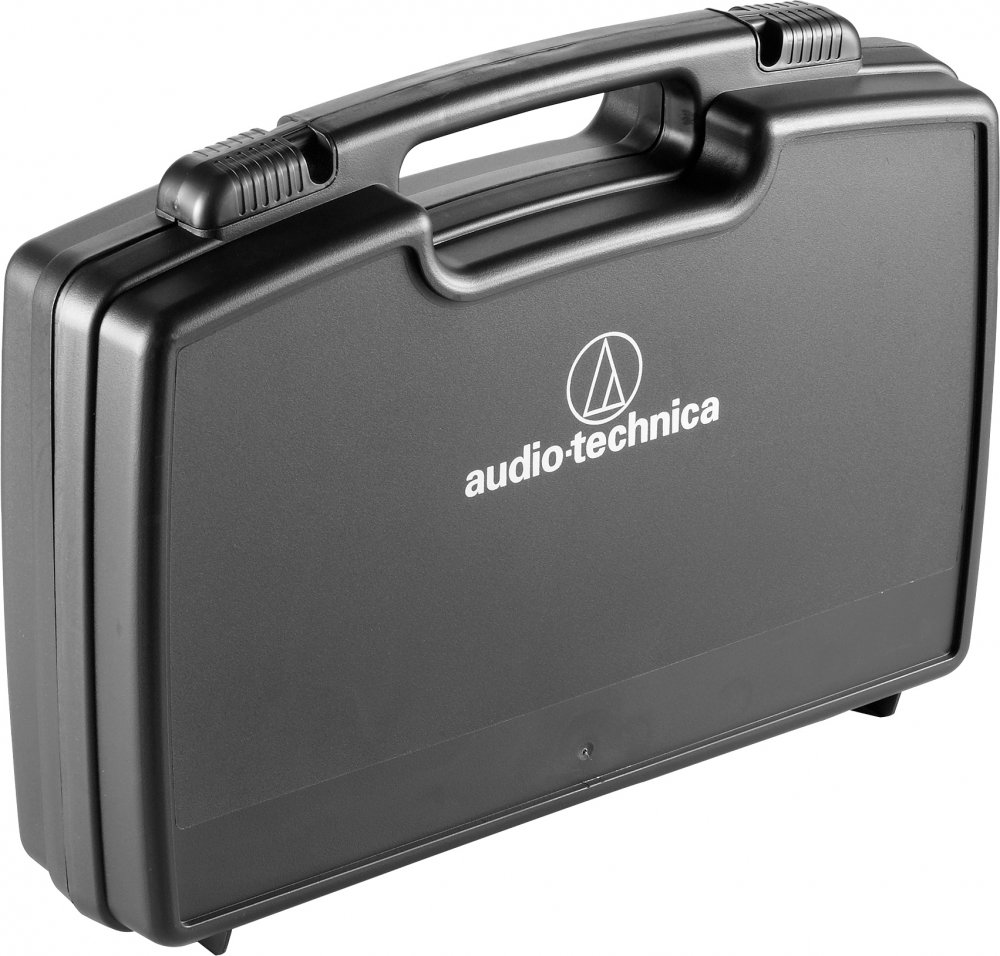

Also included in the package are the specified clamps for each microphone, four 5/8"-27 to 3/8"-16 threaded adapters, and a hard carrying case with a die-cut foam interior to hold all microphones and accessories.
Features
ATM250 Hypercardioid Dynamic Instrument Microphone (1 included)
Tailored for use on kick drumsHypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound sourceDurable, proven performance for professional applicationsHi-ENERGY neodymium magnet for improved output and transient responseSuperior off-axis rejection for maximum gain before feedbackVersatile mounting options and effective dampening of mechanical noise thanks to included AT8471 isolation clampRugged, all-metal design and construction for years of trouble-free use
ATM650 Hypercardioid Dynamic Instrument Microphone (1 included)
Tailored for use on snare drumsHypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound sourceDurable performance for professional applicationsSpecial dual-wall floating construction reduces handling noise and assures consistent performance from mic to micHi-ENERGY neodymium magnet for improved output and transient responseMulti-stage flat grille design is engineered to enable easy placement as close as possible to sound sourceRugged, all-metal design and construction for years of trouble-free useIncludes AT8470 Quiet-Flex? stand clamp
ATM450 Cardioid Condenser Instrument Microphone (2 included)
Tailored for use on cymbalsCardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound sourceUnique side-address stick design maximizes placement options with minimal obstructionsIntegral 80 Hz HPF switch and 10 dB padDurable performance for professional applicationsRugged, all-metal design and construction for years of trouble-free useIncludes AT8471 isolation clamp for shock protection, secure mounting and easy positioningPack includes a hard carrying case with die-cut foam interior
Specifications
ELEMENT
ATM250, ATM650: DynamicATM450: Fixed-charge back plate permanently polarized condenser
POLAR PATTERN
ATM250, ATM650: HypercardioidATM450: Cardioid
FREQUENCY RESPONSE
ATM250: 40-15,000 HzATM650: 80-17,000 HzATM450: 40-20,000 Hz
OPEN CIRCUIT SENSITIVITY
ATM250: -54 dB (1.9 mV) re 1V at 1 PaATM650: -56 dB (1.5 mV) re 1V at 1 PaATM450: -41 dB (8.9 mV) re 1V at 1 Pa
IMPEDANCE
ATM250: 600 ohmsATM650: 300 ohmsATM450: 200 ohms
WEIGHT
ATM250: 252 g (8.9 oz)ATM650: 279 g (9.8 oz)ATM450: 98 g (3.5 oz)
DIMENSIONS
ATM250: 127.5 mm (5.02") long, 55.0 mm (2.17") diameterATM650: 164.2 mm (6.46") long, 38.8 mm (1.53") diameterATM450: 126.9 mm (5.00") long, 21.0 mm (0.83") diameter
OUTPUT CONNECTOR: Integral 3-pin XLRM-type
ACCESSORIES FURNISHED

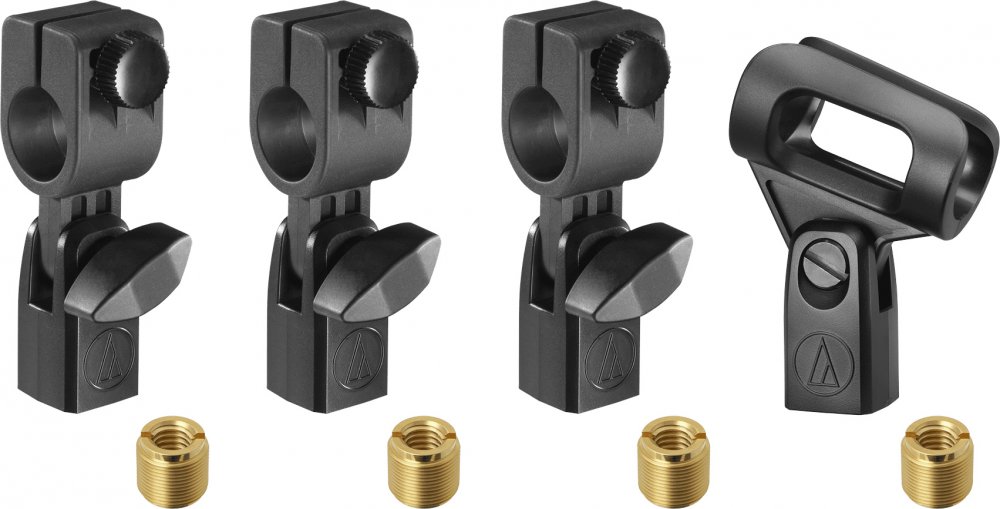

Three AT8471 isolation stand clampsAT8470 Quiet-Flex? stand clampFour 5/8"-27 to 3/8"-16 threaded adaptersHard carrying case
Audio-Technica Case Style
ATM250: R9ATM650: T5ATM450: S11
