Audio Technica AT8024
UPC/EAN #4961310127657
MPN #AT8024

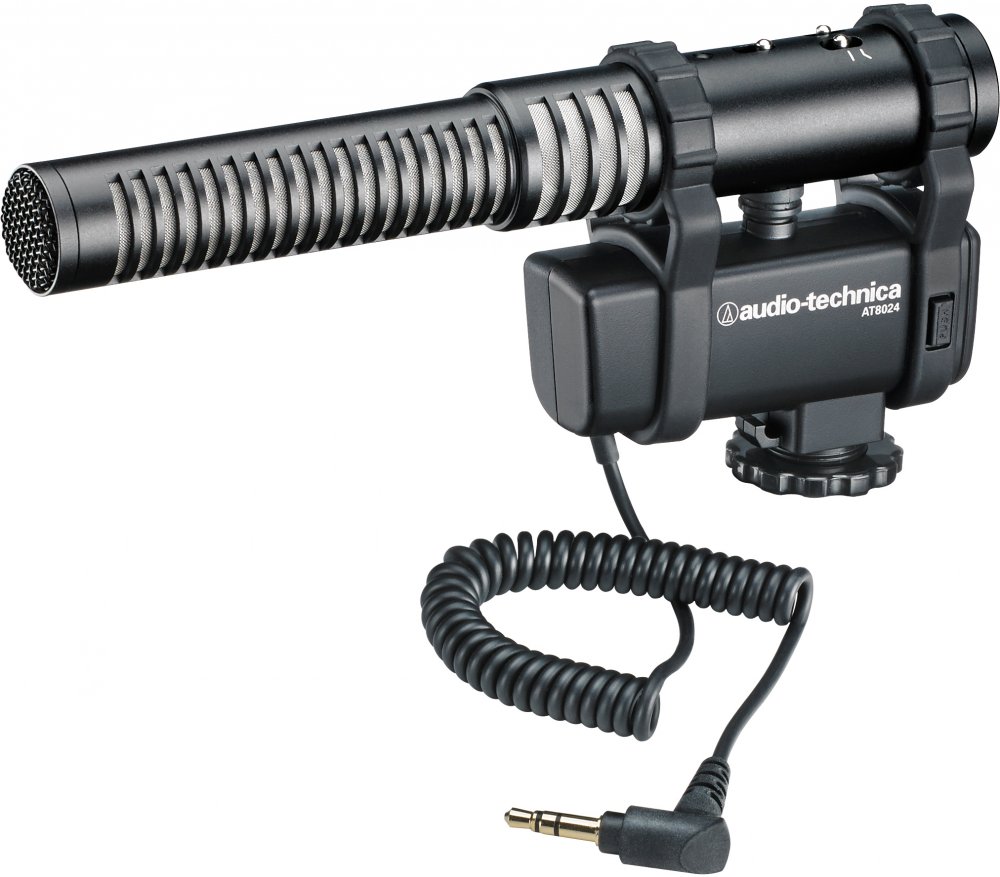

With its lightweight yet feature-rich design, the AT8024 Stereo/Mono Camera-Mount Microphone offers a simple, powerful solution for capturing high-resolution audio for video.
Selectable line-cardioid mono and internally matrixed mid-side stereo modes provide the flexibility to focus the recording on a single sound source or to widen the field for outstanding sonic realism. In either mode, the AT8024 delivers audio that is dramatically better than that supplied by the camera's internal microphone.
The AT8024 camera-mount microphone also comes equipped with a three-position adjustable attenuator (-20 dB, -10 dB, 0 dB) to capture even soft and very loud sound passages without distortion. A switchable low-frequency roll-off reduces pickup of undesired ambient noise, room reverberation and mechanically coupled vibrations. The microphone is powered by a single AA battery for optimal performance with high max SPL, and features an integral camera shoe mount that attaches quickly to DSLRs and shoe-equipped camcorders.
Features
Designed for use with DSLR and other video cameras, delivering dramatically better sound quality than the camera's internal microphoneSelectable line-cardioid mono or mid-side stereo modes provide the flexibility to capture high-resolution audio in any environmentHandles loud sound sources without distortionThree-position adjustable attenuator and switchable low-frequency roll-offIntegral rubber shock mounts isolate the microphone from vibration and mechanical camera noiseCompact, lightweight design with integral shoe mountRed/green LED power indicatorIncludes windscreen, fuzzy windscreen and AA battery
Specifications
ELEMENTS: Fixed-charge back plate, permanently polarized condenser
POLAR PATTERNS: Line-cardioid, LR stereo
FREQUENCY RESPONSE: 40-15,000 Hz
LOW FREQUENCY ROLL-OFF: 80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY: -37 dB (14.1 mV) re 1V at 1 Pa (Mono & LR Stereo)
IMPEDANCE: 50 ohms
MAXIMUM INPUT SOUND LEVEL: 128 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical):
Mono: 106 dB, 1 kHz at Max SPL;
Stereo: 104 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO:
Mono: 72 dB, 1 kHz at 1 Pa;
Stereo: 70 dB, 1 kHz at 1 Pa
BATTERY TYPE: Type: One 1.5V AA (included); Life: 80 hours, typical
SWITCHES: Mono, M-S Stereo; Three-position attenuator; Flat, roll-off
WEIGHT: 114 g (4.0 oz)
DIMENSIONS: 172.0 mm (6.77") long, 24.0 mm (0.94") maximum body diameter
OUTPUT CONNECTOR: 3.5 mm stereo mini-plug on cable
CABLE: Permanently attached 0.2 m -1 m (7.8"- 39.3") coiled cable with right-angle molded 3.5 mm stereo mini-plug at output end
ACCESSORIES FURNISHED: Windscreen; fuzzy windscreen; AA battery
AUDIO-TECHNICA CASE STYLE: CM1
