Audio Technica AT8015
UPC/EAN #4961310098247
MPN #AT8015

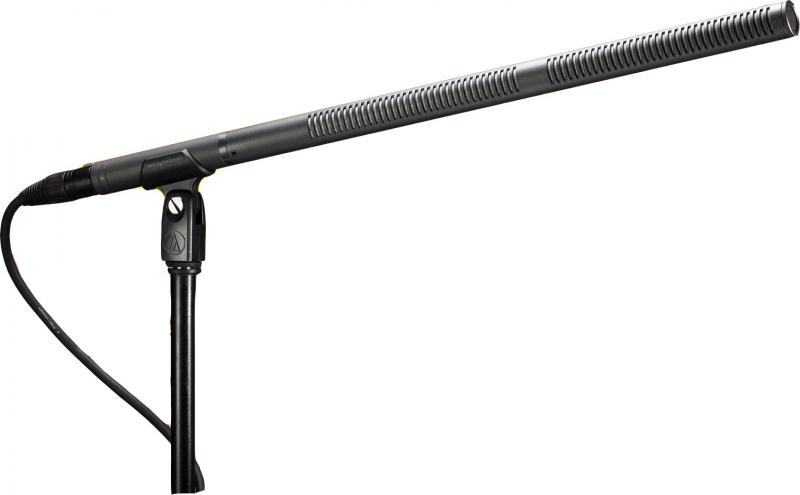

The Audio Technica AT8015 Line + Gradient Condenser Microphone, designed for video production and broadcast (ENG/EFP) audio acquisition.
The AT8015 provides the narrow acceptance angle desirable for long-distance sound pickup, along with excellent sound rejection from the sides and rear of mic. The roll-off position reduces the pickup of low-frequency ambient noise (such as traffic, air-handling systems, etc.), room reverberation and mechanically coupled vibrations.
Features
Designed for video production and broadcast (ENG/EFP) audio acquisitionProvides the narrow acceptance angle desirable for long-distance sound pickupExcellent sound rejection from the sides and rear of micSwitchable low-frequency roll-offOperates on battery or phantom powerRoHS compliantfree from all substances specified in the EU directive on hazardous substances
Specifications
ELEMENT: Fixed-charge back plate, permanently polarized condenserPOLAR PATTERN: Line + gradientFREQUENCY RESPONSE: 40-20,000 HzLOW FREQUENCY ROLL-OFF: 80 Hz, 12 dB/octaveOPEN CIRCUIT SENSITIVITY: Phantom: -38 dB (12.5 mV) re 1V at 1 Pa, Battery: -39 dB (11.2 mV) re 1V at 1 PaIMPEDANCE : Phantom: 250 ohms, Battery: 300 ohmsMAXIMUM INPUT SOUND LEVEL: Phantom: 132 dB SPL, 1 kHz at 1% T.H.D.- Battery: 120 dB SPL, 1 kHz at 1% T.H.D.DYNAMIC RANGE (typical): Phantom: 110 dB, 1 kHz at Max SPL, Battery: 98 dB, 1 kHz at Max SPLSIGNAL-TO-NOISE RATIO: 72 dB, 1 kHz at 1 PaPHANTOM POWER REQUIREMENTS: 11-52V DC, 2 mA typicalBATTERY TYPE: 1.5V AA/UM3BATTERY CURRENT / LIFE: 0.4 mA / 1200 hours typical (alkaline)SWITCH: Flat, roll-offWEIGHT: 195 g (6.9 oz)DIMENSIONS: 460.0 mm (18.11") long, 21.0 mm (0.83") diameterOUTPUT CONNECTOR: Integral 3-pin XLRM-typeACCESSORIES FURNISHED: AT8405a stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; AT8135 windscreen; battery; protective carrying caseAUDIO-TECHNICA CASE STYLE: SG3
