Audio Technica AT5045
UPC/EAN #042005186129
MPN #AT5045
The Audio Technica AT5045 is a large-diaphragm electret side-address condenser instrument microphone with a cardioid polar pattern.
Studio Instrument Microphone
Available as a single mic or as a stereo pair, the AT5045 is Audio-Technica's premier condenser instrument microphone, offering the performance of a large-diaphragm, side-address condenser in a convenient, stick-type body. In fact, despite the space limitations imposed by its housing, the AT5045 boasts Audio-Technica's largest single diaphragm. The instrument microphone's circuitry has been honed to the essentials, allowing the AT5045 to achieve an unprecedented dynamic range that's one of the widest of any microphone on the market.
100% quality control
Every AT5045 is hand assembled and individually inspected for 100% quality control. Each microphone is enclosed in an elegant housing of aluminum and brass with a high-quality gray finish for durability and low reflectivity.
Discrete components have been selected for optimized performance. The circuitry and capsule assembly are mounted as a single block within a floating internal shock mount, effectively decoupling the capsule from the microphone body for excellent vibration isolation. In fact, every aspect of the microphone has been carefully considered to minimize any negative effects on the audio signal.

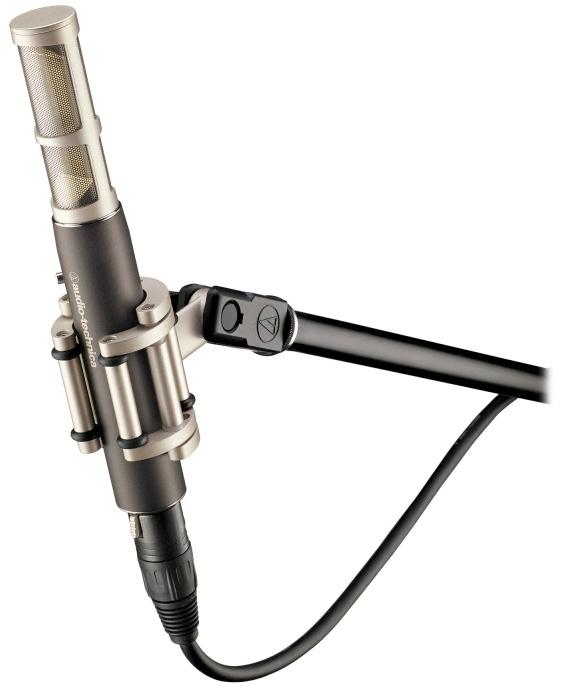

The AT5045 instrument mic comes with Audio-Technica's innovative AT8481 isolation clamp, an AT8165 windscreen and a protective carrying case that holds a single AT5045 microphone or a stereo pair of AT5045 microphones.
Check for the stereo pair (AT5045P).
Features
Audio-Technica's premier studio condenser instrument microphonePure, realistic sound quality for overheads, percussion, acoustic guitar, strings and other acoustic instrumentsSide-address, stick-design microphone with more diaphragm surface area than most traditional large diaphragm side-address microphonesDiscrete components carefully selected for optimized performanceTransformer-coupled output is optimized to provide smooth sonic characterExceptionally low noise with high-SPL capabilityHand built and inspected for 100% quality controlAdvanced internal shock mounting decouples the capsule from the microphone bodyElegant, durable housing of aluminum and brassInnovative isolation clamp provides secure mounting, versatile positioning and effective dampening of unwanted mechanical noiseAvailable as a single microphone (AT5045) or as a stereo pair (AT5045P)Custom hard-shell carrying case with die-cut foam compartments offers protection for one or two microphones
Specifications
ELEMENT: Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN : Cardioid
FREQUENCY RESPONSE: 20 - 20,000 Hz
OPEN CIRCUIT SENSITIVITY: -35 dB (17.7 mV) re 1V at 1 Pa
IMPEDANCE : 100 ohms
MAXIMUM INPUT SOUND LEVEL: 149 dB SPL, 1 kHz at 1% T.H.D.
NOISE: 8 dB SPL
DYNAMIC RANGE (typical): 141 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO: 86 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS: 48V DC, 1.4 mA typical
WEIGHT: 197 g (7.0 oz)
DIMENSIONS: 177.0 mm (6.97'') long, 25.0 mm (0.98'') maximum body diameter
OUTPUT CONNECTOR: Integral 3-pin XLRM-type
ACCESSORIES FURNISHED: AT8481 isolation clamp for 5/8"-27 threaded stands; AT8165 windscreen; protective carrying case
AUDIO-TECHNICA CASE STYLE: R11
