Audio Technica AT4050ST
UPC/EAN #4961310137779
MPN #AT4050ST

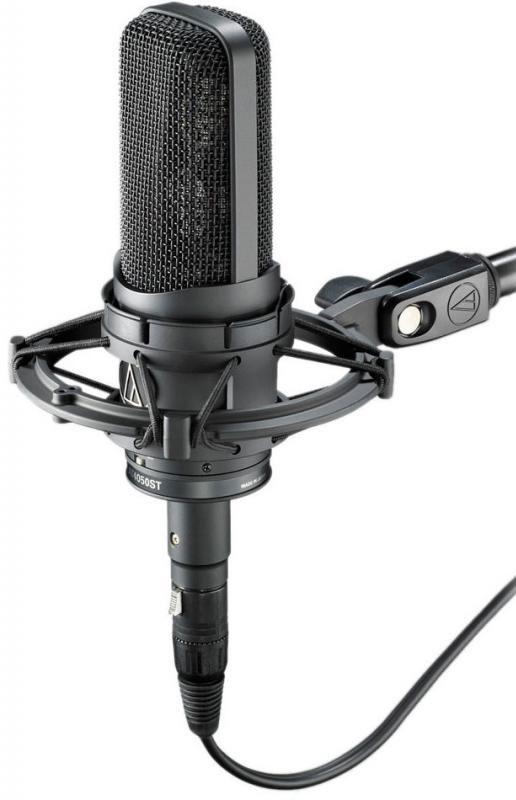

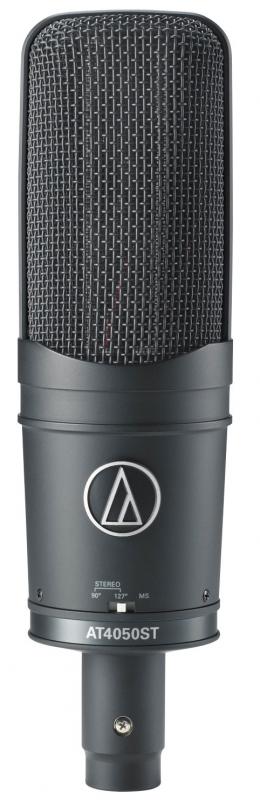

The Audio Technica AT4050ST is a stereo side-address condenser with cardioid and figure-of-eight elements configured in a Mid-Side arrangement.
This innovative stereo condenser allows sound recordists the choice of selecting a left-right stereo output or choosing discrete Mid-Side signals for later manipulation, a remarkable flexibility. The microphone's dual-diaphragm capsules maintain precise polar pattern definition across the full frequency range. Its transformerless circuitry virtually eliminates low-frequency distortion.
Features
Innovative side-address Mid-Side stereo microphone engineered for professional recording, broadcast and sound reinforcementIndependent cardioid and figure-of-eight condenser elementsSwitch selection of Mid-Side mode and two internally matrixed stereo modesDual-diaphragm capsules maintain precise polar pattern definition across the full frequency range of the microphoneTransformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transientsThe 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics remain constant over years of useOpen acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflectionsIntegral 80 Hz high-pass filter switch and 10 dB pad switchState-of-the-art design and manufacturing techniques ensure compliance with A-T's stringent consistency and reliability standardsCustom shock mount provides superior isolationCertified by the METAlliance (Music Engineering and Technology Alliance)
Specifications
ELEMENT : Externally-polarized (DC bias) condenser
POLAR PATTERN : Cardioid and Figure-of-eight
FREQUENCY RESPONSE : 20-18,000 Hz
LOW FREQUENCY ROLL-OFF : 80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY :
Stereo 90 : -42 dB (7.9 mV) dB re 1V at 1 Pa
Stereo 127 : -41 dB (8.9 mV) dB re 1V at 1 Pa
Mid : -36 dB (15.8 mV) dB re 1V at 1 Pa
Side : -36 dB (15.8 mV) dB re 1V at 1 Pa
IMPEDANCE : 50 ohms
MAXIMUM INPUT SOUND LEVEL :
Mid and Side : 149 dB SPL, 1 kHz at 1% T.H.D.;
159 dB SPL, with 10 dB pad (nominal)
NOISE :
Stereo 90 : 25 dB SPL
Stereo 127 : 16 dB SPL
Mid : 15 dB SPL
Side : 17 dB SPL
DYNAMIC RANGE (typical) :
Mid: 134 dB, 1 kHz at Max SPL
Side: 132 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO :
Stereo 90 : 69 dB, 1 kHz at 1 Pa
Stereo 127 : 78 dB, 1 kHz at 1 Pa
Mid: 79 dB, 1 kHz at 1 Pa
Side: 77 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS :
48V DC, 6.4 mA typical (both channels total)
SWITCHES :
90, 127, M-S;
Flat, roll-off;
10 dB pad (nominal)
WEIGHT : 517 g (18.2 oz)
DIMENSIONS : 193.0 mm (7.60") long, 53.4 mm (2.10") maximum body diameter
OUTPUT CONNECTOR : Integral 5-pin XLRM-type
CABLE : 5.0 m (16.5') long, 8-conductor, shielded, vinyl-jacketed stereo cable with 5-pin XLRF-type connector at microphone end and two 3-pin XLRM-type connectors at output end
ACCESSORIES FURNISHED : AT8449 shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case
AUDIO-TECHNICA CASE STYLE : R1
POLAR PATTERN : STEREO 90
POLAR PATTERN : STEREO 127
POLAR PATTERN : MID, SIDE
