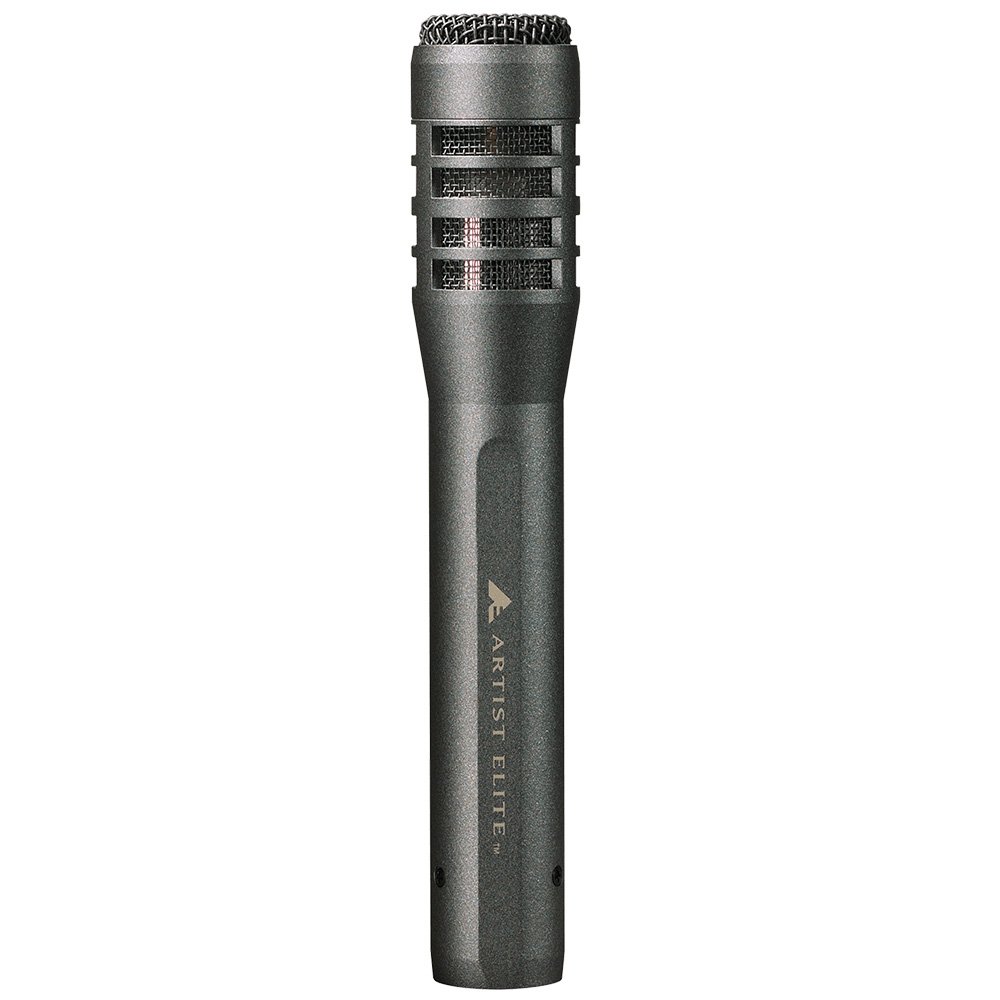

Audio Technica AE5100
UPC/EAN #4961310088514
MPN #AE5100
Cardioid Condenser Instrument Microphone
The Artist Elite AE5100 large diaphragm cardioid condenser instrument microphone provides uncompromising sound quality for overheads, percussion, acoustic guitar, strings and other acoustic instruments. With rich, warm, accurate sound, the AE5100 also incorporates the most essential ingredients for quality live sound in a choir microphone. Its large-diaphragm capsule delivers accurate, natural response, while its low-profile design permits innovative placement options. With a lower profile than the large studio microphones to which it compares sonically, the AE5100 offers an outstanding performance-to-size ratio. With its low noise and smooth response, the AE5100 is ideal for recording, too.
Features
Large-diaphragm capsule delivers accurate and natural responseLow-profile design permits innovative placement options previously unattainable with a large-diaphragm condenserCardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound sourceRobust design for enduring dependability on the roadIncludes isolation clamp for shock protection, secure mounting and easy positioningIntegral 80 Hz HPF switch and 10 dB pad
Specifications
Element: Fixed-charge back plate, permanently polarized condenser
Polar Pattern: Cardioid
Frequency Response: 20-20,000 Hz
Low Frequency Roll Off: 80 Hz, 12 dB/octave
Open Circuit Sensitivity: -36 dB (15.8 mV) re 1V at 1 Pa
Dynamic Range: 137 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio: 83 dB, 1 kHz at 1 Pa
Phantom Power Requirements: 11-52V DC, 3.2 mA typical
Switches: High-pass filter; 10 dB pad (nominal)
Weight: 5.0 oz (143 g)
Dimensions: 5.85" (148.5 mm) long, 1.02" (26.0 mm) maximum diameter
Output Connector: Integral 3-pin XLRM-type

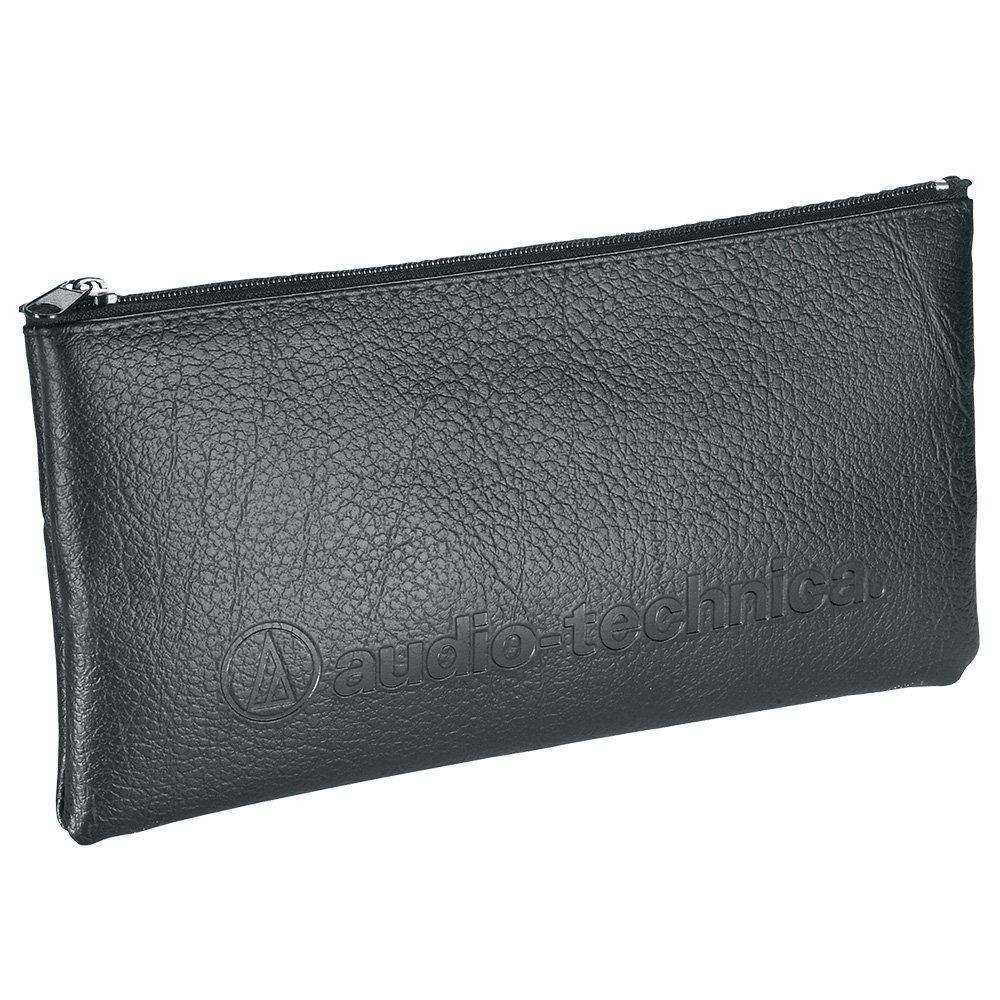

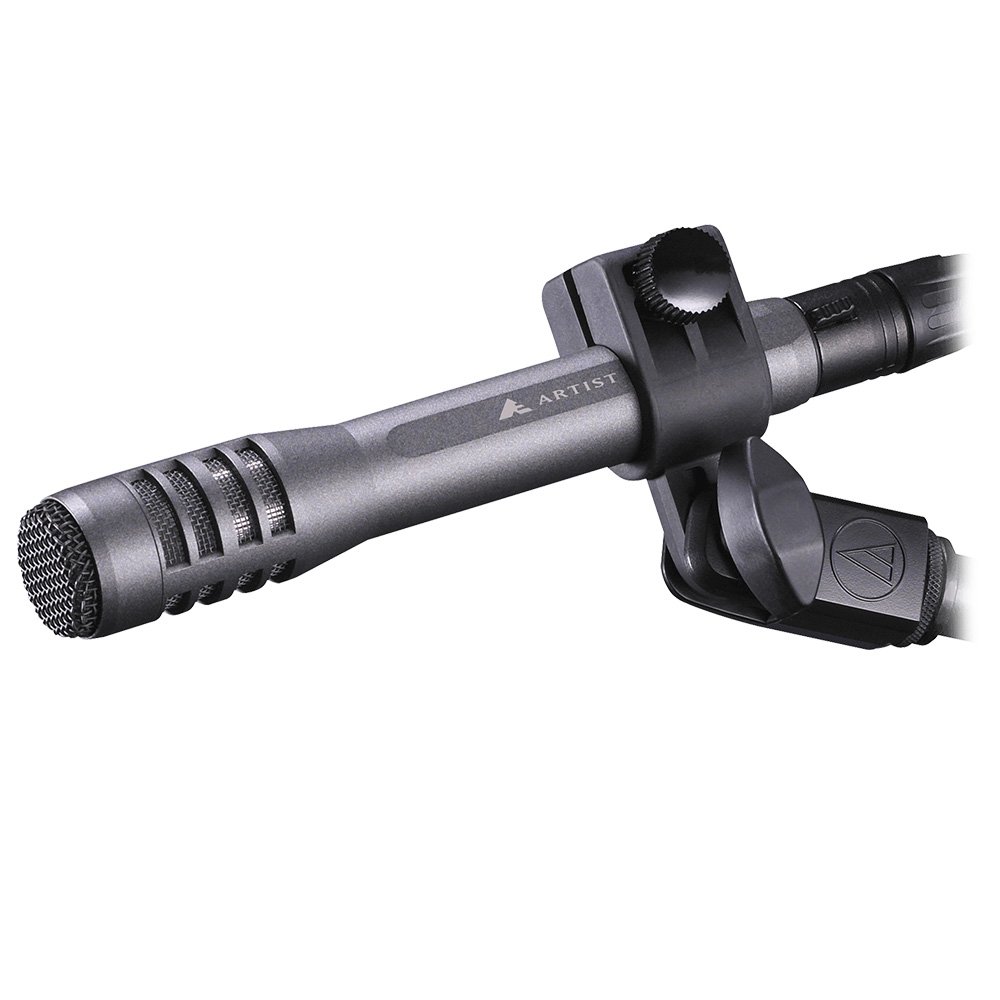

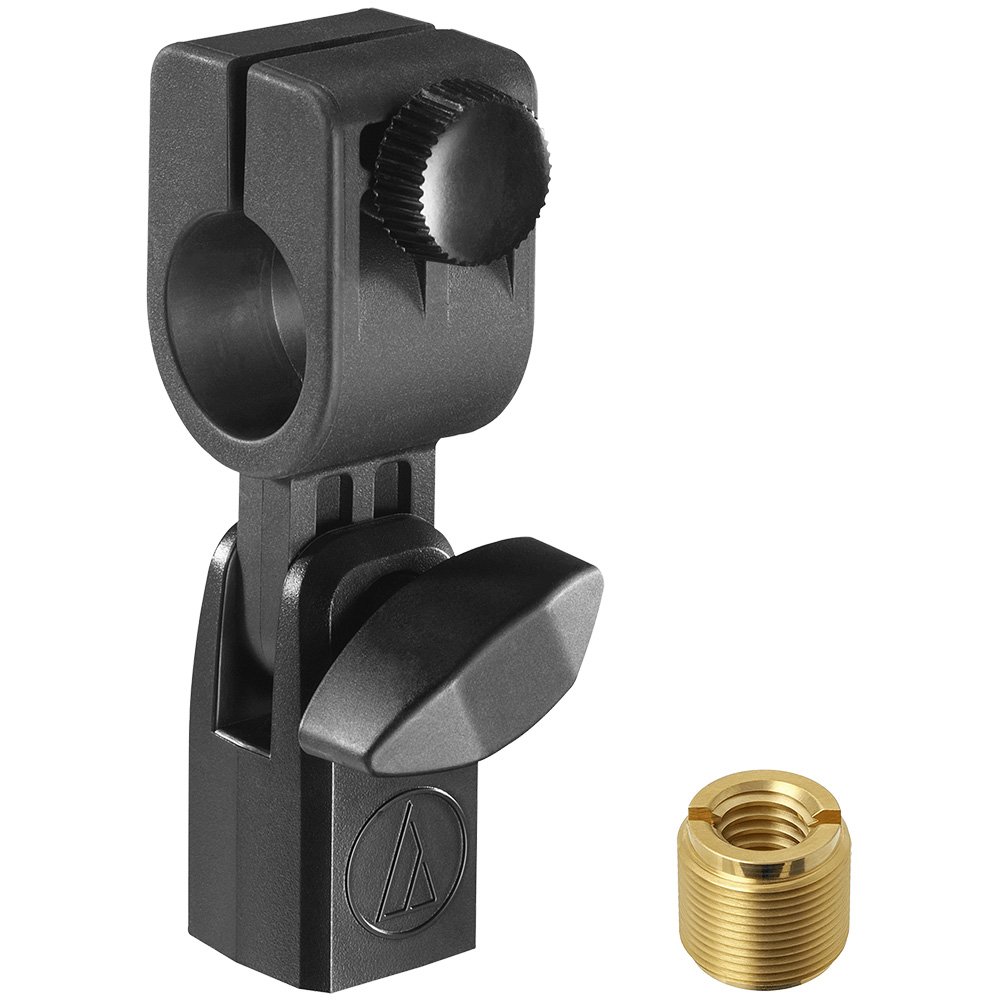

Accessories Included: AT8471 isolation clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; AT8136 windscreen; soft protective pouch
Audio-Technica Case Style: S4
