Audio Technica AE3000
UPC/EAN #4961310088521
MPN #AE3000

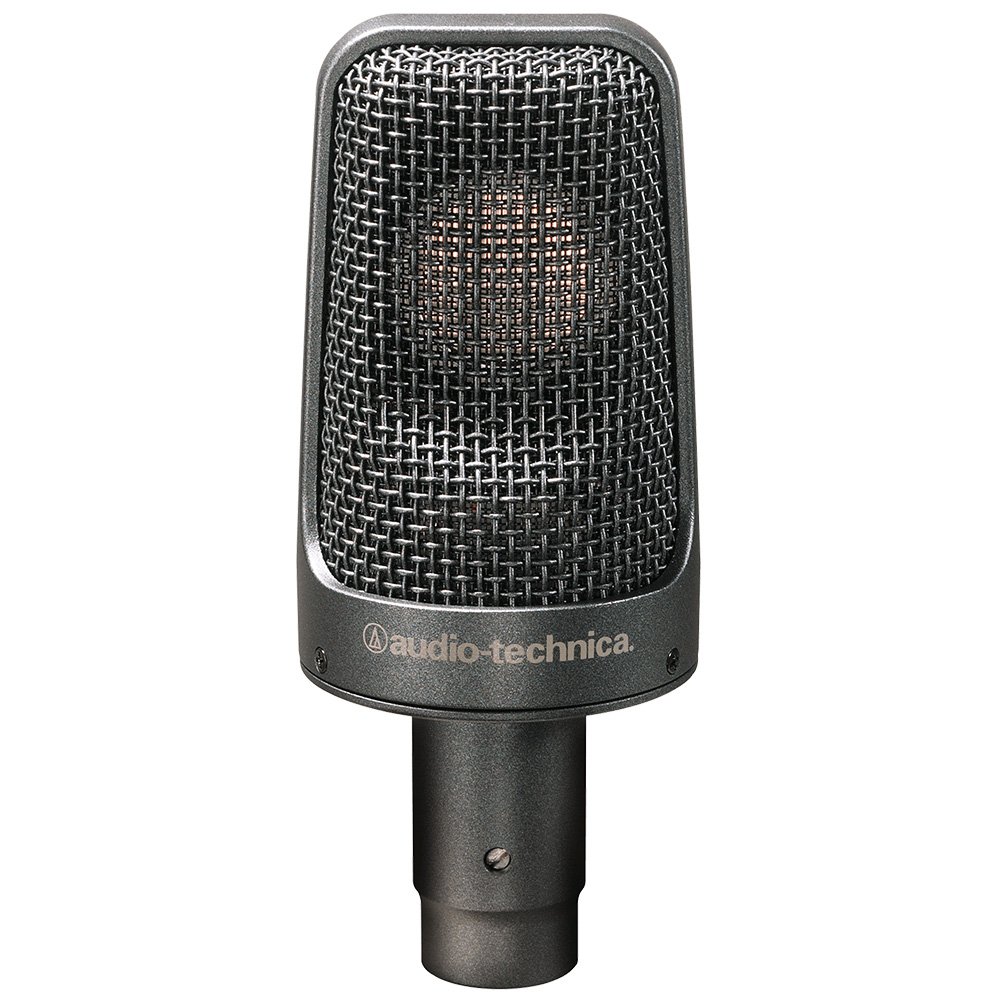

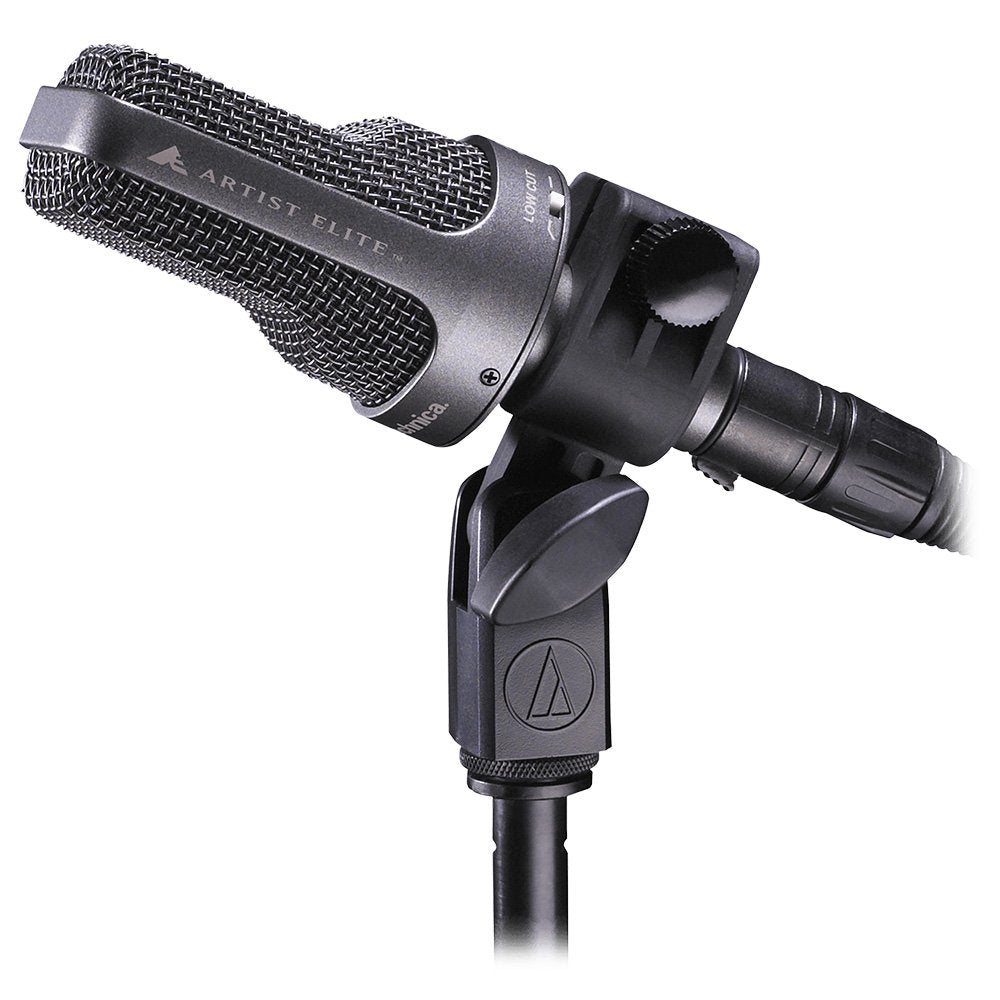

Audio Technica AE3000 is a Cardioid Condenser Instrument Microphone. The Artist Elite AE3000 delivers supreme performance at extreme SPLs.

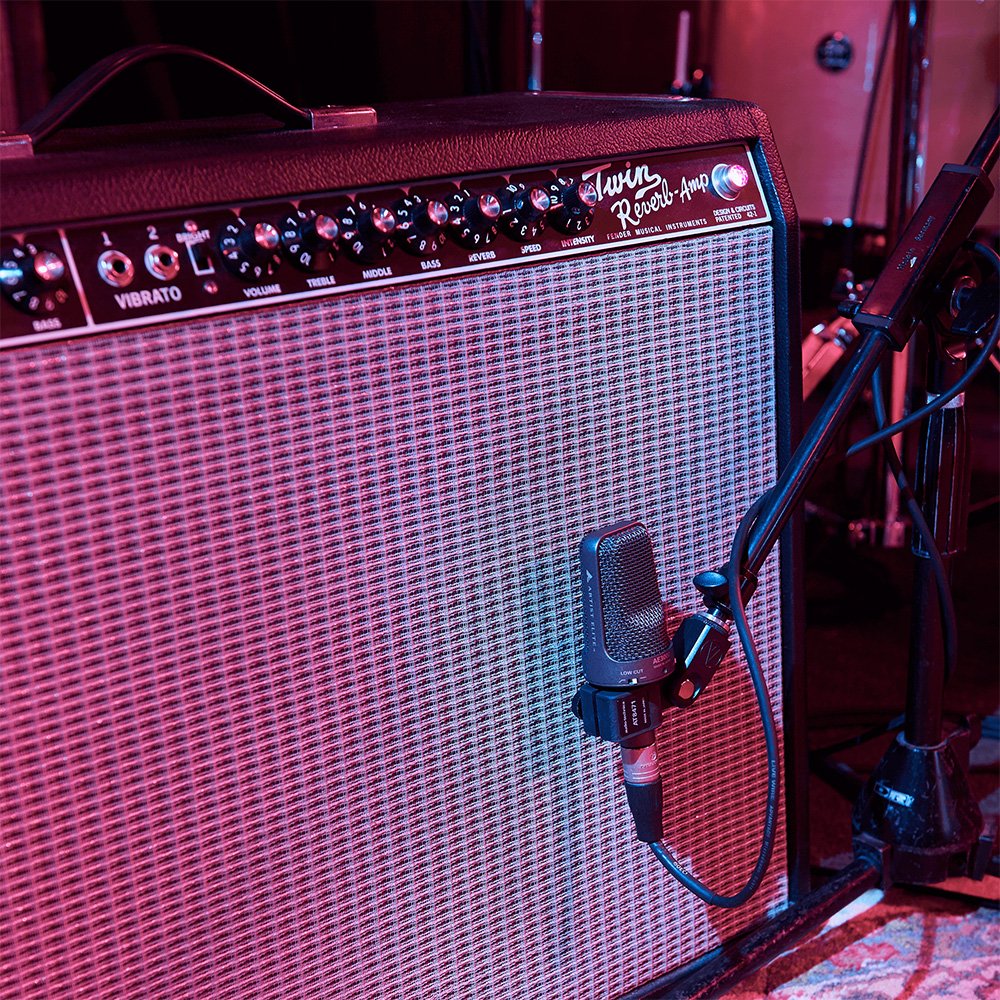

This high-SPL large diaphragm cardioid condenser instrument mic excels in applications such as guitar cabinets, toms, snare, timpani and overheads. Its large-diaphragm capsule combines with the open architecture of the headcase to provide an extremely accurate and open sound. Its low-profile side-address design with tapered grille allows for optimal positioning.
Features
Excels in high-SPL applicationsLarge-diaphragm capsule combines with the open architecture of the headcase to provide an extremely accurate and open soundLow-profile side-address design with tapered grille allows optimal positioning of element vis-Ã -vis sound sourceCardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound sourceRobust design for enduring dependability on the roadIntegral 80 Hz HPF switch and 10 dB pad
Specifications
ELEMENT
Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN
Cardioid
FREQUENCY RESPONSE
20-20,000 Hz
LOW FREQUENCY ROLL-OFF
80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY
-43 dB (7.0 mV) re 1V at 1 Pa
IMPEDANCE
100 ohms
MAXIMUM INPUT SOUND LEVEL
148 dB SPL, 1 kHz at 1% T.H.D.; 158 dB SPL, with 10 dB pad (nominal)
NOISE
11 dB SPL
DYNAMIC RANGE (typical)
137 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO
83 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS
11-52V DC, 3 mA typical
SWITCHES
High-pass filter; 10 dB pad (nominal)
WEIGHT
6.0 oz (170 g)
DIMENSIONS
4.55" (115.5 mm) long,1.89" (48.0 mm) maximum diameter
OUTPUT CONNECTOR
Integral 3-pin XLRM-type
ACCESSORIES FURNISHED

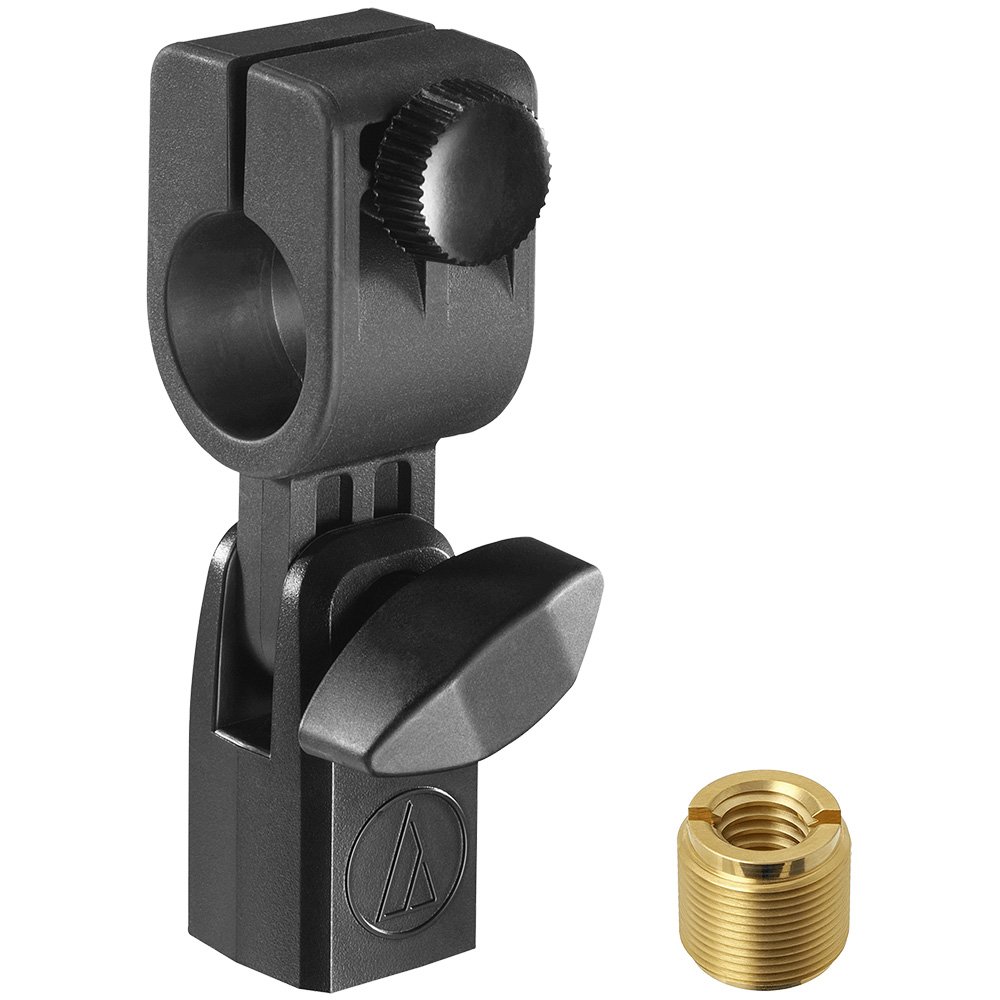

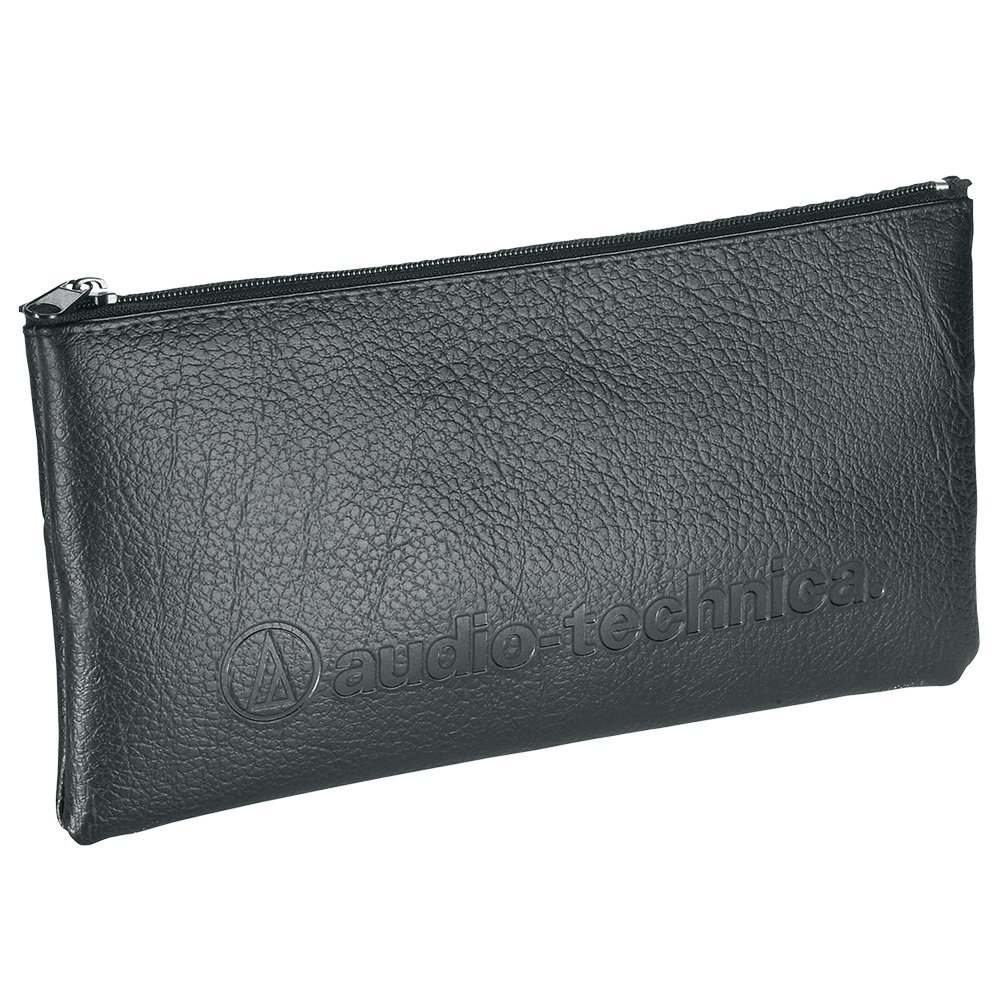

AT8471 isolation clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
AUDIO-TECHNICA CASE STYLE
R6
