Record ProRes RAW

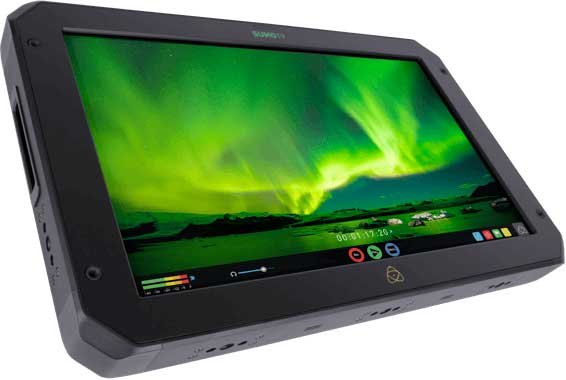

Unlock the true potential of your RAW cinema camera with the Sumo19. Preserve your sensor's pristine pixels in ProRes RAW at up to 5.7kp30, 4kp120 DCI/UHD and 2kp240 DCI/HD. CDNG supports up to 4kp30 DCI. Sumo19 is compatible with Sony FS series, Canon C300MKII/C500 or Panasonic EVA-1/Varicam LT. Record up to 4kp30 in CDNG.

HDR in the field and in the studio
HDR really comes to life on the Sumo19. It's 19" 1920 x 1080 LCD panel with 10-bit processing takes the RAW/Log/PQ/HLG output from cameras or games consoles and precisely maps to display 10+ stops of dynamic range in real time. Use as a director or client monitor in the field, or an affordable HDR studio monitor.

10-bit ProRes/DNxHR up to 4Kp60
Video from any camera or digital video source can be captured via SDI or HDMI. Record up to 10-bit 4:2:2 in ProRes or DNxHR codecs at 4Kp60 or 2Kp240, depending on the camera's capability. The depth and quality of the image is preserved with data rates of up to 1.8Gbs, 220MB/s.

Live quad channel HD switching and recording
Live switch four 1080p channels and record each as separate ISOs. Switch between feeds intuitively on-screen with hard cuts. Save space by replacing several boxes in your rack with a single Sumo19.

Two stereo balanced XLR inputs with 48V
Use full size XLR connections with 48V Phantom power to connect two external microphones with balanced analogue audio recording and monitoring. The Sumo19 has dedicated meters, gain controls and adjustments for frame delay on each channel. Mic or line level audio can be seamlessly synchronized with embedded audio from HDMI and SDI sources.

Quad SDI & HDMI 2.0 In/Out
Seamlessly connect any SDI or HDMI device for monitoring and recording. Cross convert between HDMI 2.0 and 1.5G/3G/6G/12G/Quadlink & Dual link 12G SDI in almost any combination and eliminate the need for specialist converters.

Weight
Without batteries, media & stand: 5.45kg / 12.0lb
With stand: 6.0kg / 13.2lb
Dimensions (W x H x D mm):

504 x 310 x 63mm, 19.8" x 12.2" x 2.5" (without stand)

504 x 330 x 180mm, 19.8" x 13" x 7.1" (with stand)

Construction: Aluminium alloy chassis with built in armor protection

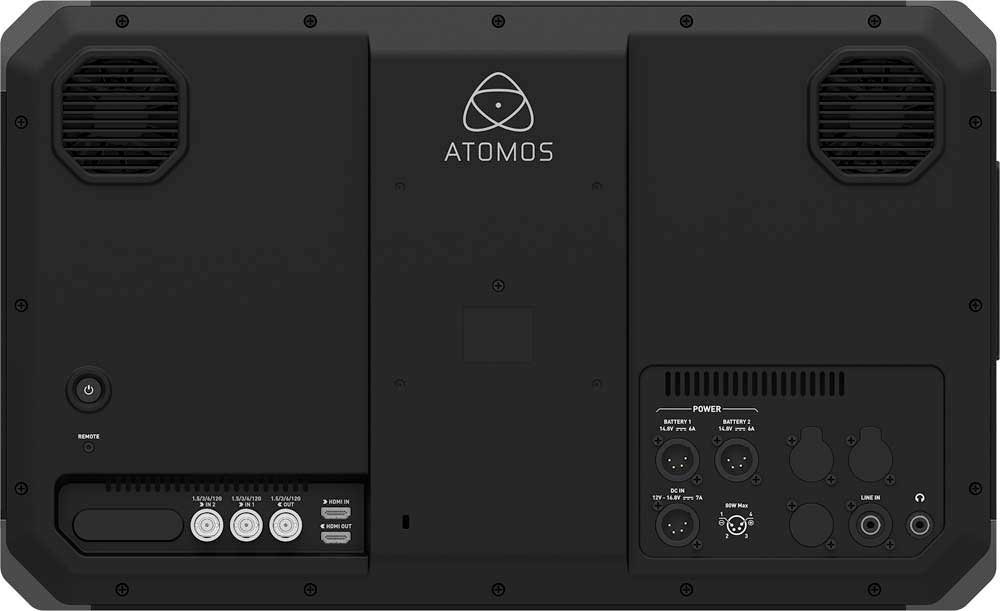

Mounting Points:

1/4-20 screw; 4 x top, 4 x bottom, 2 x side

3/8-16 screw; 2 x top, 2 x bottom, 1 x side

VESA mount rear

Power
Operating power: 75W
Compatible batteries:

V-Lock / Anton Bauer via XLR terminal

(optional mounting plates available)

95Wh or larger recommended.

Input voltage (battery): 14.4V nominal
Battery time: Depends on Watt Hours specification of battery used
DC In:

1 x DC in (12 - 16.8V)

Continuous power

* Patent pending:

Primary-secondary battery system.

Change batteries without losing power

Loop batteries continuously

Touchscreen
Size: 19"
Resolution: 1920 x 1200
PPI: 120
Aspect ratio: 16:9 native
Color Gamut: REC709 HDTV
Look up table (LUT) support: 3D LUT (.cube format)
Anamorphic de-squeeze: 2x, 1.5x, 1.33x, Panasonic 8:3
Technology: SuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional calibration unit

HDR
AtomHDR: Yes
Supported Log formats:
Sony SLog2 / SLog3, Canon CLog / CLog 2, Arri Log C, Panasonic Vlog, JVC JLog, Red LogFilm, FujiFilm Flog
Supported Gamuts:

Sony SGamut / SGamut3 / SGamut3.cine

Canon Cinema / BT2020 / DCI P3 / DCI P3+

Panasonic V Gamut

Arri Alexa Wide Gamut

Bit depth: 10-bit (8+2 FRC)
Brightness: 1200nit (+/- 10% @ center)
HDR input (PQ/HLG): Yes / Yes
HDR output (PQ/HLG): Yes / Yes

Video Input/Loop Out
HDMI: 1 x HDMI (2.0)
SDI: Quad link 4 x 3G SDI* or up to 12G single link SDI
Signal: Uncompressed true 10-bit or 8-bit 422 (camera dependent)

Video Output (Play Out)
HDMI: 1 x HDMI (2.0)
SDI: 1x 4K-SDI 12G/6G or HD-SDI 3G/1.5G
Signal: Uncompressed true 10-bit or 8-bit 422
(playback file dependent)
Supported Loop Out Formats
HDMI to HDMI:

720p 50/60,

1080i 50/60,

1080p 24/25/30/50/60/100/120

2160p 24/25/30/50/60

SDI to SDI:

720p 50/60,

1080i 50/60

1080pSF 24/25/30

1080p 24/25/30/50/60/100/120

2160p 24/25/30/50/60

Video Signal Conversion
HDMI to SDI:

720p 50/60,

1080i 50/60,

1080p 24/25/30/50/60/100/120/200*/240*

2160p 24/25/30/50/60

SDI to HDMI:

720p 50/60,

1080i 50/60,

1080p 24/25/30/50/60/100/120/200*/240*

2160p 24/25/30/50/60

Supported Codecs & Frame Rates (Record & Playback)
Raw to

ProRes RAW

ProRes

CinemaDNG (CDNG up to 30p only)

Avid DNxHD

Sony^^ FS700, FS-5, FS-7, FS-7MkII

4K DCI; 24/25/30/50/60p

4K UHD; not supported in camera

2K; 24/25/30/50/60/100/120/200/240p

1080; not supported in camera

Canon C300MKII/C500 CDNG

4K DCI; 24/25/30p

4K UHD; 24/25/30p

2K; not supported in camera

1080; not supported in camera

Panasonic VaricamLT, EVA1

5.7K DCI; 24/25/30p (EVA1 ProRes RAW only)

4K DCI; 24/25/30/50/60p

4K UHD; 24/25/30/50/60p

2K; 24/25/30/50/60/100/120/200/240p 1080; not supported in camera

Onboard Processing
Pulldown removal:

24/25/30pSF > 24/25/30p (2:2 pulldown)

60i > 24p (3:2 pulldown)

4K UHD downscale for HD monitoring: Yes - Loop-out and playback (Not available in RAW)

Audio In/Out (48kHz PCM Audio)
HDMI: 2 or 8ch 24-bit, camera dependent
SDI: 12ch 48kHz 24-bit
Audio:

2ch balanced XLR analog in/out (direct XLR connection)

Dynamic range >90dB

Max signal level +24dBu

Max analog gain +52dB

48V Phantom Power for Mic

Headphone Out: 3.5mm
Built-in Speakers: Yes
Remote Start/Stop
HDMI: Auto HDMI Trigger
Supported Protocols - Canon, Sony, Atomos Open Standard
SDI: SDI trigger camera selectable
Other: LANC control - Slave

Playback
Playlist / Genlock: Yes / Yes
CDNG (Recorded content): No support
ProRes (Recorded content): All recorded files can playback. Playback in slow motion >= 100fps
DNxHR / DNxHD (recorded content): All recorded files can playback. Playback in slow motion >= 100fps

Recording
Pre-roll record: Yes (HD 8s, 4K 2s)
Custom timelapse: Yes
Meta data tagging: Yes (10 tags available)
Supported media: 2.5" SSD/HDD compatibility depends on recording format, resolution and frame rate. Visit atomos.com/drives for list of tested and approved drives
Master caddy case: Master Caddy II (included) 75mm x 105mm x 12mm
Master caddy dock: 2.5" SATA to USB 2.0/3.0
Supported applications:
FCPX/FCP7+ / Media Composer 5.0+ / Premiere 5.5+ EDIUS 6.0+ / Vegas Pro 10+ / Lightworks / Autodesk Smoke 2015
XML support: FCPX XML native, FCPX/Adobe limited supported with 3rd party conversion tools
Accessories included: Sumo unit, 1x Master Caddy II, 1x BattWing mounting bracket with 4x screws, 2x Desktop Feet with 4x 1/4" Mounting screws, AC power supply
Optional extras: Sunhood, VESA battery adapter plate, Atomos HDMI cable, X-Rite i1DisplayPro calibration
Warranty: 1 year. Extended to 3 years on product registration
