Atomos Ninja TX
MPN #ATOM-NJTX01
SDI & HDMI I/O, 8Kp30 ProRes RAW recording to CFexpress or USB-C, Wi-Fi 6E, NDI, AirGlu timecode, 1500 nit HDR touchscreen, built-in C2C connectivity.

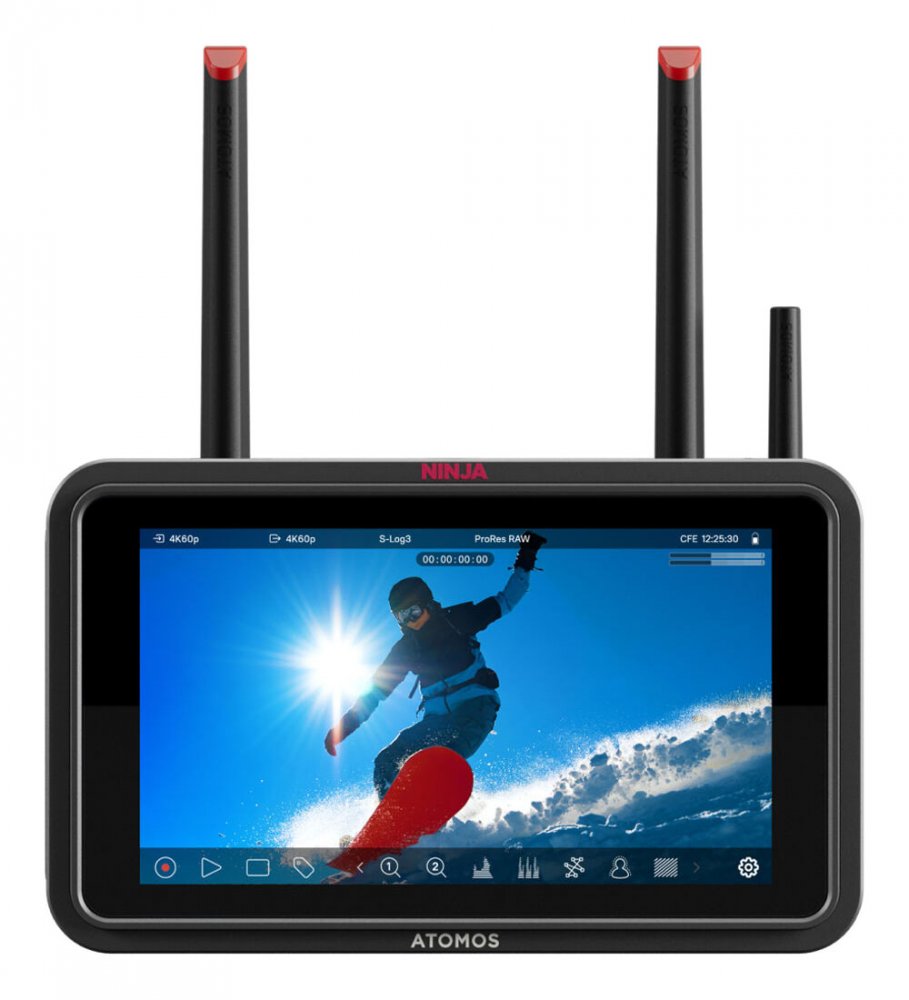

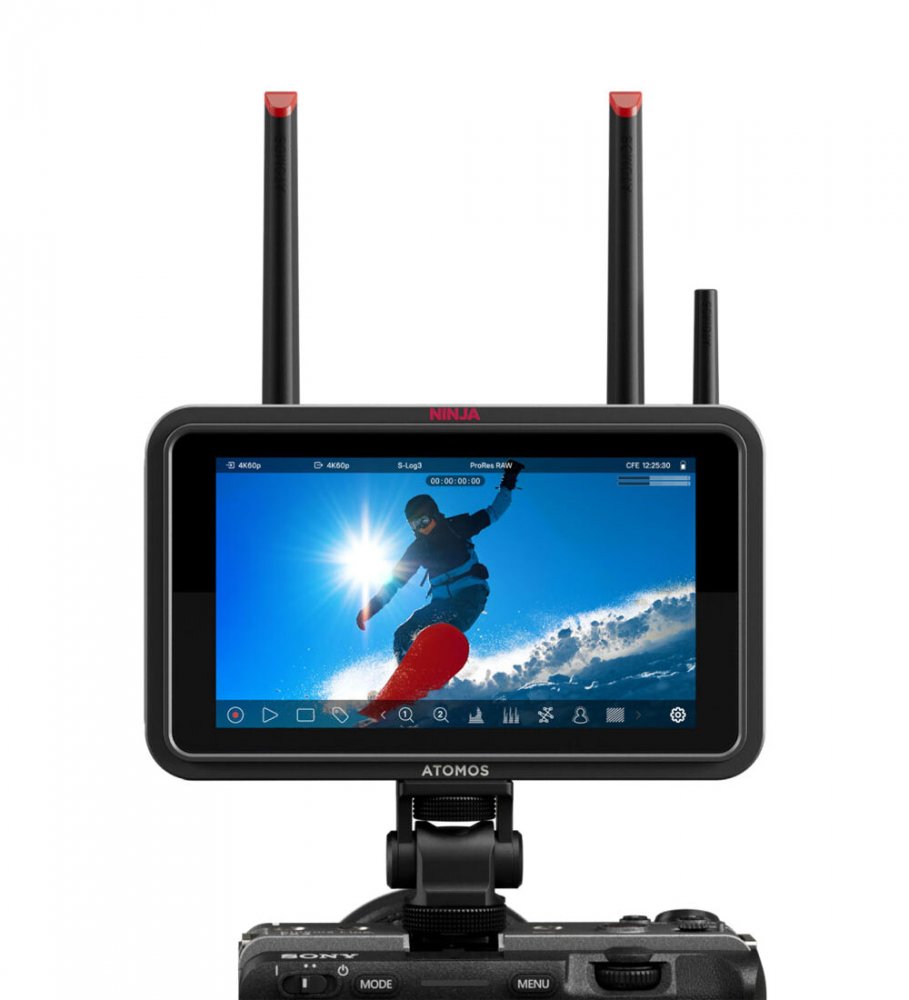

The Atomos Ninja TX redefines what's possible in a 5-inch monitor-recorder. With integrated 12G-SDI and HDMI I/O, built-in Wi-Fi 6E, and support for AirGlu timecode sync, the Ninja TX is designed for high-end video production on the move. It supports recording up to 8Kp30 in Apple ProRes RAW directly to CFexpress Type B cards or certified USB-C drives, making it ideal for filmmakers, content creators, and multicam productions that demand both performance and flexibility.
Ninja TX features a brilliant 1500-nit HDR touchscreen-50% brighter than previous models-perfect for outdoor shooting. It comes preloaded with advanced monitoring tools such as EL Zone false color, focus peaking, waveform, and 3D LUT support. With dual USB-C ports, a unique cable locking system, and versatile power options (USB-C PD, NP-F batteries, or AC adapter), Ninja TX adapts to every production scenario. Integrated wireless capabilities enable seamless Camera to Cloud workflows, NDI streaming, and precise timecode sync-everything you need in a compact, rugged, and powerful on-camera tool.
Features
SDI & HDMI Input/Output: Connect to virtually any camera with built-in 12G-SDI and HDMI 2.0.Bright 1500-Nit Touchscreen: 5-inch display with advanced tools like waveform, EL Zone, and false color for accurate monitoring in any lighting.Records to CFexpress or USB-C Storage: Choose between ultra-fast CFexpress cards or external USB-C drives for flexible, high-speed recording.Up to 8K ProRes RAW Recording: Capture pristine footage in ProRes RAW up to 8Kp30 or 6Kp60, plus simultaneous HD H.265 proxy recording.Built-In Wi-Fi 6E and AirGlu: Share files instantly via Camera to Cloud, and sync timecode wirelessly for multicam productions.NDI 6 / HX3 Streaming: Transmit or receive high-quality video over networks with low latency-ready for live production.Flexible Power Options: Power via USB-C PD, NP-F battery, or AC adapter with a locking connection for dependable shoots.Custom LUTs and HDR Monitoring: Load and preview .cube LUTs, and monitor in HDR with support for HLG, PQ, and multiple Log formats.Secure Cable Locking System: Includes brackets and cables for secure, professional connections-ideal for mobile or rigged use.Full Monitoring Suite: Includes peaking, zebras, frame guides, vectorscope, RGB parade, and anamorphic desqueeze.Cloud-Ready Workflow: Direct uploads to Frame.io, Dropbox, or ATOMOSphere with 20GB free storage-no computer needed.Playlist & Loop Playback: Review recorded clips with custom playlists and looping functionality on-device.
Specifications
General Specifications
5.2 inch HDR touchscreen monitor recorder1500 nit brightness edge-lit display1920 x 1080 resolution, 16:9 aspect ratioAluminium and ABS constructionActive fan cooling systemCompatible with CFexpress Type B and USB 3.0 storageSupports HDMI 2.0 and 12G SDI input and outputWi-Fi 6E, Bluetooth, AirGlu RF and BT built-inUp to 8Kp30 ProRes RAW recordingDual USB-C ports (2.0 and 3.0)Supports Apple ProRes RAW, ProRes, Avid DNxHD/HR, H.265
Video Input/Output

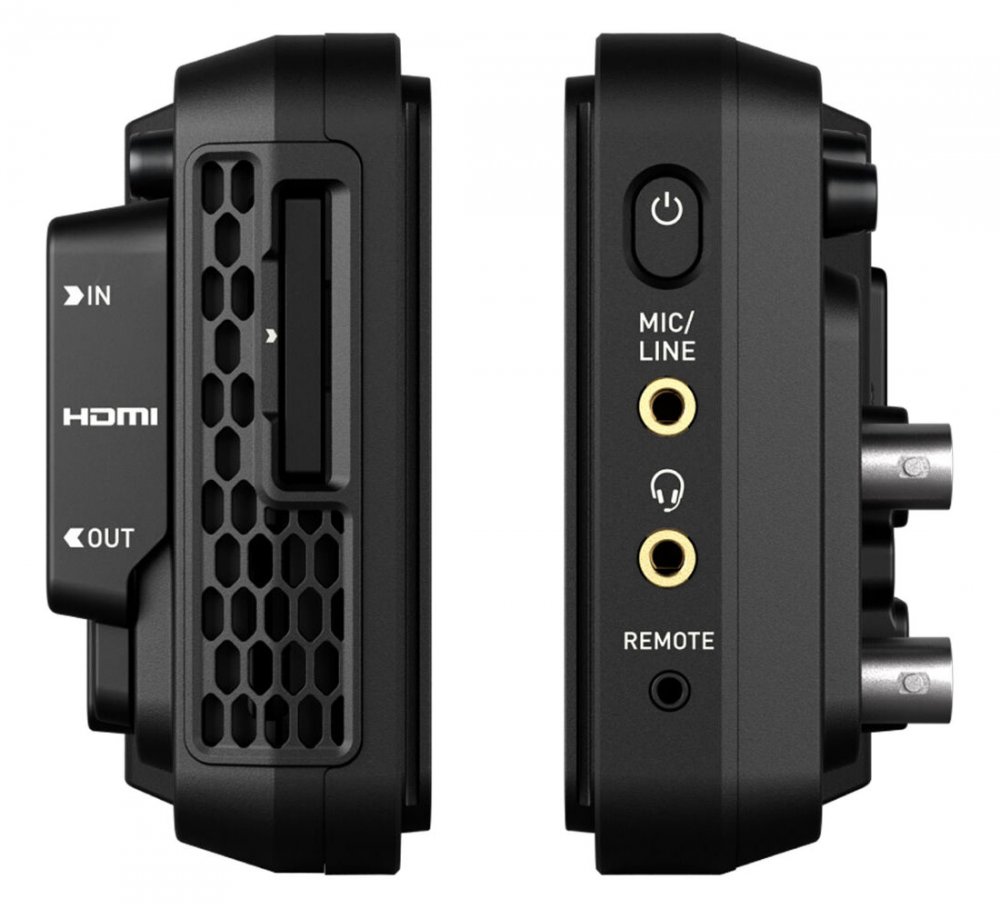

HDMI In 1 x HDMI 2.0, Locking BracketHDMI Out 1 x HDMI 2.0 up to 4K60PSDI In/Out 12GBit Depth 8-bit / 10-bitChroma Subsampling 4:2:2
Audio I/O
HDMI Audio 8-channel, 24-bitSDI Audio 12-channel, 24-bitAnalog In 3.5mm stereo inputHeadphone Out 3.5mm stereo
Timecode and Sync
HDMI/SDI Embedded TimecodeWireless AirGlu RF and BT TimecodeTime of Day Timecode
Supported Resolutions and Frame Rates
Up to 8Kp30 / 6Kp60 ProRes RAW4K DCI/UHD up to 60p1080p up to 120p1080i, PsF supported2K DCI supported720p up to 60p
Storage and File System
CFexpress Type BUSB-C 3.0 storageFile System exFAT
Codecs
Apple ProRes RAW HQ, RAWApple ProRes LT, 422, 422 HQAvid DNxHD 220x, 220, 145, 36Avid DNxHR LB, SQ, HQ, HQXH.265 LQ, MQ, HQ, XQ in 8/10-bit
Monitoring Tools
Waveform, RGB Parade, VectorscopeFocus Peaking, Zoom (1:1, 2x)False Color (ARRI and EL Zone)Zebras, Cine/Social Frame Guides, Onion SkinAnamorphic Desqueeze 1.25x to 2xSafe Areas, Grid MarkersLUT Support .cube format, real-time previewDisplay Flip Vertical
HDR Monitoring
Supports HDR10, HLGCalibratable with Calibrite Display Pro or Plus
Wireless and Cloud Features
Wi-Fi 6E for cloud uploadNDI 6 / HX3 transmit and receiveCamera to Cloud via ATOMOSphere, Frame.io, Dropbox20GB ATOMOSphere storage included

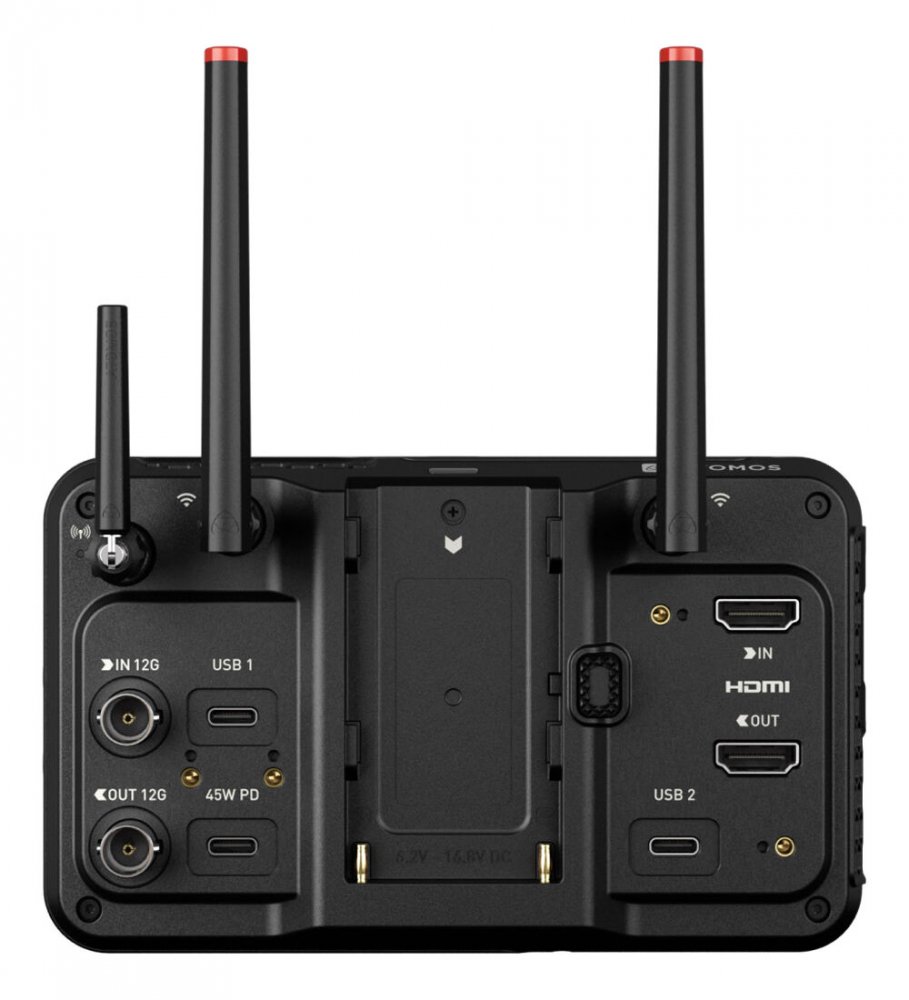

Power Options
NP-F Battery supportUSB-C PD input up to 45WUSB-C PD output up to 13WDC In via Battery EliminatorD-Tap up to 13W
Construction and Environmental
Dimensions 151 x 92 x 36 mmWeight 400gOperating Temp up to 40C
Included Accessories
Ninja TX monitor-recorderUSB-C locking cable adaptorHDMI locking cable adaptorWi-Fi antenna and 5 color tipsAirGlu antenna and capsUSB-C locking cable (45cm)Quick Start Guide
Warranty
1 Year Standard2 Years with Product Registration
