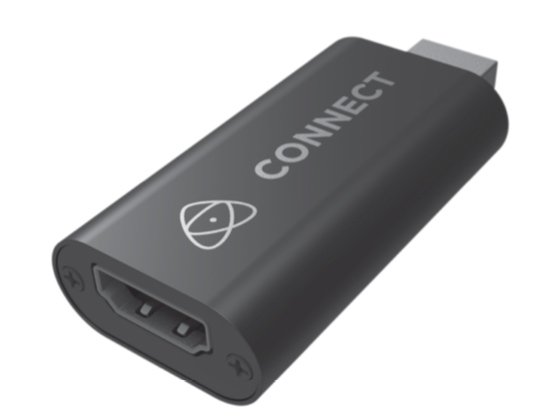

The Atomos Connect is a HDMI to USB Converter for 4K Video/Audio Capture



Connect, Convert, Stream
Atomos Connect, our HDMI to USB converter that allows you to take 4K (up to 30p), HD (up to 60p) or 720p (up to 60p) sources and output the same resolution and frame rate up to a maximum of 1080p60 ready for connection to the USB input on a computer and out to your choice of streaming platform.

Simple operation
Simply connect the HDMI output of your favorite camera, console or Atomos monitor recorder and you're ready to go LIVE! The Connect 4K automatically converts your input to the
widely supported USB Video Class (UVC) standard.

Universally supported
Supported by any CDN/Social platform that supports UVC: Skype, MS Teams, Zoom, Twitch, Youtube & many more.

Specifications

HDMI input: up to 4Kp30
USB output resolution: up to 1080p60 (YUV.JPEG)
Color depth: Supports 8/10/12-bit deep color
HDMI Support: Certified AWG26 HDMI cables up to 15 meters
Software support: Popular acquisition software on Windows, Android & Mac OS
USB support:
Conforms to USB Video and UVC standard
Conforms to USB Audio UAC stan- dard (L-PCM format)
Power: No external power required
Maximum working current: 0.4A / 5V DC
Operating temperature range: -10 to +55 °C.
Dimensions (L x W x H): 64 x 28 x 13mm.
Weight: 21.4g.
Requirements:
To successfully connect, your computer requires application including OBS, StreamLabs OBS, Wirecast or X-Split for enhanced streaming.

SYSTEM REQUIREMENTS
PC i5-3400 or above
NB i7-3537U 2.0GHZ or above

Graphics card:
PC NVIDIA GT630 or above.
NC NVIDIA GT735M or above

Run memory: 4G RAM

Package includes:

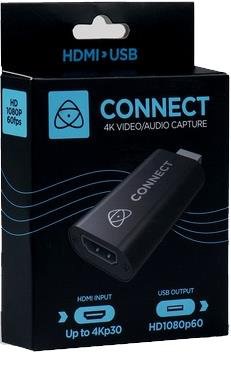

. 1 x Atomos Connect HDMI to USB Converter
. 1 x User manual
GTIN (UPC/EAN) : 814164022460
Manufacturer Part Number : ATOM-CON001
