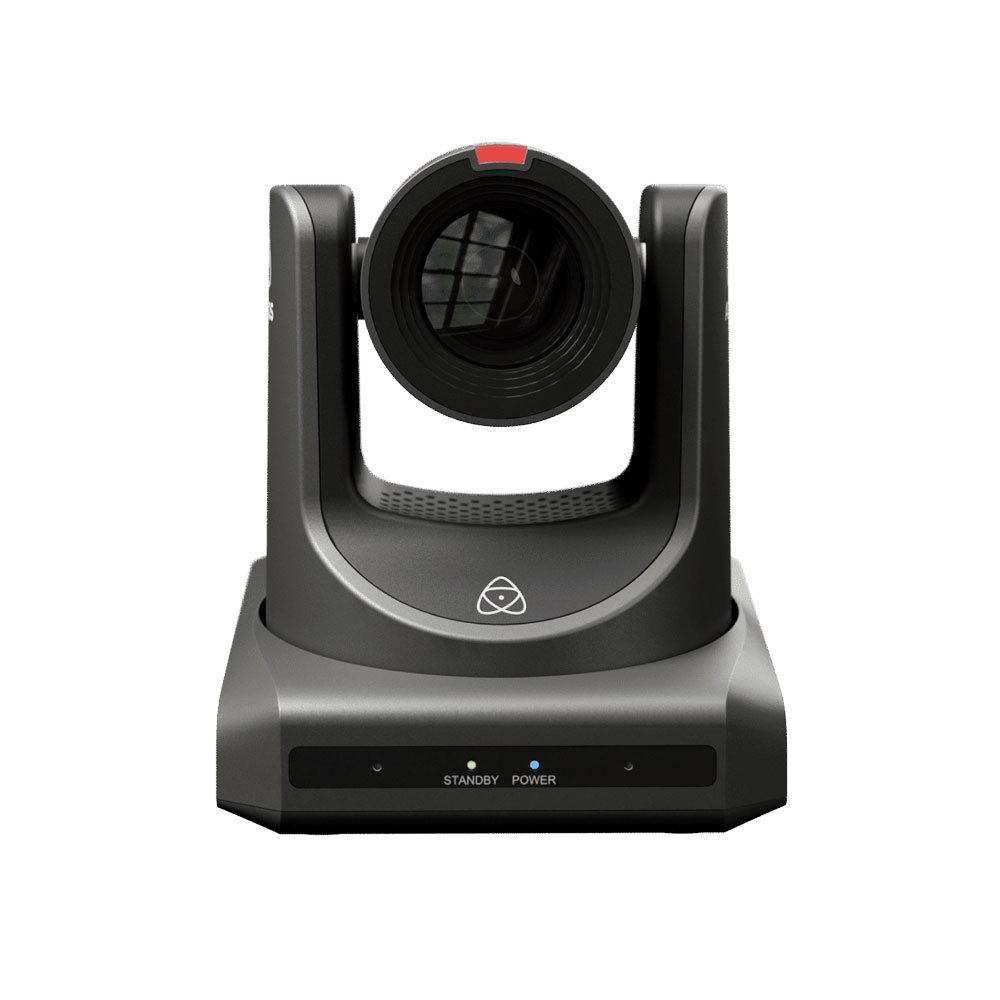

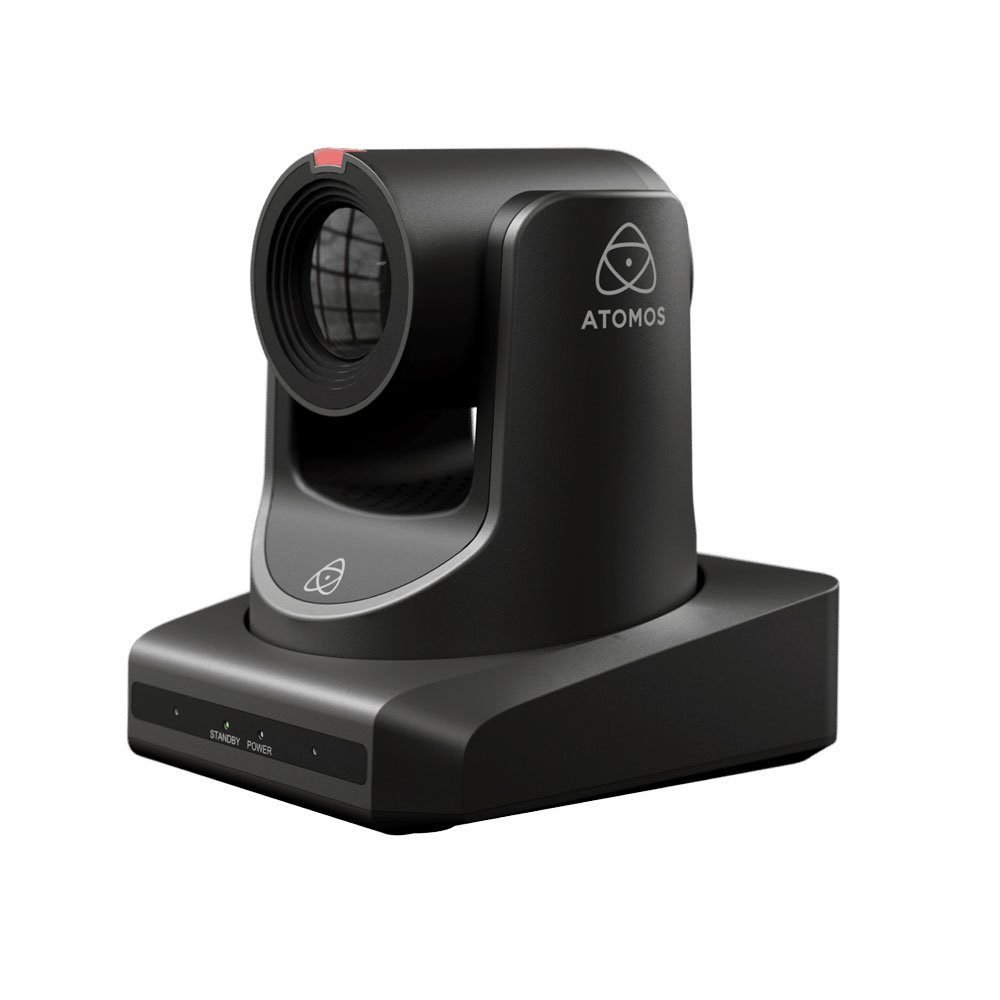

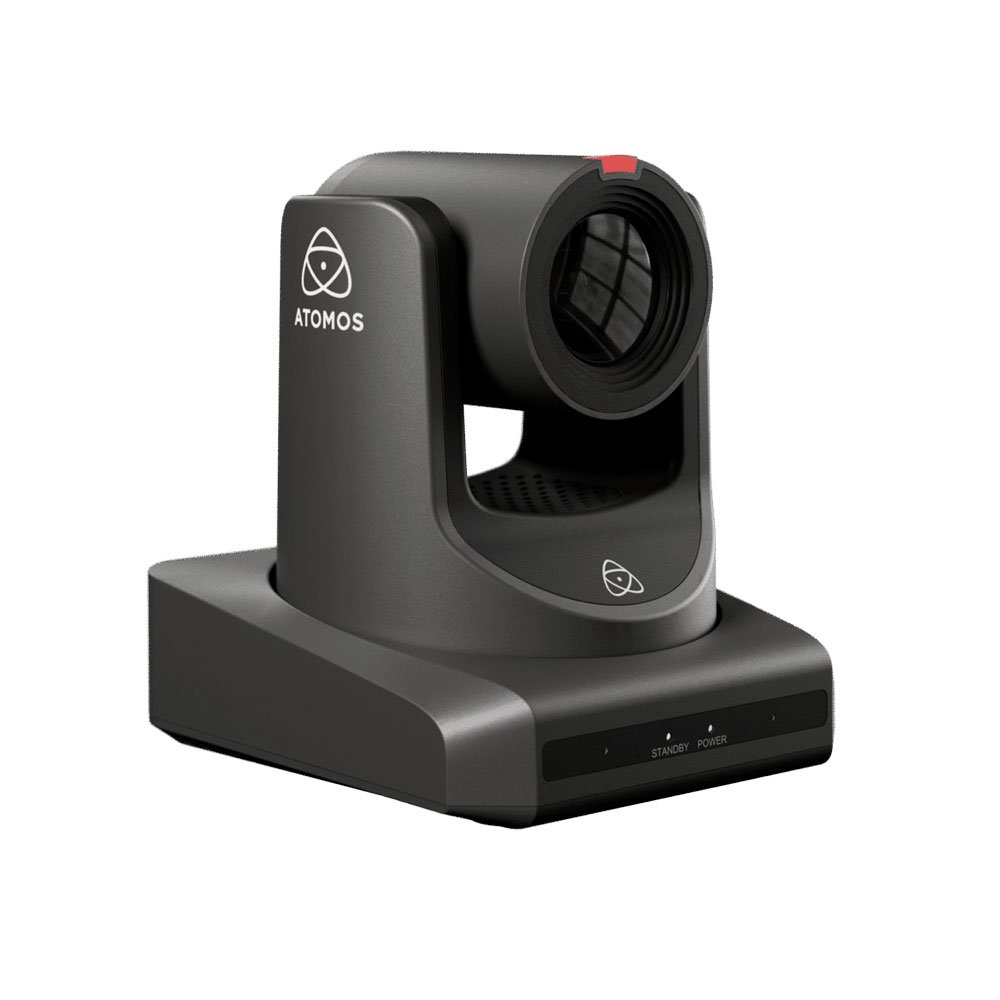

Atomos A-Eye 4K-20X - PTZ Camera
MPN #ATOM-AEHD20
4K AI PTZ camera, 20x optical zoom, 170 degree pan, 30 to 90 degree tilt, auto tracking, HDMI SDI USB IP, PoE plus, 1 over 1.8 inch CMOS, 16x digital zoom, 60 to 3.5 degree FOV
The A-Eye 4K-20X PTZ Camera is an AI-powered UHD camera built for professional multi-camera productions in large venues, stage environments, and live events. Equipped with a 1/2.8-inch CMOS sensor and a powerful 20x optical zoom lens, it delivers sharp, detailed 4K video with smooth PTZ motion across a +/-170 degree pan and -30 degree to +90 degree tilt range.
With intelligent auto-tracking, the camera keeps presenters and performers perfectly framed without the need for an operator. Seamless connectivity through HDMI, SDI, USB, and IP streaming protocols ensures integration into modern workflows, making it an ideal solution for educators, broadcasters, worship leaders, and production teams seeking professional-quality results with ease.
Caractéristiques
AI-Powered Auto-Tracking: Follows speakers or performers with smooth, intelligent PTZ motion.High-Resolution Video: UHD 4K output up to 60fps via HDMI; 1080p over 3G-SDI and USB.20x Optical Zoom + 16x Digital Zoom: Capture wide shots or detailed close-ups with 60 degree "3.5 degree field of view.Versatile Connectivity: HDMI, 3G-SDI, USB 2.0, and IP streaming with support for NDI|HX3, RTMP/S, RTSP, SRT, and ONVIF.Professional Streaming: Dual-stream encoding with H.264/H.265 compression for efficient, high-quality output.Audio Integration: Line input and output, plus audio over HDMI and USB (no built-in mic).Flexible Control: Supports RS-232, RS-485, VISCA, Pelco-D/P, and USB PTZ control.Fast Preset Recall: Up to 255 positions with 0.1 degree accuracy.Quiet, Precise Operation: Smooth pan/tilt speeds (up to 100 degree /s pan) for live productions.PoE+ or DC Power: Simple setup with multiple powering options.Designed for Large Venues: Ideal for stage productions, auditoriums, worship spaces, and multi-camera professional broadcasts.
Spécifications
General Specifications
Model: A-Eye 4K-20X PTZ CameraSensor: 1/1.8 inch CMOS 8.42 MPLens: 20x optical zoom f = 6.25 " 125 mm F1.58 " F3.95Digital Zoom: 16xMinimum Illumination: 0.5 Lux F1.8 AGC ONShutter: 1/30 " 1/10000 sSNR: greater than or equal to 55 dBDNR: 2D and 3D
Mechanical
Pan Angle: plus minus 170 degreesTilt Angle: minus 30 degrees to plus 90 degreesPan Speed: 1.7 " 100 degrees per secondTilt Speed: 1.7 " 69.9 degrees per secondPresets: 255 accuracy 0.1 degreeHorizontal FOV: 60 " 3.5 degreesVertical FOV: 35.7 " 2.0 degrees
Video
Scanning: ProgressiveHDMI Output Resolutions: up to 4K at 60 fps and formats down to 720p3G SDI Output Resolutions: up to 1080p60 and formats down to 720pCompression: YUY2 H.264 MJPEG H.265Formats: YUY2 max 1080p at 5 fps H.264 H.265 MJPEG max 2160p at 30 fps
Network Streaming
First Stream Resolutions: up to 3840x2160Second Stream Resolutions: up to 720x480Video Bitrate First Stream: 32 kbps to 51200 kbpsVideo Bitrate Second Stream: 32 kbps to 20480 kbpsControl: CBR or VBRFrame Rate: up to 60 fps at 60 Hz or 50 fps at 50 HzAudio Compression: AAC at 96 128 or 256 kbpsProtocols: NDI HX3 TCP IP HTTP RTSP RTMP RTMPS ONVIF DHCP SRT Multicast
Audio I O
Input: Line In 3.5 mmOutput: Line Out 3.5 mm HDMI USBNo built in microphone
Control Interfaces
RS 485: 2 pin Phoenix max 1200 m VISCA Pelco D Pelco PRS 232 In: 8 pin Mini DIN max 30 m VISCA Pelco D Pelco PRS 232 Out: 8 pin Mini DIN VISCA network onlyUSB: USB 2.0 Type A supports UVC 1.1 1.5 and PTZ control

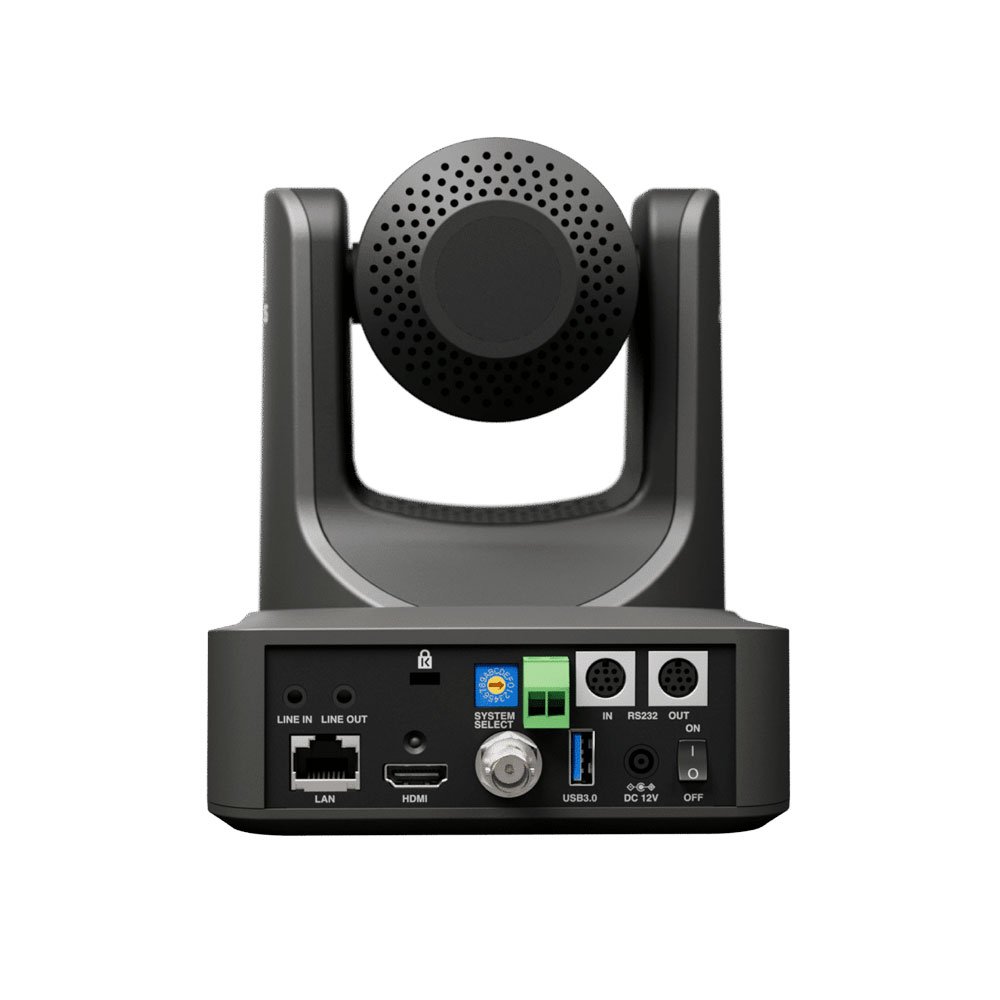

Connectivity
Ethernet: 10 100 MbpsSDI: 3G SDI BNC 800 mVp p 75 Ohm SMPTE 424MHDMI: HDMI version 1.3Power Input: DC 12V JEITA type or PoE plus 802.3atPower Consumption: Max 18 W
Physical
Dimensions W x H x D: 146 x 169 x 168 mmWeight: 1.6 kgOperating Temperature: up to 40 degrees CelsiusBody: ABS
Indicators
Tally Light: YesPower On Indicator: Yes
Package Contents
A-Eye 4K-20X PTZ cameraRS 232 serial cable 2 mUSB 3.0 A A cable 1.5 mLens coverRemote controllerAccessory trayWall mount rackScrew packPower adaptor with 4 plugsQuick Start Guide
Warranty
1 year standard2 years with product registration
