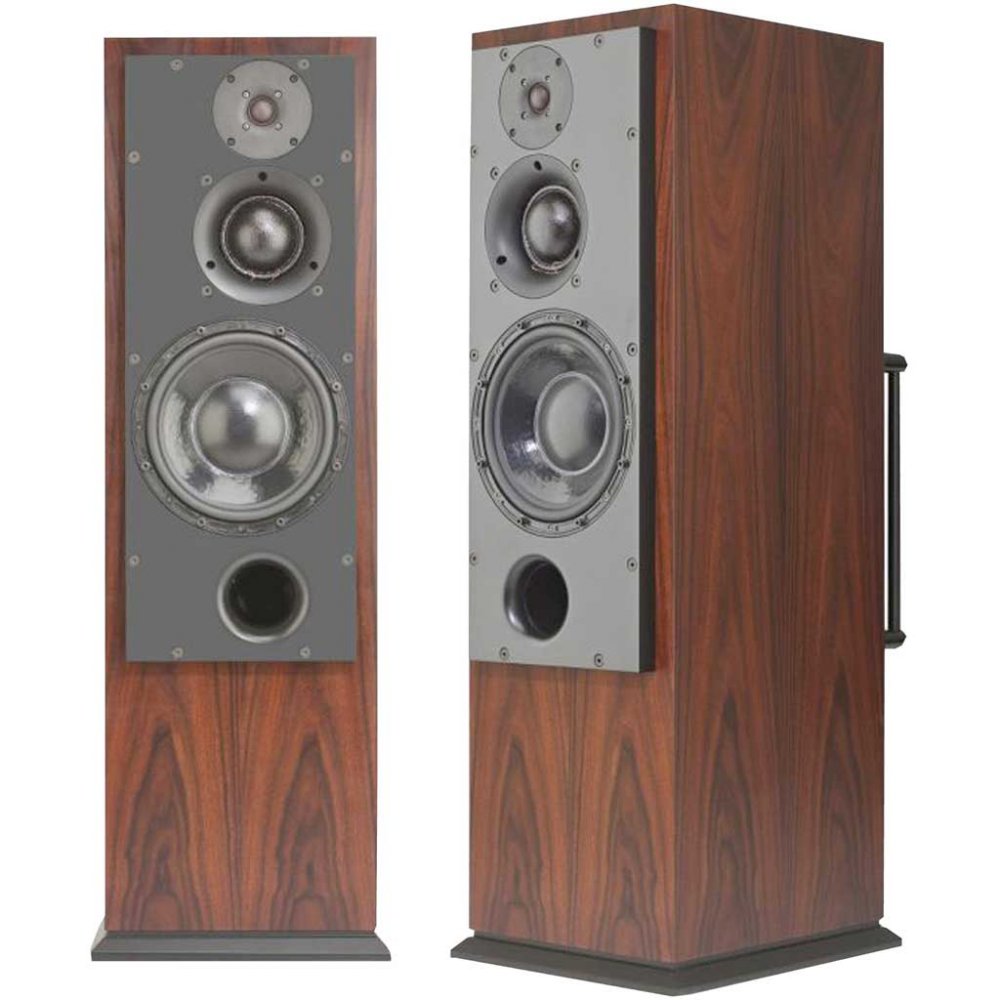

ATC Loudspeakers HiFi SCM50ASLT Standard (Pair)
MPN #SCM50ASLTStandard
Tower Series three way active HiFi speaker with 9" bass driver and on board 350W tri-amp pack, includes stands and fabric wrapped grills
The monitors' ability to reproduce music and speech with phenomenal accuracy, transparency and dynamics lies mainly in the SM75-150S soft dome midrange driver. However, recent modifications that include the new ATC SH25-76S tweeter and enhanced port profile have brought about further improvements to all performance parameters.
Each drive unit in the active model has its own dedicated and individually matched MOS-FET amplifier, while the 234mm/9 bass driver incorporates ATC's unique Super Linear Magnet technology. Our active crossover network consists of a wide band-width, electronically balanced input stage with high common mode rejection and very low distortion.
Like the HF, mid and bass drivers, all electronics are designed and manufactured in-house to create a no-compromise active system. In passive form, the SCM50PSLT provides broad and symmetrical dispersion, excellent amplitude and phase characteristics throughout the frequency range.
Specifications
Drivers: HF 25mm ATC SH25-76S, Mid 75mm ATC Soft Dome, LF 243mm Super LinearFrequency Response (±2dB): 70Hz-20kHzFrequency Response (±6dB): 38Hz-25kHzMatched Response: ±0.5dBDispersion: ±80 Coherent Horizontal, ±10 Coherent VerticalMax SPL: 112dBCrossover Frequencies: 380Hz & 3.5kHzConnectors: Male XLRCrossover Filters: 4th Order Linkwitz-RileyAmplifier Output: 200w LF, 100w Mid, 50w HF (active version)Cabinet Dimensions (HxWxD): 1003x304x470mmWeight: 53.3kg
