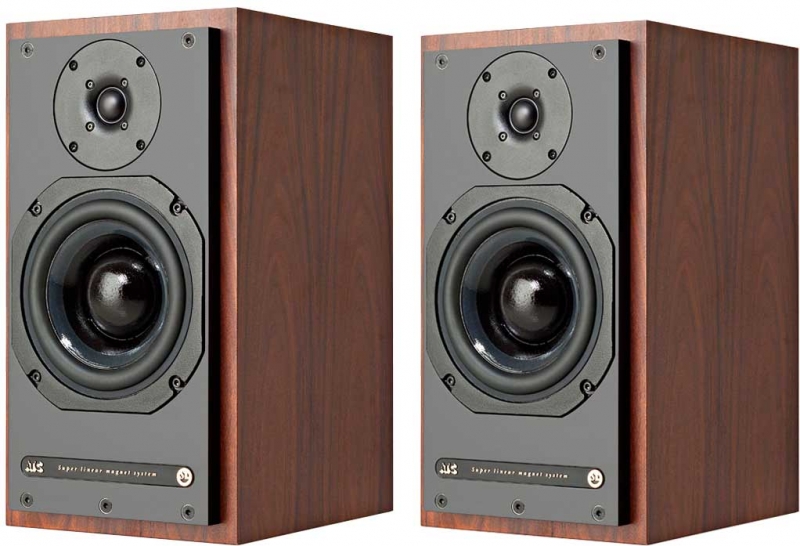

ATC Loudspeakers HiFi SCM20PSL Standard (Pair)
MPN #SCM20PSLstandard
Classic Series two way passive HiFi speaker with Super Linear 6.5" bass driver
The hybrid design incorporates a 150mm bass cone on to which is grafted a 75mm soft dome.
The magnet assembly utilises ATC's unique "SL" technology which greatly reduces distortion in moving coil drive units by a very significant 12-15dB (3rd harmonic). To minimise Time Domain Distortion both dome and cone are made from acoustically "dead" polyester wave material doped with ATC's own formulation.
Not only does the SCM20SL reproduce bass with remarkable articulation and authority, it also has outstanding mid-band clarity, incredible dynamic range, and awesome power handling.
Accompanied by either an ATC SCA2, CA2 preamp or CDA2 MkII the SCM20AT will outperform any other combination in its price range, many costing far more.
An all-time classic still available and in any veneer to special order.
Specifications
Drivers: LF 6.5"/150mm SL (SB75-150SL 8 Ohm), HF 1"/25mm dual suspension Soft Dome (SH25-76S 6 Ohm)Frequency Response -6dB: 60Hz - 20kHzMatched Response: ±0.5dBDispersion: ±80 Coherent Horizontal ±10 Coherent VerticalSensitivity: 85dB/W @ 1metreMax SPL: 108dBCrossover Frequency: 2.5kHzInput Connector: Bi-wire postsRecommended Amplifier Power (see ATC SIA2-150): 75 - 300 WattsCabinet Dimensions(HxWxD): 440x239x333mmWeight: 18kg
