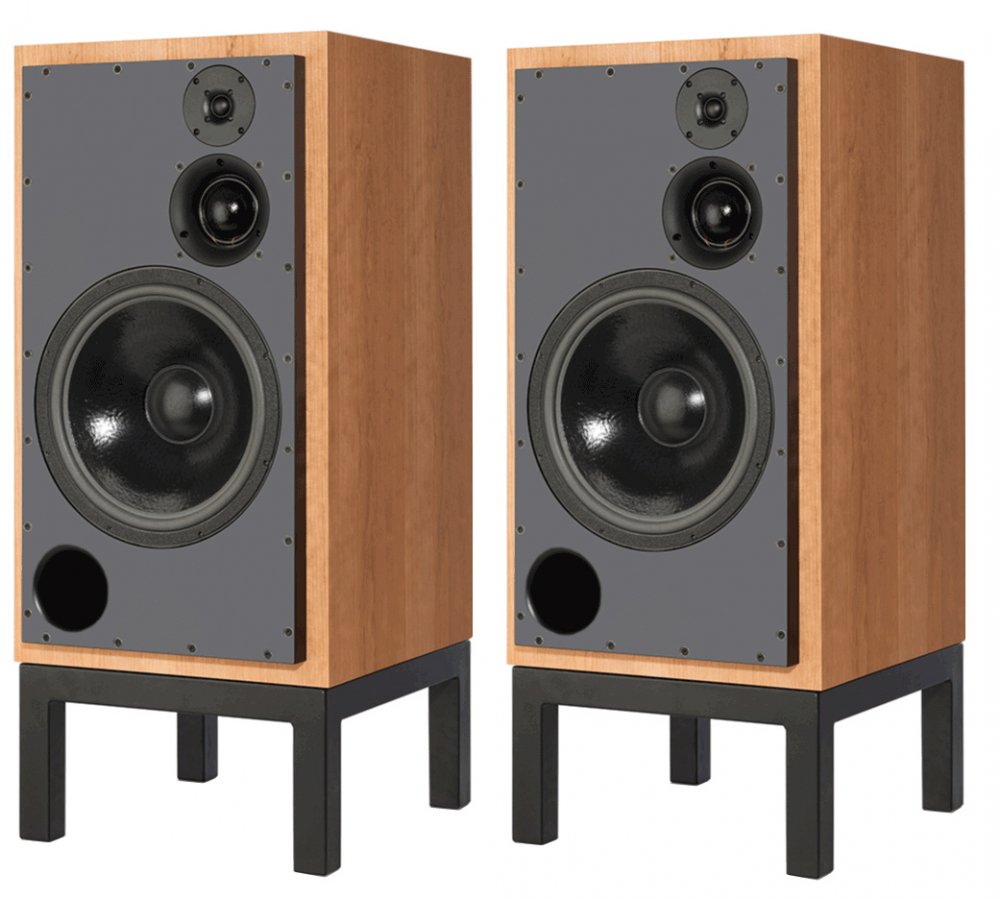

ATC Loudspeakers HiFi SCM150ASL Standard (pair)
MPN #SCM150ASLStandard
Classic Series three way active HiFi speaker with Super Linear 15" bass driver and 350W class AB tri amp pack, includes stands and fabric wrapped grills
The SCM150 ASL (active) are designed to perform at their best with the finest quality hi-fi equipment.
Like their smaller brother, the SCM50 ASL & 100 the monitors' ability to reproduce music and speech with phenomenal accuracy, transparency and dynamics lies mainly in the SM75-150s soft dome midrange driver. However, recent modifications that include an upgraded tweeter and enhanced port profile have brought about further improvements in all performance parameters.
Bass performance is equally impressive, thanks to ATC's 15? professional level bass driver that incorporates the company's unique Super Linear Magnet technology. Bass, mid and HF drive units in the active model have their own dedicated and individually matched MOS-FET amplifiers.
ATC's active crossover network consists of a wide band-width, electronically balanced input stage with high common mode rejection and very low distortion.
Speakers are supplied with stands and fabric wrapped grills.
Specifications
Drivers: HF 25mm Mid 75mm LF 375mm Super LinearAmplitude Linearity ±2dB: 60Hz - 17kHzFrequency Response -6dB: 25Hz & 22kHzMatched Response: ±0.5dBDispersion: ±80 Coherent Horizontal ±10 Coherent VerticalMax continuous SPL @1m: 117dB SPLCrossover Frequency: 380Hz & 3.5kHzInput Connector: XLRInput Sensitivity: 1VInput Impedance: >10k ohms balanced XLRAmplifier Output: HF 50 Watts RMS MF 100 Watts RMS LF 200 Watts RMSOverload Protection: LDR tweeter protection, plus active FET MGR (amplifiers)Power Requirements: Voltage: 100, 115, 230 (factory set)Frequency: 50/60HzPower: Nominal 90 Watts, Driven 350 WattsCabinet Dimensions(HxWxD): 884 x 498 x 568mm including amps (stands add 200mm to height)Weight: 75kg
