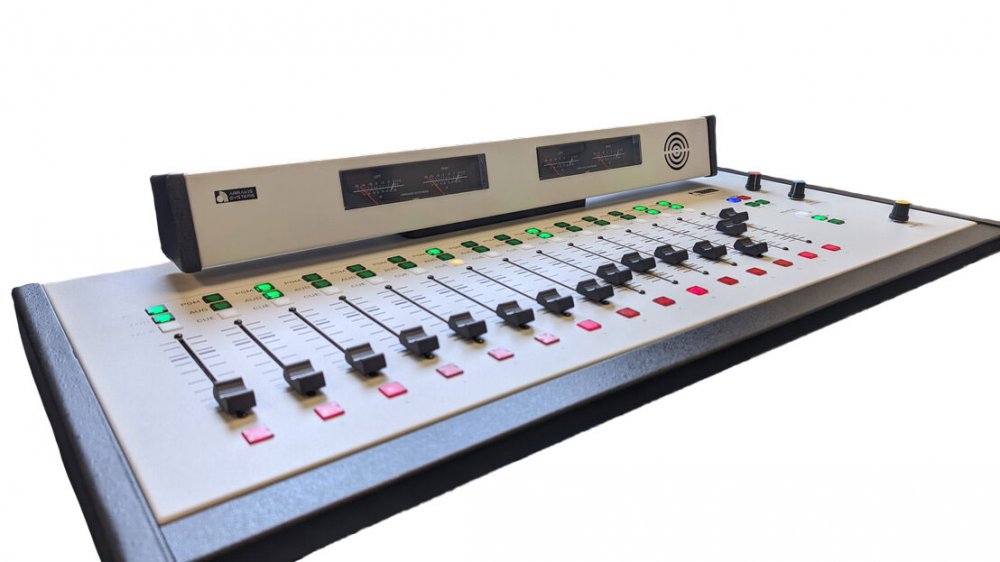

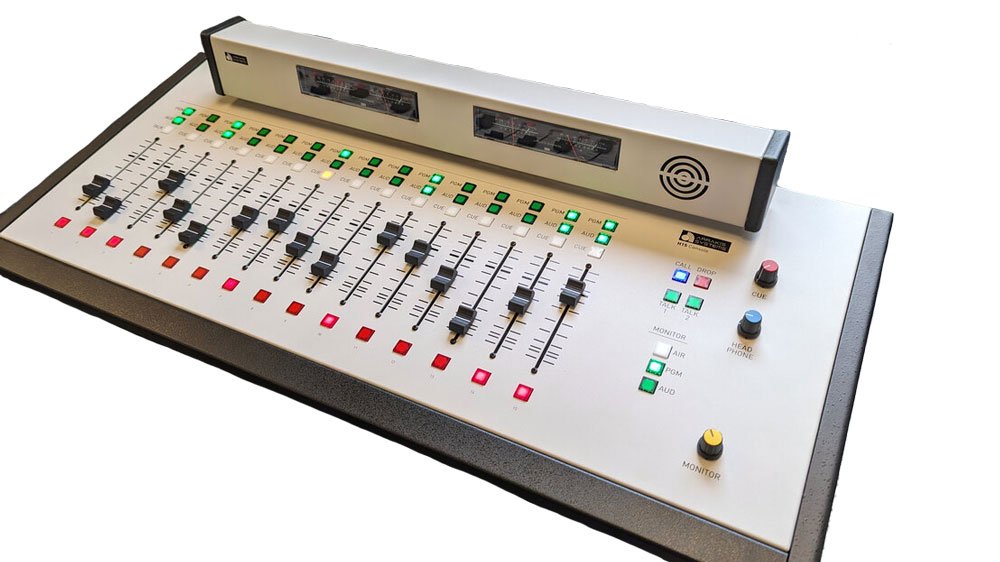

Arrakis Systems H15
15-channel analog console, software control, 5 mic pres, USB, Bluetooth, 2 phone lines, 2 stereo buses, RJ45 I/O, 32-inch wide, built for broadcast studios.
The H15 Console is a professional-grade 15-channel mixer that combines the simplicity and reliability of analog with the power and flexibility of digital control. Designed for modern studios, it delivers exceptional audio quality with 25 total inputs, dual stereo outputs, and balanced/unbalanced summing inputs-making it a versatile solution for broadcasting, podcasting, and production.

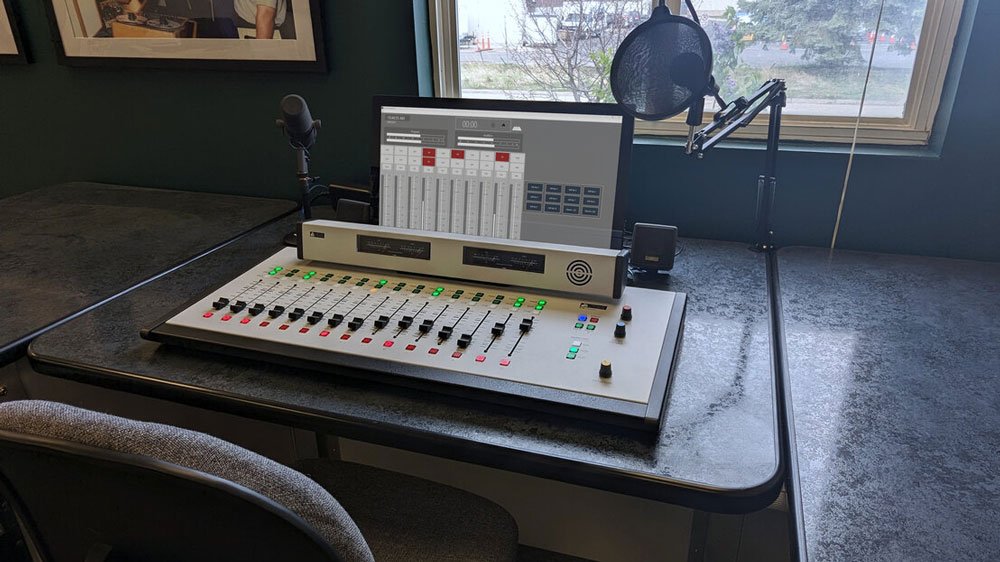

As the industry's first software-controllable analog console, the H15 integrates with H-Series Controller software, enabling remote operation from anywhere in the world. With this software, users can switch channels, monitor input levels, load presets, and manage shows seamlessly. Bluetooth connectivity is built in, allowing direct pairing with smartphones or tablets for streaming audio or taking calls on-air.
The H15 is built to last, with multi-million cycle LED-illuminated switches, conductive plastic faders, and socketed ICs for easy servicing. Its balanced RJ45 connectors provide strong RF resistance, ensuring clean audio even in demanding environments.
Features
15-channel analog studio console with 2 stereo output buses25 total inputs including mic, line, USB, phone, and BluetoothSoftware-controllable via included H-Series Controller (not included with H15-Lite)Supports remote control, channel management, presets, monitoring, and diagnostics1 to 5 mic preamps with dip-switch selection and optional 48V phantom power7 to 12 stereo line inputs with trim control and active balanced RJ45 & unbalanced RCABuilt-in USB sound card for playback and recording with any Mac or Windows PCBluetooth audio input (Channel 15) for streaming or taking calls wirelessly2 phone channels (14 & 15) with hybrid connection, off-air talkback, and mix-minus feedsReal analog VU meters for Program and Audition outputsBuilt-in cue speaker and talkback system with internal amplifierConductive plastic linear faders with dust protection for durabilityMulti-million operation LED-lit momentary switchesBalanced & unbalanced outputs on XLR and RCA connectorsRF-resistant design with active balanced I/O and socketed ICsStereo or mono output options with mono mixdowns for PGM and AUD buses8-ohm headphone amp output plus stereo line-level output for external ampAuto-sensing international power supply (110"220V AC, UL/CE certified)
Specifications
General Overview:
Professional-grade 15-channel studio consoleHybrid analog design with optional software controlDesigned for broadcasting, podcasting, streaming, and studio applicationsFirst analog console with remote software control (H-Series Controller)
Channel Configuration " 5 Input Types:
Mic Channels (1"5): Built-in high-performance mic preamps, XLR inputs with dip-switch selectable mic/line level, Optional 48 Volt phantom power (accessory), Channel 1 includes Talkback function to studio monitorStereo Line Channels (6"12): Balanced RJ45 and unbalanced RCA inputs, Rear dip-switch selectable stereo line inputs, Trim pots for level adjustment per channelUSB Channel (13): PC/Mac digital I/O via USB (soundcard functionality), Play and record using any DAW or software, Direct digital audio transfer and remote automation supportPhone Channels (14"15): Dual phone hybrid connectivity, Mix-minus feed to callerTalkback/Cue functionality for off-air conversationBluetooth Channel (15): Stream audio or take calls via Bluetooth, Compatible with smartphones, tablets, and landline phones with Bluetooth headset mode
Monitoring & Outputs:
Dual stereo output buses: Program & Audition (Pgm & Aud)Both balanced (XLR) and unbalanced (RCA) outputsStereo and mono mixdown options availableSub-Out for customizable headphone mixes2 headphone outputs: stereo balanced line and headphone ampReal VU meters with backlight for Pgm & Aud
Routing & Control Features:
Software control via H-Series ControllerFeatures include: Global channel control, User presets, Logic control and level monitoring, Pre-fader remote access, Auto-restore after power loss, Scene memory, Up/down timerSound pads with MIDI sync for effects, jingles, and samplesMIDI I/O and USB MIDI for integration with external gear and appsTwo AUX sends with pre/post-fader options
Build Quality & Durability:
Conductive plastic linear faders with dust coversLED-illuminated, momentary switches (5 million+ operation lifespan)Socketed ICs for serviceabilityRF-resistant balanced input/output designBuilt tough for professional 24/7 operation
Connectivity & Integration:

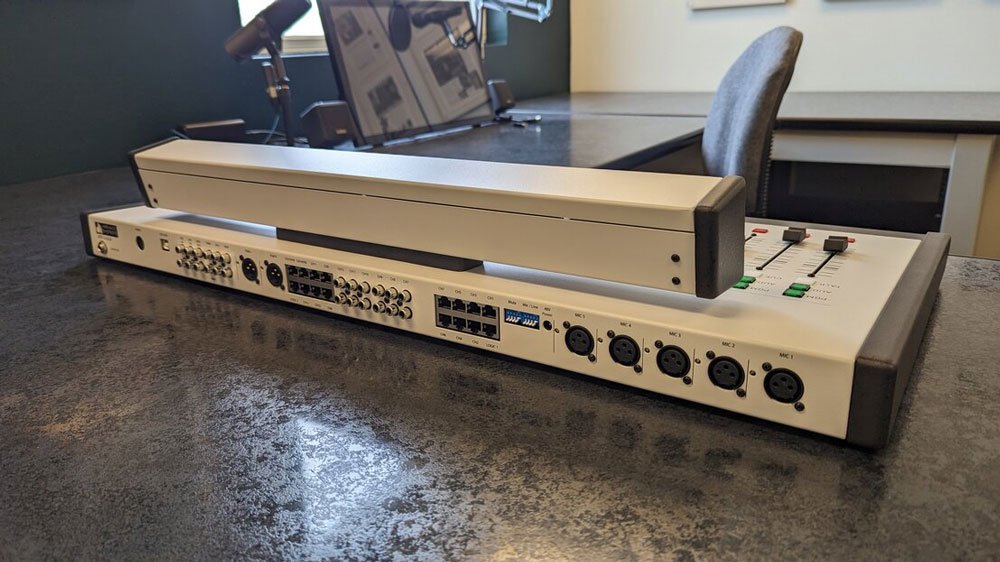

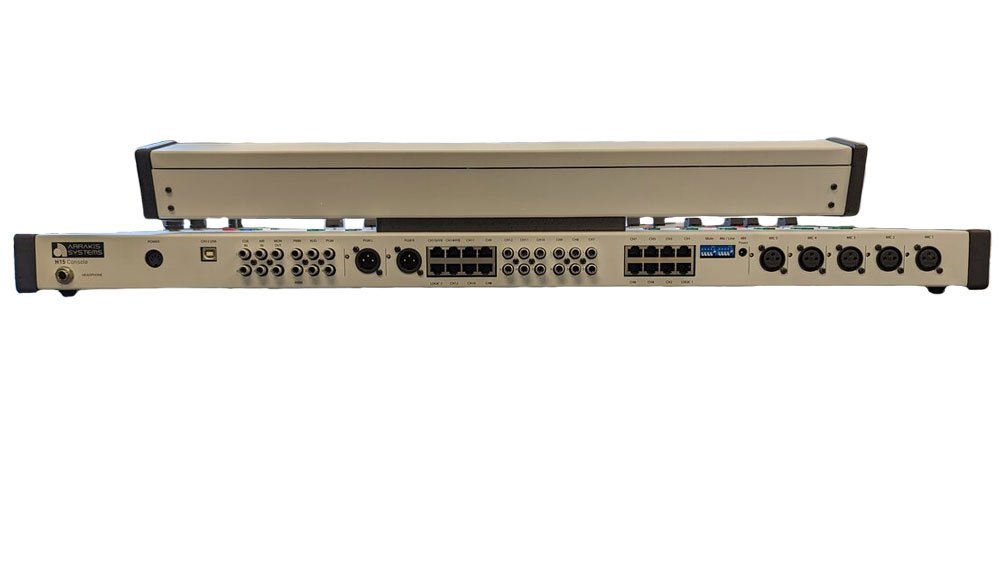

RJ45 balanced audio inputs " compatible with standard audio pinoutsIncluded RJ45, USB, RCA, and 3.5mm audio cablesOptional pre-made cabling for XLR/RCA availableAuto-sensing international power supply (110"220 VAC, UL/CE certified)
Stereo Line Input:
Frequency Response: +/-0.5 dB, 20 Hz"20,000 HzSignal-to-Noise Ratio: -82 dB typ (+8 dBu in/out)Total Harmonic Distortion: 0.01% typ (+8 dBu in/out)CMRR: -75 dB typ @ 1 kHzMax Input Level: +23 dBu
Mono Mic Input:
Frequency Response: +/-0.5 dB, 20 Hz"20,000 HzEquivalent Input Noise: -115 dBu typ (-50 dBu in, +8 dBu out)Total Harmonic Distortion: 0.05% typ (-50 dBu in, +8 dBu out)CMRR: -60 dB typ @ 1 kHz
System Performance:
Max Output Level: +23 dBu (balanced)Stereo Separation: -75 dB typ @ 1 kHzCrosstalk (Pgm to Aud): -80 dB @ 1 kHz, -70 dB @ 20 kHzCrosstalk (Cue to Pgm): -90 dB @ 1 kHz, -75 dB @ 20 kHz
Physical Specifications:
Console Dimensions: W-33 inches (839 mm), D-15 inches (381 mm), H-5.25 inches (133 mm)Shipping Dimensions (Box #1): W-12 inches (305 mm), H-19 inches (483 mm), D-37 inches (940 mm)Weight: 40 pounds (18 kilograms)
Included Accessories:
H15 ConsolePower supply (auto-sensing 110/220 VAC)Operations manualUSB cableRCA cable6 x RJ45 cables3.5 mm audio cable
