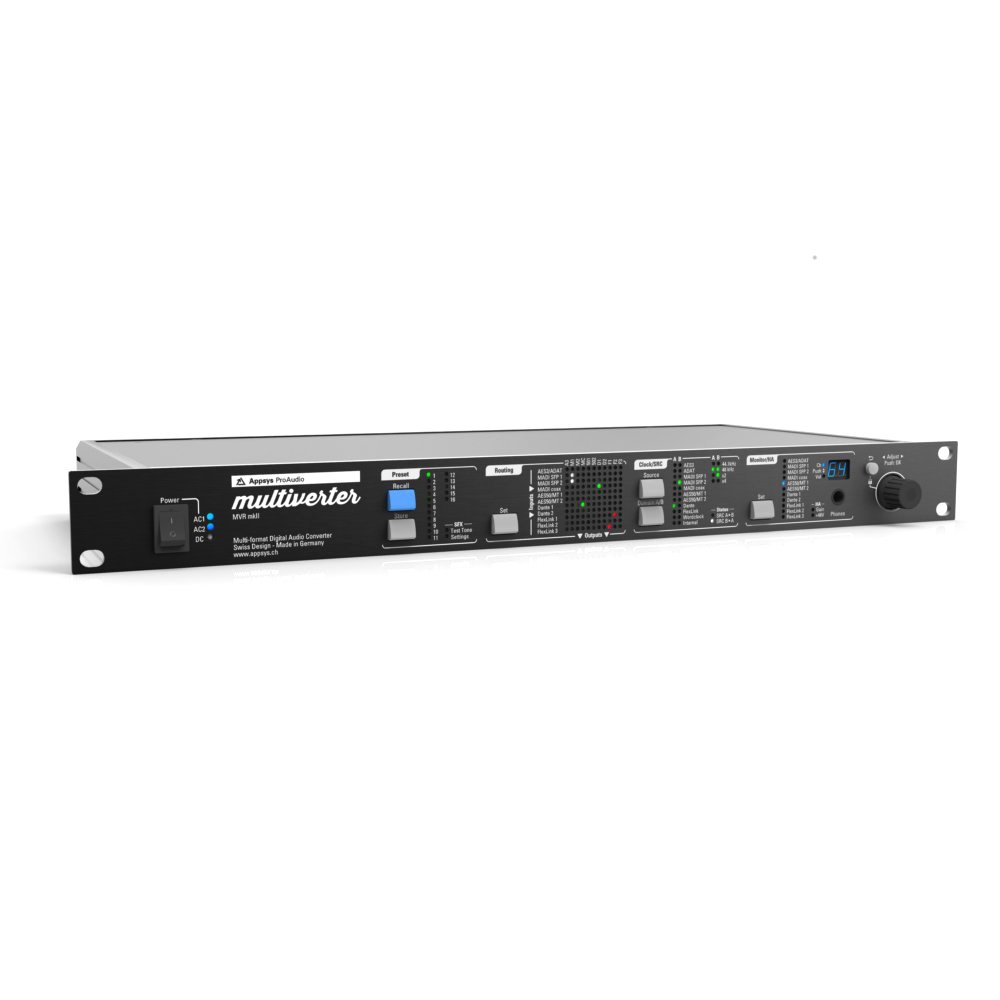

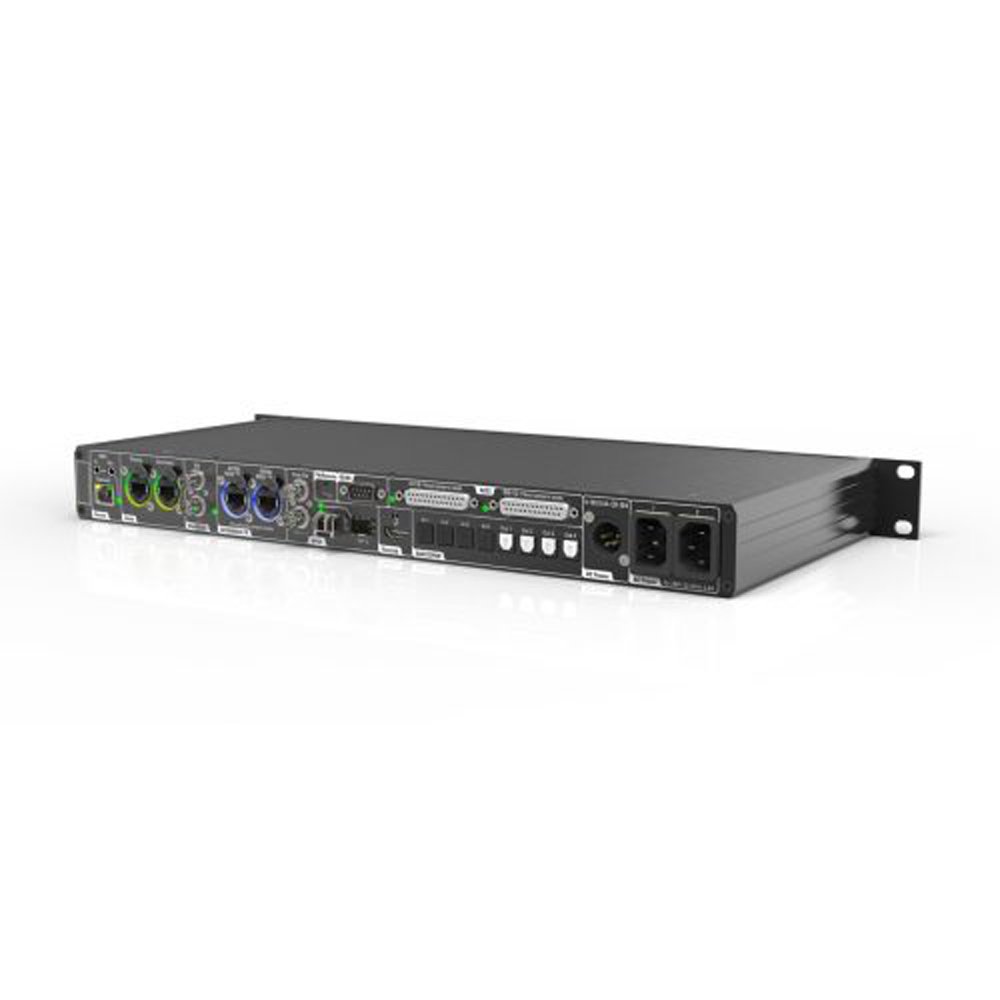

Appsys ProAudio AppSys Multiverter MKII
MPN #MVR-64 mkII
Appsys MVR-64 mkII Multiverter: 64x64-channel digital multi-format converter supporting seamless integration between ADAT, MADI, Dante, AES67, and more.
The Appsys ProAudio MVR-mkII Multiverter is a powerful digital audio format converter that facilitates seamless integration between diverse audio interfaces. It offers a 704x704 channel routing matrix, enabling precise channel-wise routing and splitting across multiple formats simultaneously. Supported interfaces include AES3 (16x16 channels), ADAT, S/PDIF, AES3 optical, MADI (coaxial and dual SFP ports), AES50 (up to 2 ports), MADI-TP (up to 2 ports), and Dante, making it one of the most versatile tools for digital audio workflows.
The MVR-mkII operates at sample rates from 44.1 kHz to 192 kHz and features ClockShield? technology for stable operation, even during clock dropouts of up to one second. An optional Sample Rate Conversion module (SRC-64) allows for bidirectional conversion of up to 128 channels. Control is accessible via a web interface, USB, or command line, offering flexibility for remote management in various setups. Additional features include an integrated headphone amplifier for signal monitoring, a test tone generator, and support for storing and recalling up to 16 presets.
Features
64x64 Channel Multi-Format Conversion: Seamlessly bridges various digital audio formats, including MADI, Dante, AES/EBU, ADAT, Toslink, and USB.Versatile Audio Routing: Allows customizable routing between input and output formats, enabling complex audio workflows.High-Resolution Audio: Supports up to 192kHz sample rates with pristine sound quality across all formats.Built-In Sample Rate Conversion (SRC): Provides real-time conversion for interoperability between devices with different clocking and sample rates.Flexible Connectivity: Features a wide array of I/O options for comprehensive system integration.Web-Based Control Interface: Offers an intuitive platform for routing configuration, monitoring, and firmware updates.Compact and Robust Design: Lightweight yet durable, perfect for use in studios, live events, or broadcast setups.
Specifications
AES3: 16 input and 16 output channelsADAT: 4 input and 4 output ports; 8 channels at 44.1/48 kHz, 4 channels at 88.2/96 kHz, or 2 channels at 176.4/192 kHzMADI:SFP: 2 ports for multimode fiber connectionsCoaxial: 1 port for standard AES10 coaxial connectionsTwisted Pair (MADI-TP): Up to 2 ports, compatible with AES-X 213 standardAES50: Up to 2 ports, compliant with AES50 3.1 standardDante: 64 input and 64 output channels at 44.1/48 kHz; 32 channels at 88.2/96 kHz; 16 channels at 176.4/192 kHzFlexLink: Supports up to 192 additional channels via Flexiverter breakout boxesSample rate conversion: Optional SRC-64 plug-in module supports bidirectional conversion for up to 64 channelsClocking options:Sample rates from 44.1 kHz to 192 kHzWord clock input and output via BNC connectorsClock master selectable from any incoming audio signal, BNC input, or internal high-quality clockRemote control:Integrated web interface accessible via Ethernet or USBCommand-line control via telnet or UARTAdditional features:Integrated headphone amplifier for monitoring any incoming signalTest tone generator for troubleshootingPreset storage and recall for up to 16 configurationsTriple-redundant power supply with two 90-240V AC inputs and one 9-18V DC inputMIDI and RS485 embedding/de-embedding into MADI streams, compatible with RME?/DirectOut? standardsTransparent forwarding of MADI control dataDimensions: 482 mm (W) x 45 mm (H) x 230 mm (D)Weight: Approximately 2.25 kg
