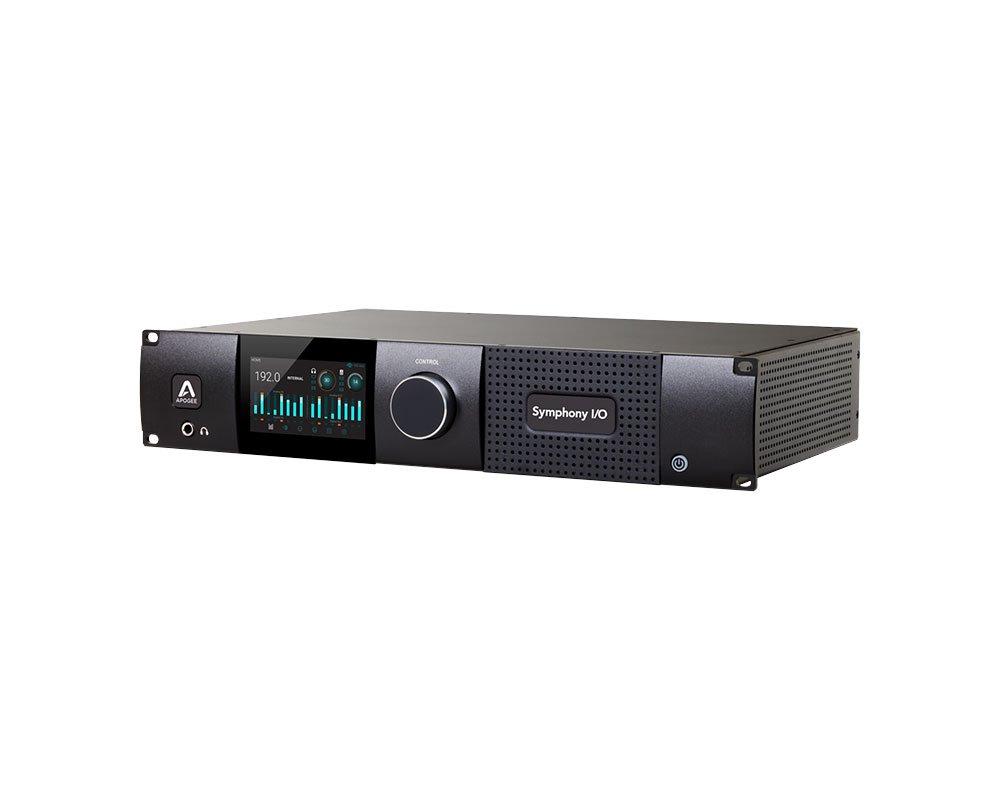

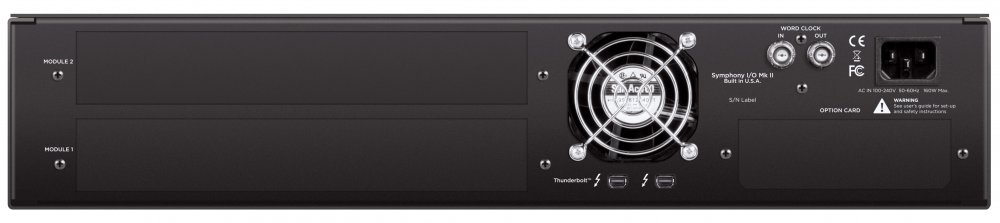

The Symphony I/O MkII Chassis with Thunderbolt offers the foundational power of Apogee's flagship audio interface, providing a modular, expandable platform ideal for professional studios. Designed for users who want to customize their audio workflow from the ground up, this configuration includes the Symphony MkII chassis and Thunderbolt connectivity-but does not come pre-installed with any I/O modules.
This setup is perfect for studios seeking maximum flexibility. With support for up to 32 channels of analog I/O and full integration with macOS via Thunderbolt, it delivers ultra-low latency, pristine AD/DA conversion, and a future-proof design. The intuitive front-panel touchscreen allows easy access to settings and monitoring, making it an excellent hub for high-end recording, mixing, or immersive audio production environments.
Caractéristiques
Includes the Symphony Mk II chassis with Thunderbolt connectivity.
Allows full customization with modular I/O cards (sold separately).

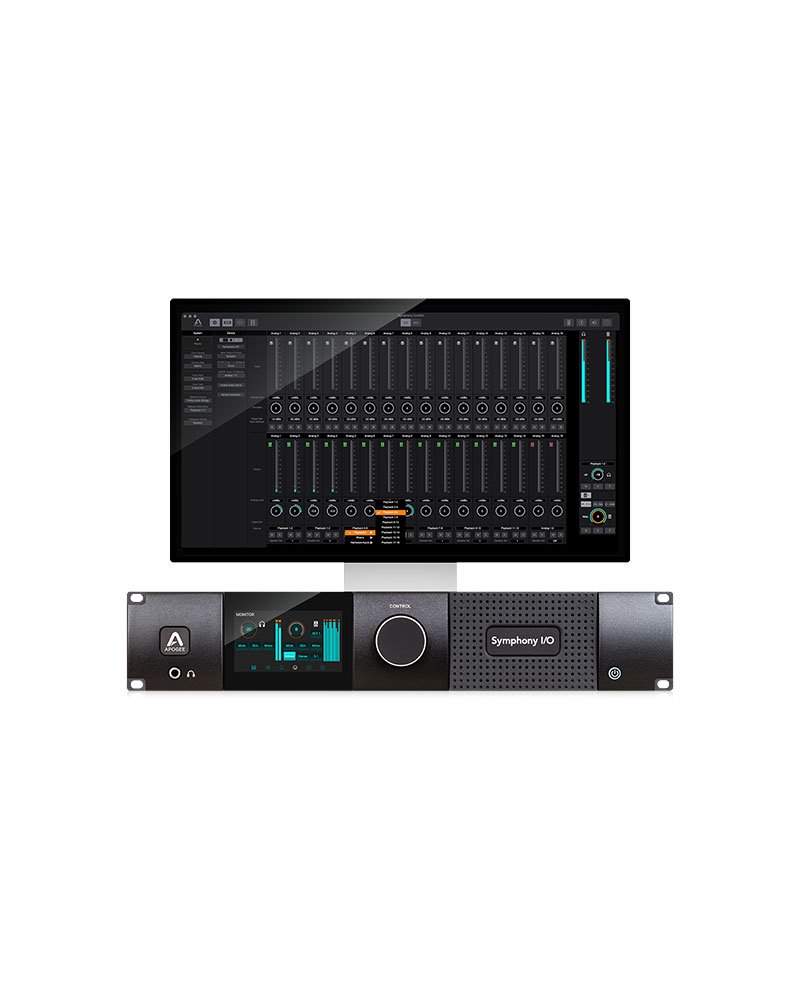

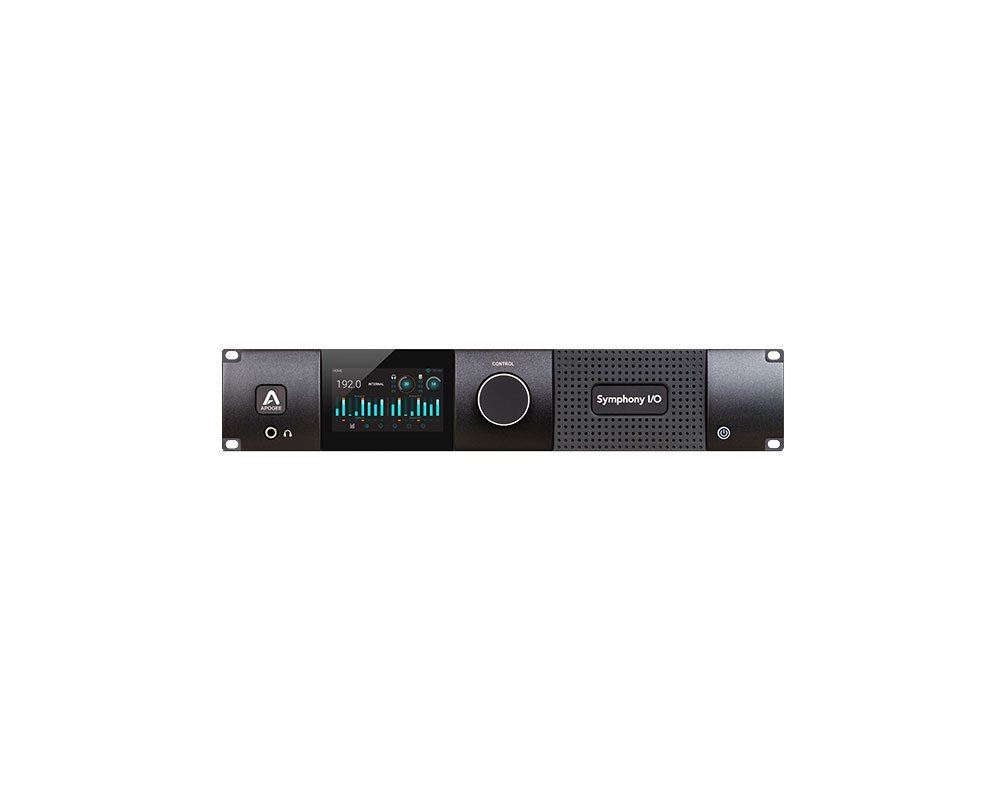

Features an intuitive front-panel touchscreen for control and monitoring.
Supports up to 32 channels of analog I/O when fully configured.
Offers ultra-low latency and superior AD/DA conversion performance.
Ideal for studios using Mac OS with Thunderbolt connection.
Ready for immersive audio setups including Dolby Atmos workflows.
Built in the USA for professional reliability and long-term use.
Spécifications
General Specifications:
Product: Apogee Symphony Mk II
Model: Symphony I O MKII Chassis with Thunderbolt
Configuration: Chassis only with Thunderbolt connectivity, no I O modules installed
Display: Intuitive touchscreen interface
Modularity: Supports up to 32 channels of modular analog I O (via optional I O modules)
Power: 90 to 240 VAC, 50 to 60 Hz, 150 W
Build: Designed and built in the USA
Connectivity:
Platform: Thunderbolt
Compatibility: Mac OS 10.10 and above
Alternate Options Available: Pro Tools Plus and Waves SoundGrid (not included in this configuration)
Digital Conversion Specifications (when modules installed):
AD THD plus N: minus 115 dB at 22 dBu unweighted
AD Dynamic Range: 122 dB A weighted
DA THD plus N: minus 119 dB at 21 dBu unweighted
DA Dynamic Range: 126 dB A weighted
Frequency Response: 44.1 kHz to 20 kHz plus minus 0.05 dB
Headphone Output:
Front Panel Output: 1 stereo quarter inch
THD plus N: minus 110 dB at 19 dBu into 600 Ohm, minus 101 dB at 14 dBu into 32 Ohm
Dynamic Range: 121 dB A weighted
Output Circuitry: Apogee Constant Current Drive
Monitor Control and Immersive Audio:
Thunderbolt Monitor Workflows: Up to 32 speaker outputs
Immersive Audio Support: Dolby Atmos and Sony 360 Reality Audio
Use Case:
Ideal for studios building custom configurations
Requires user-selected I O modules for audio input and output functionality
SKU:
SKU : SYM2
Configuration: Symphony I O MKII chassis with Thunderbolt only, no I O modules included
