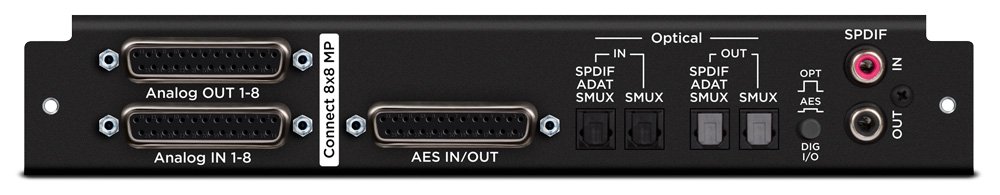

Apogee Symphony I/O MkII 8x8+8MP Connect Series Module
UPC/EAN #805676302447
MPN #CONNECT-8X8-MP
AD/DA conversion module for the Symphony I/O Mk II chassis with 8x8 analog I/O, 8x8 AES/Optical I/O and 8 mic preamps
The I/O Modules are the sound and soul of Symphony I/O Mk II, and represent over 30 years of Apogee R&D and design excellence. These powerful Modules deliver Apogee's core competency: superior sounding digital audio recording. With multiple I/O and Mic Preamp modules available, you can choose from base configurations or expand to grow your studio's capabilities.
Specifications
INPUTS
Analog IN: 8 balanced inputs on 1 DSUB 25-pin connector
8 microphone preamps with up to 72dB of gain
Featuring Advanced Stepped Gain Architecture?
*AES-EBU IN: 8 inputs on 1 DSUB 25-pin connector
(192k single wide compatible)
*Optical IN: Supports ADAT, SMUX & S/PDIF
ADAT: 8 channels 44.1-48 kHz
SMUX: 8 channels 88.2-96 kHz
S/PDIF: 2 channels, up to 96 kHz
Coax IN: 2 channels of S/PDIF, up to 192 kHz
OUTPUTS
Analog OUT: 8 balanced outputs on 1 DSUB 25-pin connector
*AES-EBU OUT: 8 outputs on 1 DSUB 25-pin connector
(192k single wide compatible)
*Optical OUT: Supports ADAT, SMUX & S/PDIF
ADAT: 8 channels 44.1-48 kHz
SMUX: 8 channels 88.2-96 kHz
S/PDIF: 2 channels, up to 96 kHz
Coax OUT: 2 channels of S/PDIF, up to 192 kHz
