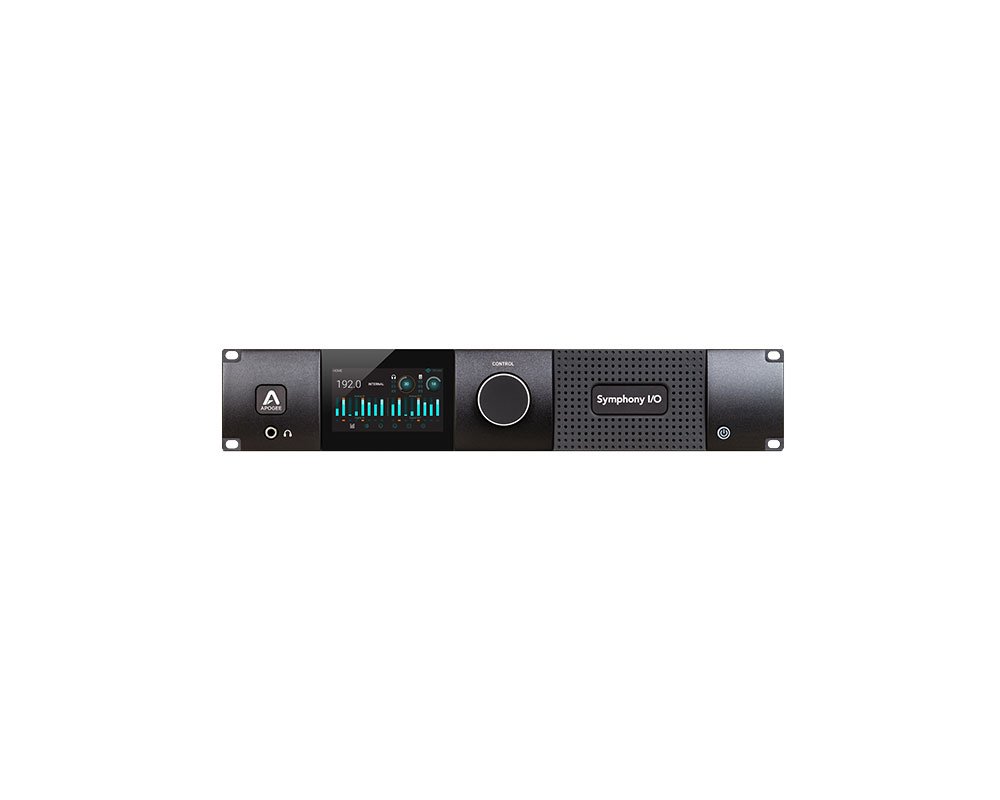

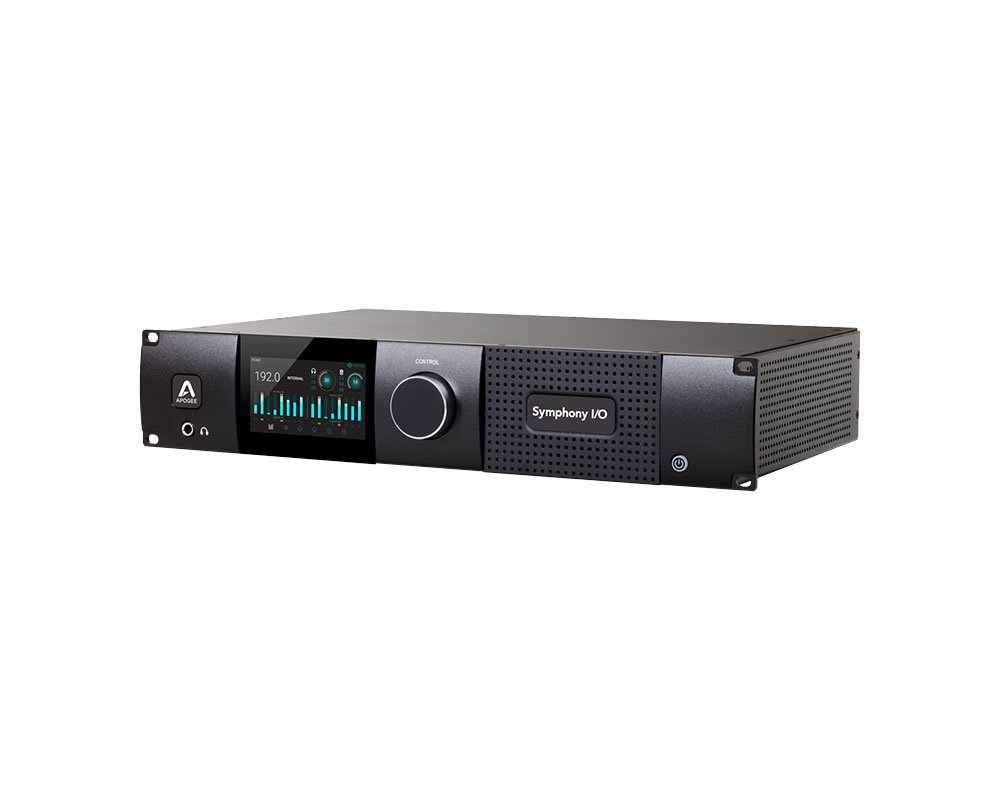

Apogee Symphony I/O MkII 32X32SE-TB-DAN
UPC/EAN #805676303291
MPN #SYM2-32X32SE-TB-DAN
32 line in, 32 line out, dual 16x16 modules, Thunderbolt, Pro Tools HD and Dante connectivity, AD/DA conversion, Dolby Atmos ready, modular I/O system

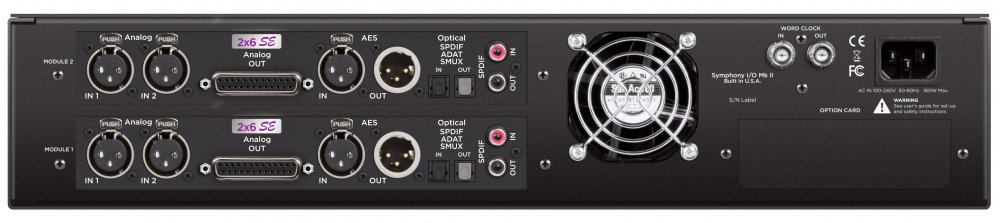

The Symphony I/O MkII 32X32SE-TB-DAN is Apogee's ultimate solution for high-capacity, high-performance audio interfacing in professional studio environments. Designed for engineers and producers working with expansive setups or immersive audio formats, this configuration includes dual 16-16 Special Edition line I/O modules, delivering a staggering 32 analog inputs and 32 outputs. These are routed through four DB25 connectors per module and supplemented with S/PDIF digital connectivity.
Equipped with Thunderbolt, Pro Tools HD Plus, and Dante interface cards, this unit provides maximum flexibility for hybrid workflows across Mac and PC platforms. Whether you're integrating into a Pro Tools HDX system, routing over a Dante network, or relying on Thunderbolt for ultra-low latency, this interface is ready for anything. Built for demanding applications like Dolby Atmos or large-scale multitrack production, the Symphony I/O MkII 32X32SE-TB-DAN merges elite conversion quality with expansive I/O and robust control to form the centerpiece of any world-class audio rig.
Features

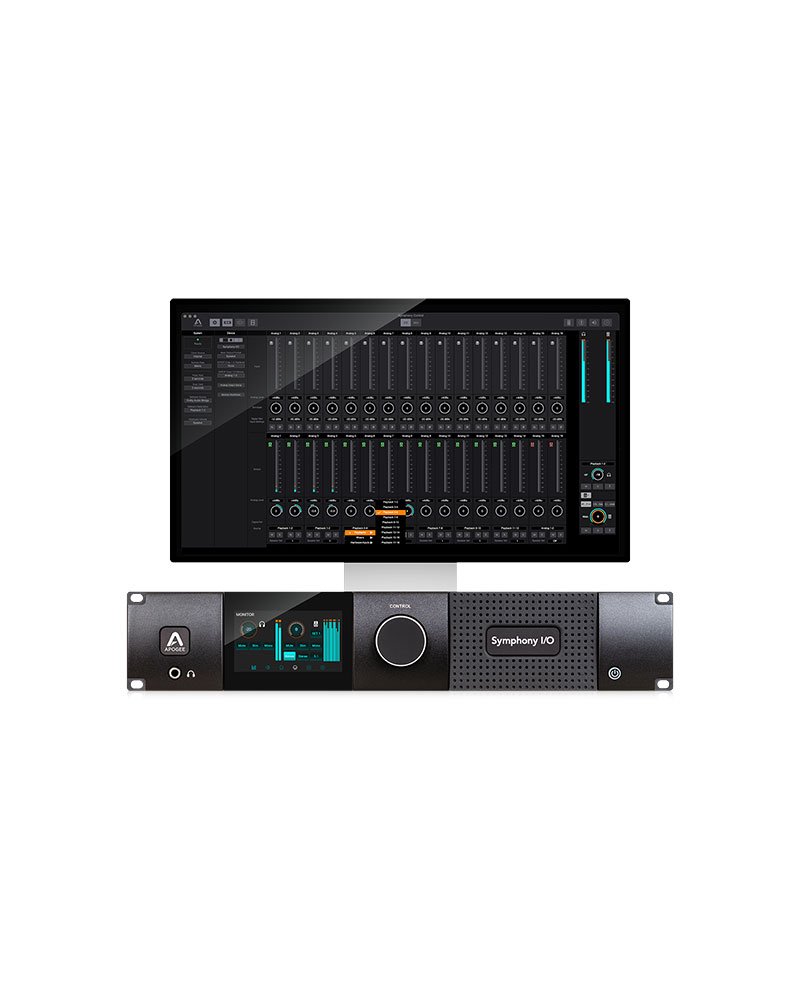

Features two 16-16 Special Edition line I/O modules for a total of 32 inputs and 32 outputs.Includes Thunderbolt, Pro Tools HD Plus, and Dante connectivity for maximum studio flexibility.SPDIF coaxial digital I/O included for additional digital routing options.Dolby Atmos ready with support for immersive multichannel speaker configurations.Delivers top-tier AD/DA conversion with exceptional clarity and dynamic range.Modular design allows full customization and future expansion.Touchscreen control for easy monitoring, routing, and session management.Ideal for high-end recording, mixing, mastering, and immersive audio production.Built in the USA for professional durability and performance.
Specifications
General Specifications:
Product: Apogee Symphony Mk IIModel: Symphony I O MkII 32X32SE TB DANConfiguration: 32 Line Inputs, 32 Line Outputs, S PDIF Coaxial, Thunderbolt, Pro Tools HD Plus, and Dante connectivityDisplay: Intuitive touchscreen interfaceModularity: Two 16x16 SE line I O modules with 4 DB25 connectors eachPower: 90 to 240 VAC, 50 to 60 Hz, 150 WBuild: Designed and built in the USADolby Atmos Ready: Supports immersive audio workflows with up to 32 speaker outputs
Analog to Digital Conversion:
THD plus N: minus 115 dB at 22 dBu unweightedDynamic Range: 122 dB A weightedMax Input Levels: plus 24 dBu at plus 4 dB setting, plus 6 dBV at minus 10 dB settingFrequency Response: 44.1 kHz to 20 kHz plus minus 0.05 dBInput Impedance: 10 kilo Ohm
Digital to Analog Conversion:
THD plus N: minus 119 dB at 21 dBu unweightedDynamic Range: 126 dB A weightedMax Output Levels: infinity to plus 24 dBuFrequency Response: DC to 20 kHz plus minus 0.05 dBOutput Impedance: 50 OhmBalanced Outputs: Apogee Perfect Symmetry Circuitry
Headphone Output:
Connector: 1 stereo quarter inch front panelTHD plus N: minus 110 dB at 19 dBu into 600 Ohm, minus 101 dB at 14 dBu into 32 OhmDynamic Range: 121 dB A weightedOutput Design: Apogee Constant Current Drive
I O Configuration:
Line Inputs: 32 total across two 16x16 SE modulesLine Outputs: 32 total across two 16x16 SE modulesDigital I O: S PDIF Coaxial
Connectivity Options:
Platform: Thunderbolt, Pro Tools HD Plus, DanteThunderbolt Compatibility: Mac OS 10.10 and abovePro Tools HD Compatibility: Mac or PC with Pro Tools HD 9 or greaterDante Compatibility: PC compatible
Use Case:
Ideal for high channel-count professional studios requiring simultaneous Thunderbolt, Pro Tools HD, and Dante supportOptimized for Dolby Atmos and other immersive audio environments
SKU and Configuration:
SKU 1: SYM2 32X32SESKU 2: SYM2 DANTE CARDConfiguration: Interface with two 16x16 SE line I O modules and triple connectivity platform
