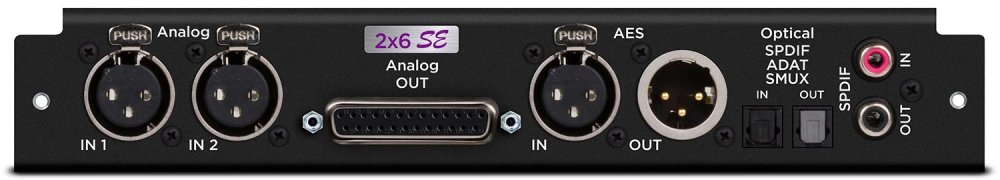

Apogee Symphony I/O MkII 2x6 SE Module
UPC/EAN #805676302102
MPN #2X6SE
AD/DA conversion module for the Symphony I/O Mk II chassis with 2x6 analog I/O, 8x8 Optical, and AES I/O
Apogee Symphony I/O Mk II 2-6 Special Edition offers the highest quality AD/DA conversion of the Symphony series. Designed specifically for mastering engineers whose critical work demands ultimate sonic performance, 2-6 SE takes advantage of the latest advancements in digital and analog audio technology to offer inputs with 124 dB (A) of dynamic range, THD+N of -116dB and outputs with 131dB (A) dynamic range and an astonishingly low THD+N of -118dB
Specifications
INPUTS
Analog IN: 2 balanced inputs on 2 female XLR connectors
AES IN: Stereo input on 1 female XLR connector
*Optical IN: Supports ADAT, SMUX & S/PDIF
ADAT: 8 channels 44.1-48 kHz
SMUX: 8 channels 88.2-96 kHz
S/PDIF: 2 channels, up to 96 kHz
Coax IN: 2 channels of S/PDIF, up to 192 kHz
*Dig I/O hardware switch selects AES or Optical digital I/O format
OUTPUTS
Analog OUT: 6 balanced outputs on 1 DSUB 25-pin connector
AES OUT: Stereo output on 1 male XLR connector
*Optical OUT: Supports ADAT, SMUX & S/PDIF
ADAT: 8 channels 44.1-48 kHz
SMUX: 8 channels 88.2-96 kHz
S/PDIF: 2 channels, up to 96 kHz
Coax OUT: 2 channels of S/PDIF, up to 192 kHz
