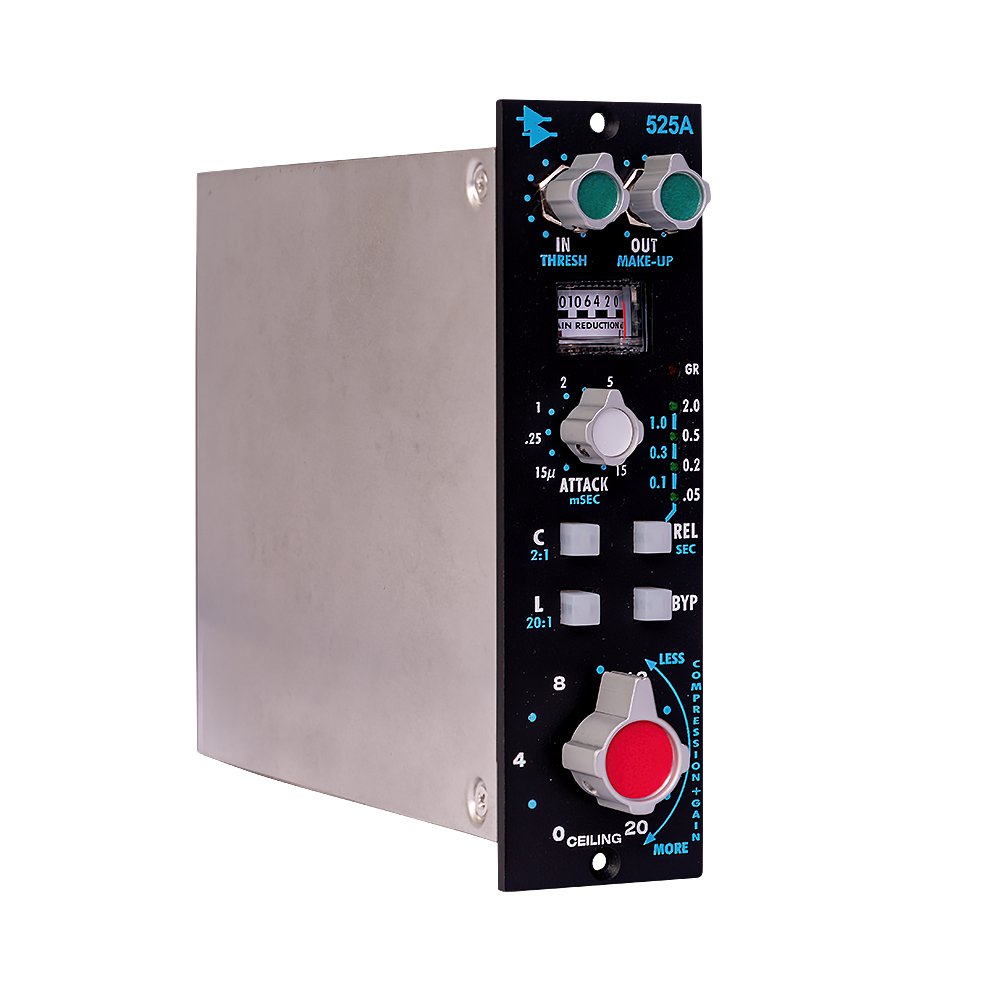

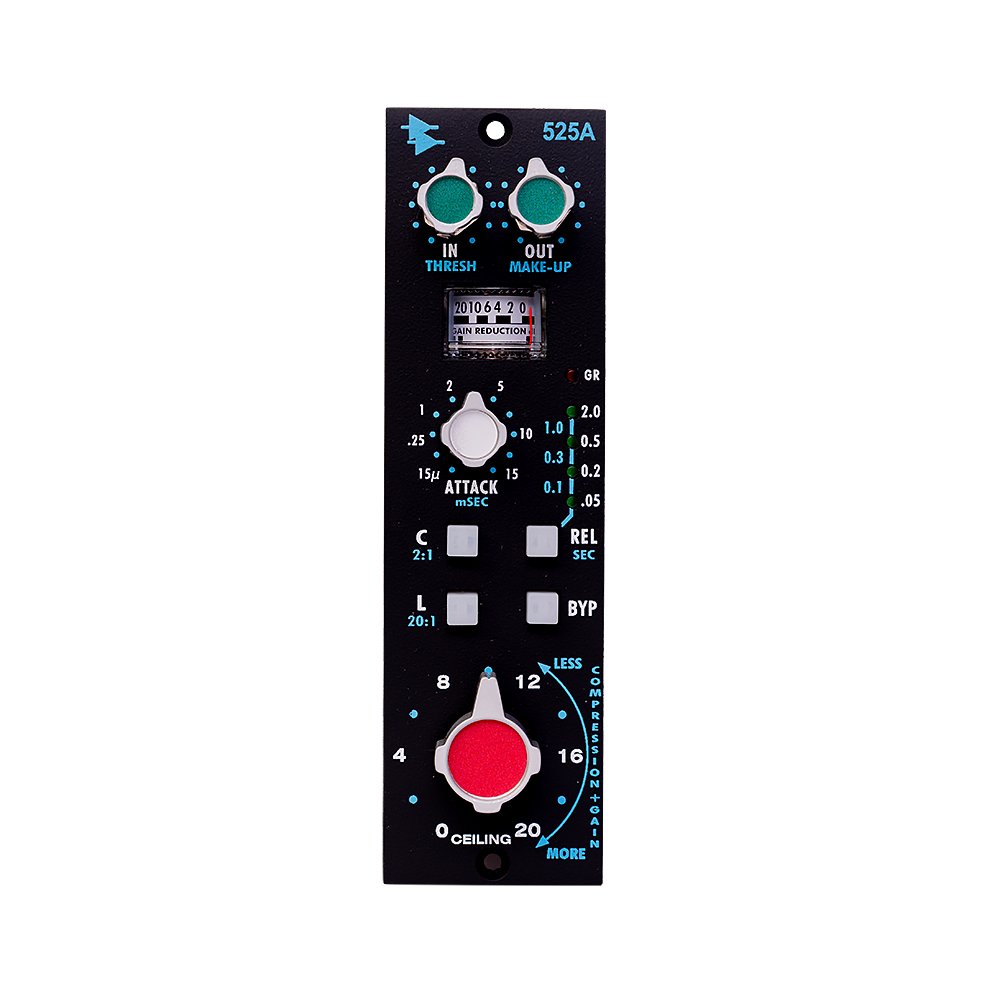

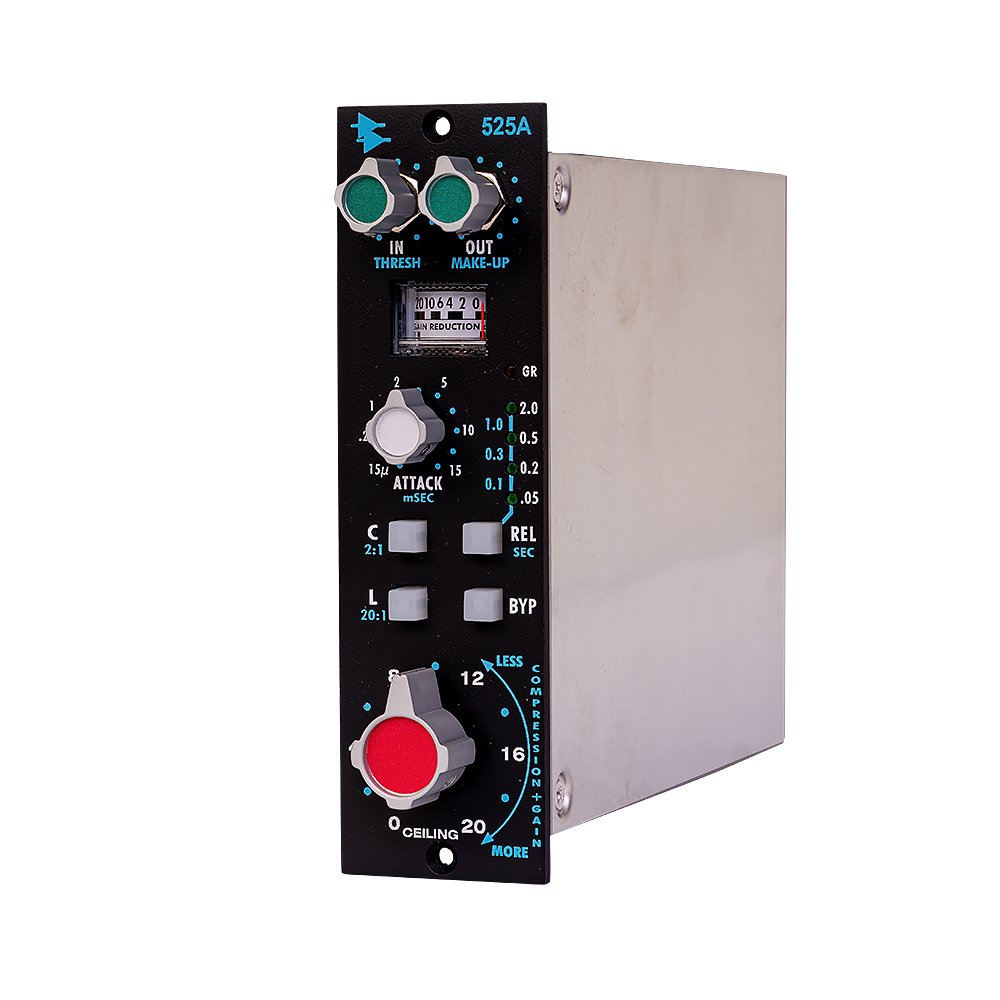

API 525A
MPN #525A
Series-500 device with variable attack, seven selectable release modes, a unique ceiling control, analog gain reduction meter and balanced input/output for precise performance
Since the early 1970s and the subsequent re-issue over 20 years ago, the 525 Discrete Compressor has become one of the most trusted vintage-style compressors in the industry. Building on the powerful core circuitry of the original 525, the new 525A maintains the discrete audio path and expands the feature set for even more applications in the modern studio. It artfully combines API's proprietary transformers, 2510 and 2520 opamps, retaining the sonic characteristics of the original while exhibiting the reliability, long life, and uniformity which is characteristic of all API products.
Features
NEW " Variable Attack adjustable from 15 microseconds to 15 millisecondsNEW " 7 selectable Release Modes (.05 to 2.0 Seconds)Unique Ceiling Control simultaneously combines Threshold and Make-up GainClassic 1970s style analog gain reduction VU meterTraditional API discrete audio path circuit designEquipped with 2520 and 2510 opampsProprietary API output transformerBalanced Input/OutputHardware Bypass
Specifications
Connector: API 500 Edge Connector - VPR Alliance Compliant
Input Impedance: 60K Ohms, Balanced
Output Impedance: 75 Ohms, Transformer coupled, Balanced
Maximum Input Level: +27 dBu
Maximum Output Level: +28 dBu
Attack Time: 15 micro seconds
Release Time: 0.1, 0.5, 2.0, 2.5 seconds
Slopes: Compression 2:1, Limit 20:1
Maximum Gain Reduction: 25 dB
Metering: Illuminated Analog Gain Reduction dB meter
Frequency Response: ±0.5 dB, 20 Hz to 40 kHz
Signal to Noise Ratio: 112 dB
Power Consumption: 3 Watts - VPR Alliance Compliant
Unit Size: 1.5" X 5.25" X 7"
Shipping Size: 4.5" X 6.5" X 10"
Unit Weight: 1.8 lbs.
Shipping Weight: 2.2 lbs.
