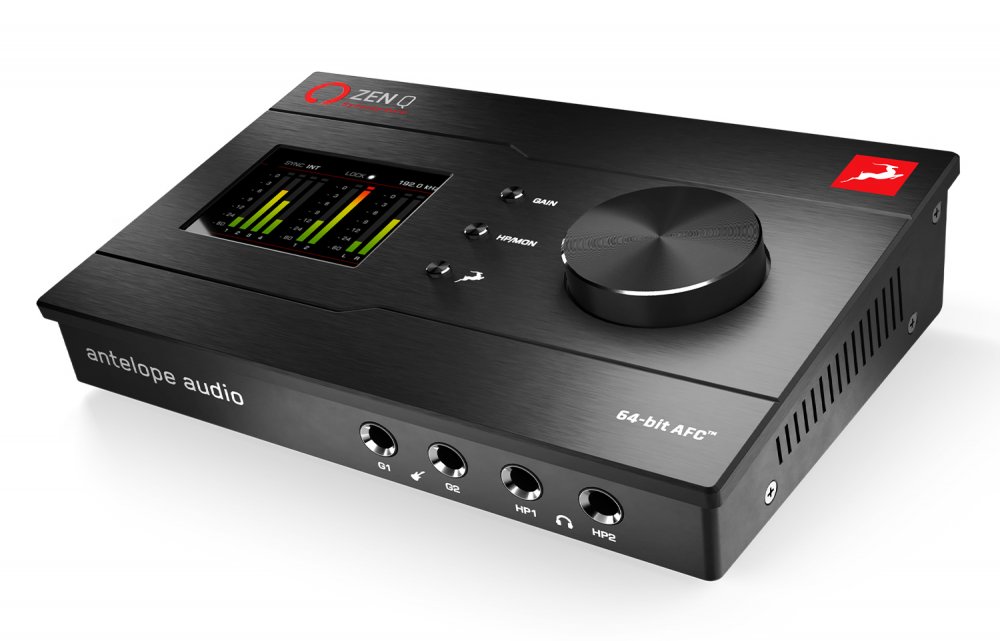

Antelope Audio Zen Q | Synergy Core Thunderbolt 3
MPN #Zen Q Synergy Core
Save $390.00, Regular $1300.00
14 x 10 bus-powered Thunderbolt 3 audio interface with onboard real-time effects and expandable I/O
The Zen Q Synergy Core is an audio interface specifically designed to bring professional studio performance to any desktop setup. The compact design houses leading AD/DA converter chips, Discrete ultra-linear mic preamps, and 64-bit AFC? clocking system based on Antelope Audio's legendary master clocks. With its expansive I/O capabilities and vast collection of Synergy Core effects, Zen Q introduces a wide frontier of possibilities.
Thunderbolt 3 interface with advanced audio driver for optimized streaming, playback, and low-latency recordingProfessional sound and stability via highly efficient AD/DA converter chips and proprietary 64-bit AFC (Acoustically Focused Clocking)2 Discrete ultra-linear preamps designed with authentic console circuitry for classic warmth and sonic depth, with switchable mic / Line IN / Hi-Z modes2 additional analog inputs, with switchable Hi-Z/Line modesReal-time, low latency processing of 37 included analog-modeled Synergy Core effects with 50+ optional expansionsFlexible I/O connectivity, with 8 additional inputs over ADAT, and stereo I/O over S/PDIF
Zen Q Synergy Core unites next-gen technology with traditional console-grade circuitry. Antelope Audio's signature sound quality comes from professional AD/DA conversion, Discrete ultra-linear preamps, and 64-bit AFC? clocking. Empowered with the same core technologies driving high-end interfaces like the Orion Studio and the Galaxy 64 Synergy Core, home engineers and artists can raise their productions to a new level without getting up from their desk.
Synergy Core Effects to Fuel Creativity
The interface is bundled with 37 analog-modeled effects to emulate a studio stocked with the rarest analog gear. The Synergy Core platform grants immersive control of iconic equalizers, dynamic processors, guitar amps, reverb, and more. In addition, over 50 optional expansions are available through Antelope Audio's Software Store.
Diverse I/O with Room to Grow

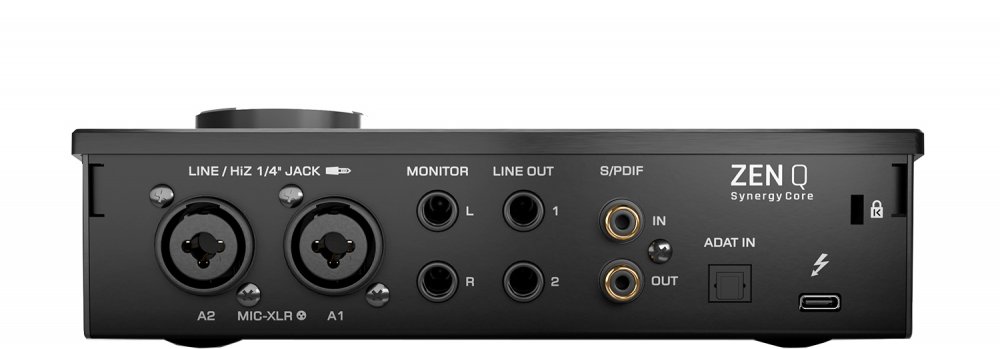

Zen Q features 2 Combo XLR jacks with switchable modes to toggle between the Discrete console-grade preamps, line level, or Hi-Z. The front panel includes 2 switchable LINE/HI-Z inputs for added flexibility. For monitoring, you have a stereo monitor output and a separate line output pair to connect another set of studio monitors or external outboard gear. While both are backed by a mastering-grade D/A converter, there is a separate DAC for the pair of independent headphone outputs. If expansion is required, a simple desktop setup can easily transform into a multichannel configuration via digital SPDIF I/O or ADAT IN.
Fast & Efficient Workflow
Reap the advantages of a Thunderbolt 3 interface with an optimized audio driver for low-latency playback, streaming and recording. Paired with onboard software, grasp seamless control over essential parameters: signal routing, effects, sub-mixes, and monitoring levels. Apply Synergy Core effects without overburdening your system. Together, all these elements are integral to enhancing your workflow at every angle.
Your New Desktop Companion
Versatility is one of the Zen Q's greatest features, making it the ideal centerpiece for any desktop setup - at home or in the studio. Zen Q offers producers superior workflow in a small format. It's also suitable for on-location recording, traveling musicians, or producers who prefer to stay mobile. The Zen Q is completely bus-powered, so a power supply is not required to produce your next big project.
Conversion & clocking
Class-leading AD/DA conversion with up to 127dB of headroom.Recording, mixing and playback at up to 24-bit/192kHz.Proprietary 64-bit AFC? (Acoustically Focused Clocking) technology & Jitter Management algorithm delivering increased sound width, separation, and detail.
2 x Discrete ultra-linear preamps with 65dB of gain for studio-quality recordings. Both work as microphone/line/ Hi-Z inputs, on combo XLR jacks, and supply 48V of phantom power.2 x Hi-Z/line instrument inputs over TRS.2 x DC-coupled line outputs over TRS.Thunderbolt? 3 port carrying up to 16 input and 16 output channels in any popular DAW with custom macOS & Windows drivers.Digitally expandable over ADAT IN , with 8 channels available.Digitally expandable over S/PDIF I/O, with 2 channels available.1 x Stereo monitor output over TRS.2 x Stereo headphone outputs with separate volume control.
Bus-powered interface - powered by the Thunderbolt? connection without need for a dedicated power source.Direct monitoring with Synergy Core effects, processed in real-time with imperceptible latency.Simplified I/O routing with pre-configured settings, allowing immediate recording and playback.Front panel with easily accessible controls over input and output levels, and other settings.Customizable presets with signal routing, level adjustments, mixer and effects settings.Customizable monitoring mixes with adjustable volume, pan and reverb.
Real-time effects processing
Collection of 37 Synergy Core effects modeled after classic and rare analog outboard gear.Synergy Core proprietary onboard platform powered by 2 x DSP & 1 x FPGA chips for real-time effects processing with imperceptible latency.Modeling Engine allowing pairing with the Edge line of microphones for real-time use of vintage microphone emulations
2 x Mic / Line Inputs / Hi-Z Inputs
2 x Line inputs / Hi-Z Inputs
48V phantom power and independent preamp gain for each input
1 x Monitor Out on TRS 1/4 Jacks, +20 dBu max, signal balanced, DC-coupled
1 x Line Out on TRS 1/4 Jacks, +20 dBu max, signal balanced, DC-coupled
2 x Stereo Headphone Outputs
EIN: -128 dBu (A-weighted)
Dynamic Range: -121 dB (A-weighted)
THD: -106 dB
Max input level: +20 dBu
Max Gain: 65 dB
Max output level +20 dBu
D/A Monitor Converter
Dynamic Range: 127 dB (A-Weighed)
THD + N: -115 dB
D/A Line Out Converter
Dynamic Range: 127 dB (A-Weighed)
THD + N: -115 dB
Dynamic Range: 122 dB
THD + N: -116 dB
1 x S/PDIF
1 x ADAT IN (up to 8 channels @44.1/48.0
1 x S/PDIF
1 x Thunderbolt 3
Bus-powered through Thunderbolt 3 port
4th Generation Acoustically Focused Clocking (AFC?)
Sample Rates (kHz)
44.1, 48, 88.2, 96, 176.4, 192
Interface - Physical Dimensions:
198 137 57.5 mm
Weight: 800 g (approx.)
Box - Physical Dimensions:
260 205 95 mm
Weight: 1 kg (approx.)
2.8 IPS Screen
Bitwig Studio DAWBig 15 FX Bundleafx2daw
Note: Thunderbolt cable is not included.
