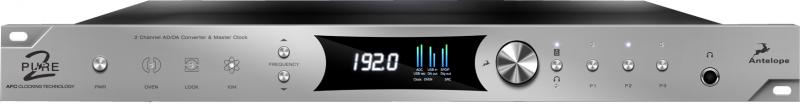

Antelope Audio Pure2
UPC/EAN #853744004281
MPN #Pure 2
The Pure2 is a high-end Mastering AD/DA Converter, powered by Antelope Audio's legendary clocking and pristine analog circuitry
Pure2 is a mastering-grade 24-bit, 192 kHz AD/DA 2-channel converter and master clock that includes a relay-controlled volume attenuator. It features Antelope Audio's world-renowned Acoustically Focused Clocking (AFC) technology, and also utilizes pristine analog circuitry, driven by a proprietary multi-stage linear power supply for unsurpassed digital clarity and analog realism.
LEXIBLE CONTROL
Access all Pure2 features via Mac & PC app or through the front-panel controls
All Pure2 features are available in an intuitive software control panel for Mac or Windows provides users the ability to manage all facets of the device operation. Pure2 is also configurable via the front panel with user-definable presets.
EASY LIFE
We know the engineer's life
Fis not a glamorous one. So we tried to make it easier.
You can set up Pure2 in a couple of minutes. All you actually need is one USB cable (provided in the box) and a laptop of your choosing (Win 7.1 or higher / Mac OSx 10.9 or higher) and you can start capturing stereo audio at 192 kHz.
After setting it up, just download the Control Panel, a few clicks and you're set.
Features
A/D converter with optimized overload handlingD/A converter with dual-DAC architectureHigh-end headphone amp with dedicated D/A converterRelay-based analog volume control for accurate monitoringMaster clock with 4th-generation Antelope AFC jitter managementConnections for S/PDIF, TOSlink, AES, and USBIntuitive software control panel for Mac/Windows
Specifications

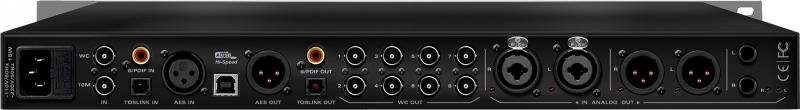

Inputs
1x World Clock1x 10 MHz Atomic Reference1x SPDIF1x TOSLINK1x AESUSB 2.0 on Type B1x Analog (ADC) on Combo XLR* Factory preset to accept 22dBu, trim to accept 8dBu to 24dBu
Outputs
1x USB 2.0 on Type B1x AES1x SPDIF1x TOSLINK8 x World Clock1x Main Analog (DAC 1) on XLR1x Monitor Analog (DAC 2) on 1/4" TRS1x Headphones(DAC 3)on 1/4" TRS
Operating Temperature
0-45ºC/32-113ºF
Weight (approx. prior)
~3kg/ 6,5lb approx.
Dimensions (approx.)
Width: 482 mm/19" /Rack/Height: 44 mm/1U/Depth: 350 mm
Power Supply
Nominal 100-120 / 220-240 VAC, 50 or 60 HzActual 95-264 VAC, 50 or 60 Hz
SYSTEM REQUIREMENTS
Windows
OS: Windows 7/8/8.1/10Disk Space: Minimum 512 MB available disk spaceUSB: 1x USB 2.0 PortRequired USB bandwidth: 80%-90%CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequencyMemory (RAM): 4GB Minimum (8GB or more Recommended)
MAC
OS X: 10.9/10.10/10.11/10.12 (Sierra Recommended)Disk Space: Minimum 512 MB available disk spaceUSB: 1x USB 2.0/3.0 PortRequired USB bandwidth: 80%-90%Memory(RAM): 4GB Minimum (8GB or more recommended)CPU: Intel Core 2 Duo (Minimum) Intel Core i3 ? or higher (Recommended)Additional Info: Internet connection required for product activation.
