AMS Neve 88RLB
UPC/EAN #5060834530024
MPN #88RLB
500-series mono mic preamp with transformer-coupled Mic input, electronically balanced Line and DI inputs and Line output
When the world's top musicians, composers and engineers get together to record, it's got to be Neve all the way. Not everyone has room for the world's greatest recording console - the Neve 88RS - but now there's no need to settle for anything other than the absolute best when it comes to capturing the beauty, energy and excitement of your recording... Introducing the Neve 88RLB - the same sound of greatness, but in the palm of your hand.
The incredible sounding audio technology from Neve's two-ton flagship 88RS console is now available to you in a 500-series format module. With extra features like the REGenerate function, a sweepable high-pass filter, intelligent phantom power control and a DI input, true Neve magic has never been more accessible or convenient.
Features
True Neve 88RS mic preamp in a 500-series format, with transformer-coupled Mic input, electronically balanced Line and DI inputs and Line outputREGeneration feature allows Line and DI inputs to be fed through the Mic input transformer to inject the legendary Neve soundSweepable high pass filter can be switched in or outIntelligent 48v phantom power function-20dB pad and phase reversal features for Mic, Line & DI inputsSignal Presence LED illuminates green from a level of -25dB and red from a level of +26dBFront combi-XLR connector for Mic input (XLR) and Line & DI inputs (1/4" TRS jack - LIFT switch eliminates potential ground loops when using jack connectors in the front input
Specifications
88RLB Mic Amplifier Section
Microphone Input:
Transformer balanced and earth free, input impedance > 1.2kohmsGain range +20dB to +70dBFrequency response: 20Hz-20kHz +/- 0.5dB, @ 60dB gainDistortion 40Hz-20kHz @ 60dB gain, <0.025% @ +20dBu output with 80kHz bandwidthEIN:- Better than -126dBu @ 60dB gainLine Input:
Electronically balanced, input impedance > 10kohmsGain range -20dB to +20dBFrequency response 20Hz-20kHz +/- 0.25dBDistortion 20Hz-20kHz @ unity gain, <0.0025% @ +20dBu output with 80kHz bandwidthNoise < -87dBu 20Hz-20kHz bandwidth @ unity gainDI Input:
Electronically balanced, input impedance > 500kohmsGain range 0dB to +50dBFrequency response 20Hz-20kHz +/- 0.25dBDistortion 20Hz-20kHz @ 0dB gain, <0.0025% @ +20dBu output with 80kHz bandwidthNoise < -87dBu 20Hz-20kHz bandwidth @ minimum gain88RLB Controls

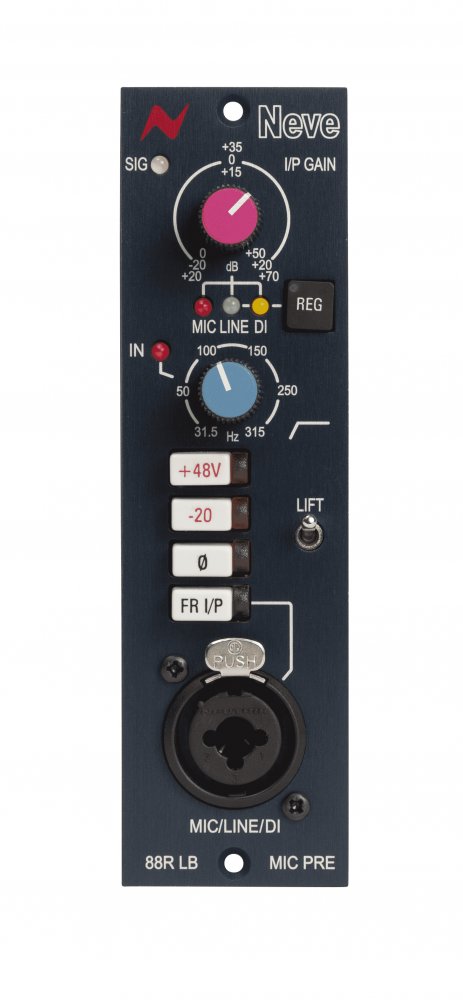

Front Panel Controls: Signal presence indicator LED, Input Gain rotary control with push-to-select input switch (selects Mic, Line, DI with LED indicators), REGenerate switch, High pass filter rotary control with push-to-enable/disable switch and LED indicator, +48v power switch, -20dB pad switch, phase switch, front input selector switch, Line/DI 'Lift' switch 88RLB Module DimensionsWidth x Height x Depth & Weight: (excluding front panel controls and rear connector) 38mm (1½ inches) x 132mm (5¼ inches) x 145 mm (5¾ inches) - 500g (1.1 pounds)88RLB Module requirements
Rack: Compliant 500-series rack with PSU and external audio connections.Available Rack slots: Single 500-series rack slot required for each 88RLB module.
