Allen & Heath Qu-Pac
MPN #Qu-Pac
$2499.00
Save 16.7%, MSRP $2999.00
Compact digital mixer with touchscreen control, customizable workflow, and advanced processing, ideal for flexible live and studio audio management.
With custom settings and Cat5 expansion up to 38 inputs, Qu-Pac provides a scalable, failsafe solution for hardworking bands, schools, hotels, corporate events, live music bars, conferences, personal mixing and many more scenarios requiring a pro mixing solution in a tiny footprint.
User permissions and the customizable Qu-Control screen make Qu-Pac convenient and safe for day-to-day use by non-technical staff.
Qu-Pad
Add the Qu-Pad iPad app to your Qu setup and you're free to adjust the monitors on stage, roam around the venue whilst tweaking the PA, and then mix the show from the heart of the audience. Qu-Pad connects to the mixer over Wi-Fi* and gives instant access to all live mixing parameters and settings.
Touch Control

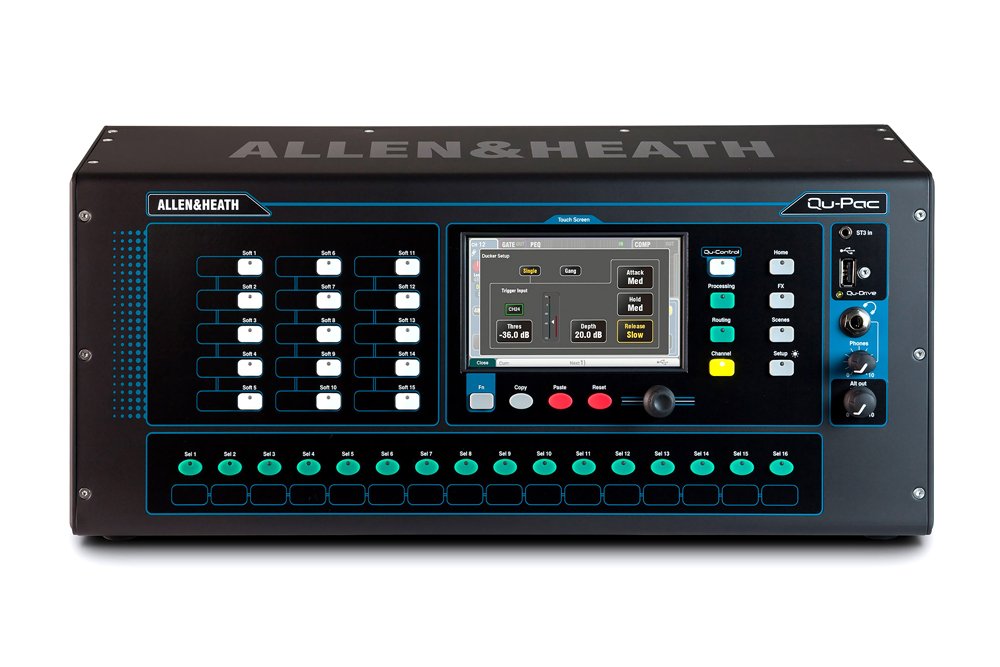

Qu-Pac's 5 inch, 800 x 480, sixteen million colour Touchscreen and its dedicated data encoder form the heart of the Qu interface, providing super-fast, easy access to all settings. The user-friendly interface has been designed with clarity in mind. Dedicated keys and screen tabs quickly guide you to meter and RTA views, FX racks, channel processing, USB audio control, scenes, setup menus and much more.
The Qu-Control key brings up a fully customizable screen which gives access to channels and settings tailored to the user and application. Several 'widgets' can be assigned to the page, these include channel levels, mutes and assignment on/off switches and are arranged to suit the user requirement, for example as a source selection and level control of background music to one or multiple zones.
AnalogiQ Preamps
Our AnalogiQ total recall preamps feature zero crossing detection and an advanced padless 1dB step gain stage, closely allied to the DSP for optimal gain accuracy and audio transparency. The analogue signal is captured by high class, low latency 24bit analogue to digital converters matched to high quality 24bit digital to analogue converters to deliver the required outputs. The AnalogiQ design has been refined to offer superb transparency, minimal distortion and an ultra-low noise floor, with a warm, musical sound that is missing from some digital consoles.
DSnake

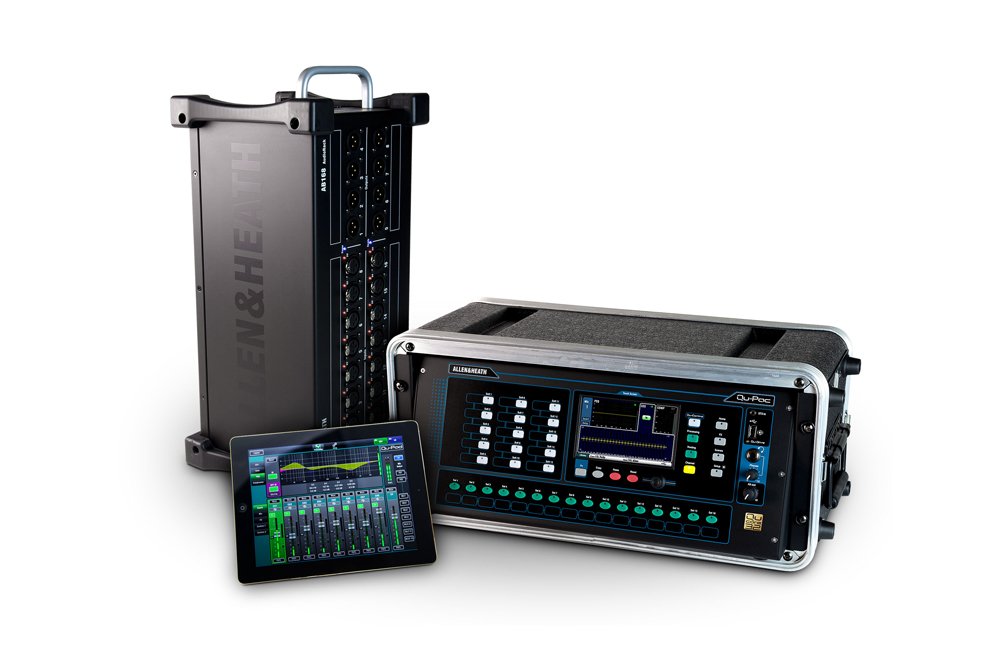

Qu mixers are self-contained, so if you've already got the analogue cables you're good to go. If you're thinking of trading in the copper multicore for a Cat5 digital snake, Qu's dSNAKE port has you future-proofed, allowing connection to a combination of AR2412, AR84 or portable AB168 AudioRacks.
dSNAKE is our proprietary networking solution, boasting a transport latency of only 105us over cable runs of up to 120m / 390'. So if you're mixing FoH you can place your I/O on the stage and run a single Cat5 cable back to the Qu mixer in the mix position.
Features
Qu-Pad iPad App for all live mixing controlsQu-You iPhone App for personal monitoringQu-Drive direct Multitrack Recording / Playback on USB drives15 Soft Keys16 Custom Select keysQu-Control custom screen to suit application32x32 USB Audio Interface5" TouchscreeniLive FX LibraryAutomatic Mic MixerCompatible with ME Personal Mixing SystemTrim, polarity, HPF, gate, insert / ducker, 4-band PEQ, compressor and delay on all InputsInsert, 4-band PEQ, 1/3 octave GEQ, compressor and delay on all Mix outputsBuilt-in Signal GeneratorRTA with Peak Band indicationSpectrogram to aid with feedback elimination and taming room acoustics
Specifications

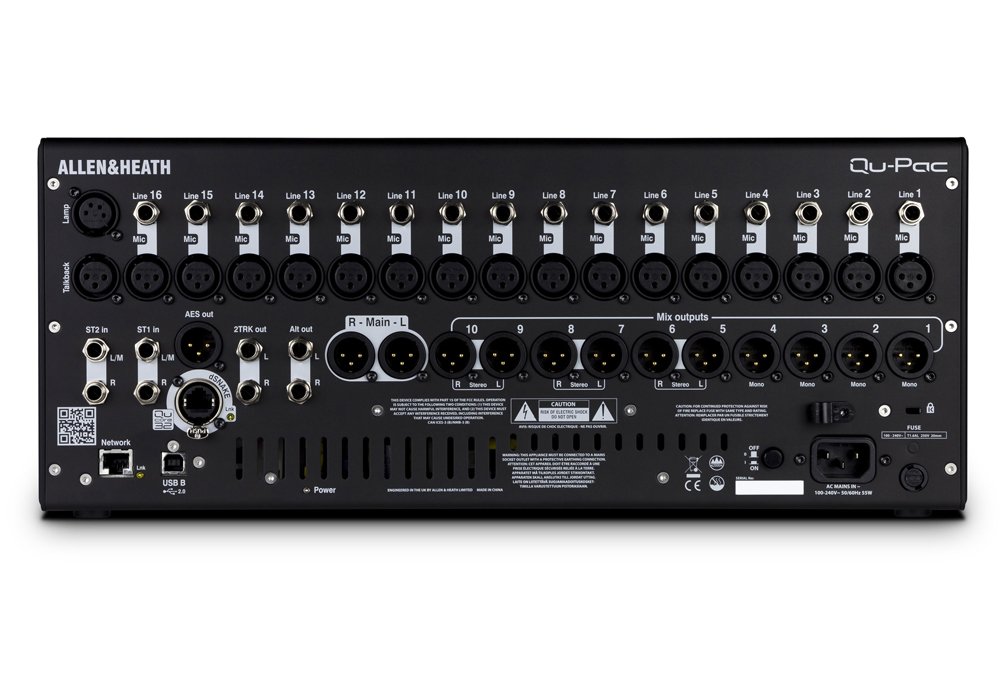

Inputs: 16 mono mic/line inputs with recallable AnalogiQ preamps; 3 stereo line inputsOutputs: 12 mix outputs, including XLR connectors; AES digital out; dedicated stereo and mono outputsProcessing Channels: 32 mono and 3 stereo DSP channels; 4 stereo FX engines with dedicated returns, totaling 46 processing channelsMix Buses: 4 mono and 3 stereo auxiliaries; 2 stereo subgroups; 2 stereo matrix mix busesUSB Interface: 32x32 USB audio interface for multitrack recording and playback; Qu-Drive for direct recording to USB storage devicesTouchscreen: 5-inch color touchscreen for intuitive control and parameter adjustmentRemote Control: Compatible with Qu-Pad app for iPad, Qu-You personal monitoring app for iPhone/iPad/Android, and Qu-Control custom control app for iPhone/iPadExpansion: dSNAKE port for remote audio using AR2412, AR84, or AB168 AudioRacks; compatible with Allen & Heath ME personal mixing systemDimensions: Width: 321 mm (12.6 inches); Depth: 358 mm (14.1 inches); Height: 177 mm (7 inches)Weight: Approximately 7 kg (15.4 lbs)
