Allen & Heath ME-U
MPN #ME-U
$2799.00
Save 12.5%, MSRP $3199.00

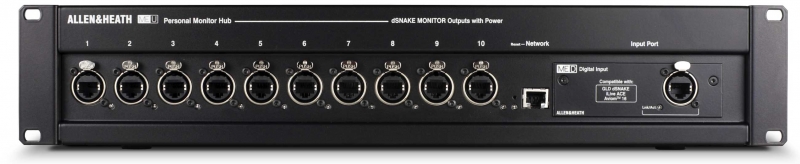

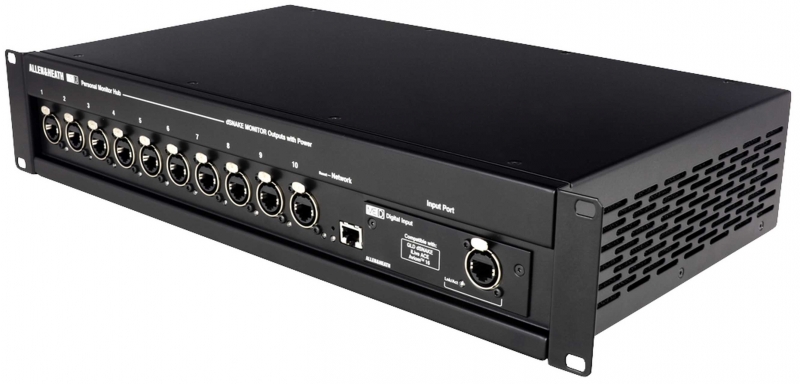

ME-U is a touring grade, 10 port PoE hub providing power and audio to connect multiple ME-1 personal mixers
It comes with a standard input card to interface with GLD and Qu dSnake, dLive, iLive ACE or Aviom A-Net. This card can be replaced with a MADI, Dante, Waves SG or EtherSound card to take a digital feed of up to 40 sources from third party systems.
Features
10 ports with locking Ethercon connectorsDaisy chain for more outputs - up to 19 ME-1s with 2 hubsEach port provides power + 40 audio sources to connected ME-1sTouring grade build quality2U rack or desk mountingMulti-purpose Network port:
Specifications
Ports: 10 locking EtherCon connectors for connecting ME-1 and ME-500 personal mixersPower over Ethernet (PoE): Each port supplies up to 15W to connected mixers, eliminating the need for individual power suppliesInput Card Slot: Equipped with a standard ME-D input card; compatible with optional MADI, Dante, or Waves SG cards for integration with various digital audio systemsAudio Channels: Supports up to 40 channels of 48kHz digital audio input, distributing audio to connected personal mixersNetwork Port: Ethernet TCP/IP port for system setup via web browser; allows configuration of unit name, IP address, and manual entry of channel namesCompatibility: Integrates seamlessly with Allen & Heath digital mixers (dLive, Avantis, SQ, Qu, GLD) and third-party systems via optional cards; compatible with Aviom A-Net16Construction: Touring-grade build quality; 2U rack-mountable or suitable for desk placementDimensions: 483 mm (19 inches) width; 253 mm (10 inches) depth; 92 mm (3.6 inches) heightWeight: Approximately 4.6 kg (10.1 lbs)Power Supply: Universal mains input of 100-240V AC, 47-63Hz; maximum power consumption of 250W
