Allen & Heath GX4816
MPN #GX4816
$5750.00
Save 16.7%, MSRP $6899.00
High-performance audio expander with 48 inputs and 16 outputs, delivering pristine sound quality and seamless integration for professional audio systems.

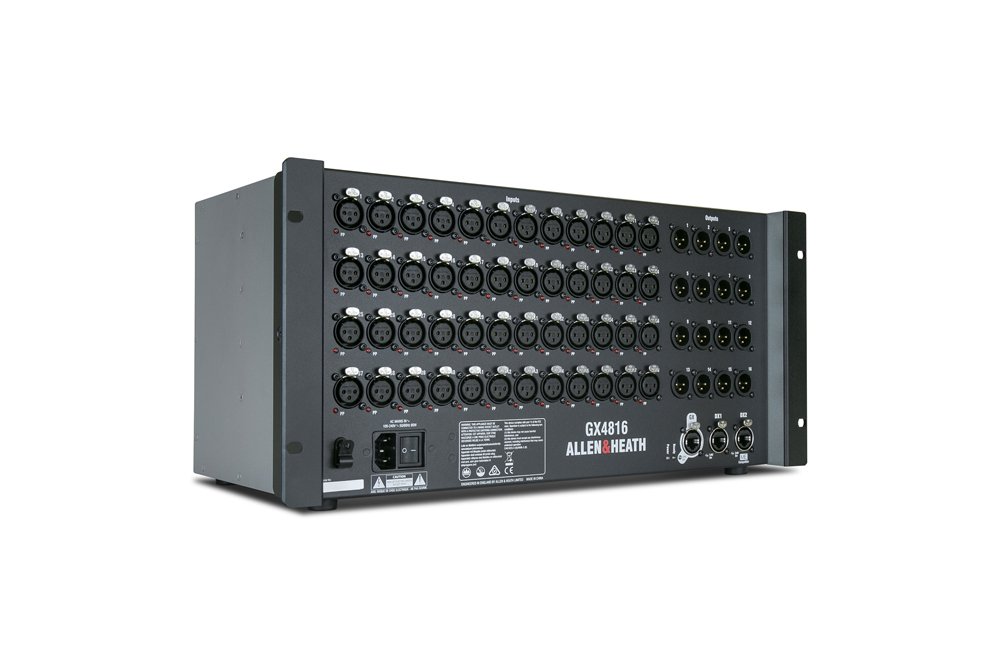

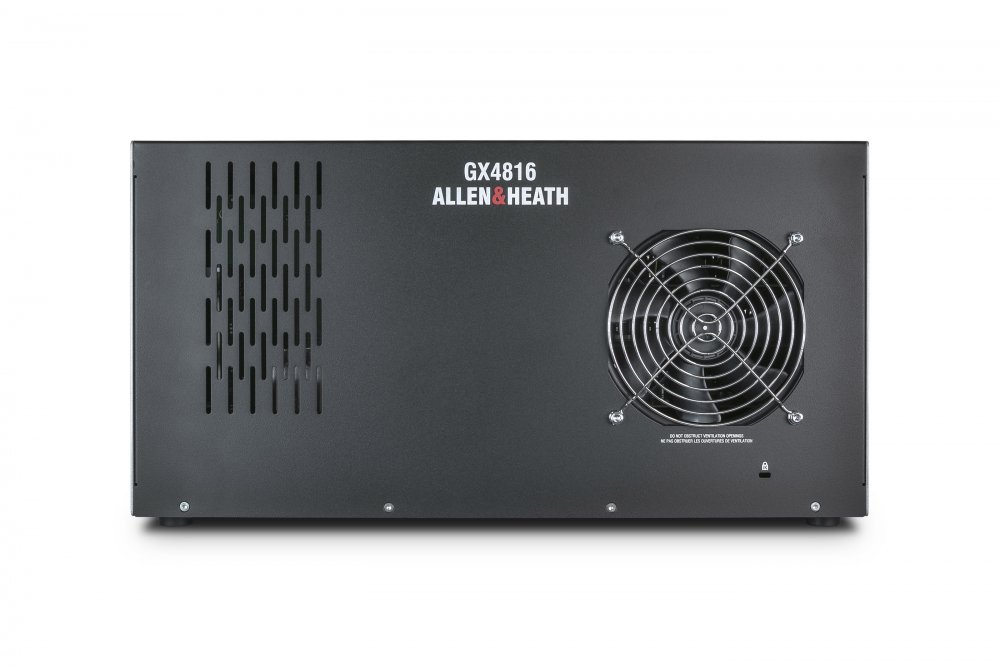

The Allen & Heath GX4816 is a high-performance audio expander designed to enhance the input and output capabilities of SQ, Avantis, and dLive mixing systems, as well as the AHM-64 audio matrix processor. Housed in a 5U rack-mountable chassis, it offers 48 high-quality microphone preamps with individual phantom power indicators and 16 XLR line outputs, all operating at a pristine 96kHz sample rate.
For added flexibility, the GX4816 includes two DX ports, allowing connection to up to four DX expanders for further I/O expansion or integration with the ME personal mixing system. Its plug-and-play design ensures seamless setup via a single Cat5e cable, with automatic configuration and no need for manual IP addressing. This makes the GX4816 an ideal solution for professionals seeking to expand their audio infrastructure with reliable, high-quality connectivity.
Features
48 Mic Preamps on XLR: Provides high-quality, remote-controlled microphone preamps for extensive input capabilitiesPhantom Power LEDs: Each input includes an independent LED indicator for phantom power status16 XLR Line Outputs: Offers multiple balanced line outputs for versatile routing options96kHz Operation: Ensures high-resolution audio performance for professional applicationsPrimary GX Connection: Utilizes a locking EtherCon port for secure digital audio and control signal transportDual DX Ports: Allows for further I/O expansion by connecting additional DX Expanders; the second DX port is compatible with the ME personal mixing system when used with Avantis and SQ systemsPlug-and-Play Connectivity: Facilitates easy setup with automatic IP addressing over standard Cat5e cablesRack-Mountable Design: Occupies 5U of rack space, suitable for portable and installed systems
Specifications
Inputs: 48 remote-controlled mic/line preamps with individually selectable phantom power; balanced XLR connectorsOutputs: 16 balanced XLR line outputs; relay-protected for enhanced reliabilityExpansion Ports: 2 DX ports for additional I/O expansion or connection to the ME personal mixing system; compatible with DX32, DX168, and DX164-W expandersConnectivity: Primary GX EtherCon port for single-cable connection to compatible Allen & Heath mixing systems; supports Cat5e (or higher) cables up to 100 metersSampling Rate: Operates at 96kHz for high-resolution audio performanceCompatibility: Integrates seamlessly with Allen & Heath SQ, Avantis, and dLive mixing systems; plug-and-play operation without the need for manual IP addressingConstruction: 5U rack-mountable unit with rugged build quality; detachable rack ears for flexible installation optionsDimensions: Width: 481.6 mm (18.9 inches); Depth: 229.5 mm (9 inches); Height: 221.5 mm (8.7 inches)Weight: Approximately 8 kg (17.6 lbs)Power Supply: Built-in universal power supply accepting AC mains voltages of 100-240V, 50/60Hz; power consumption: 80W max
