Allen & Heath GR2
$395.00 (Special)
* Limited quantity
The Allen & Heath GR2 analogue zone mixer is the perfect tool for sound system installation in bars with different zone.

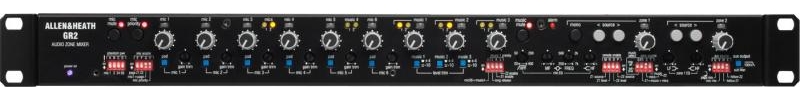

The GR2 is a 9-input, 4-output analogue zone mixer for sound installations requiring 6 mic/3 stereo line or 4 mic/4 stereo line to 1 stereo/1 mono zone and aux output. All settings are custom configurable from the front panel and are protected by a cover plate for day-to-day operation. Zone source selection, volume and more may be remotely controlled
Features
6 mic/line inputs with EQ3 (or 4) stereo music inputsPaging and music priority overrideMono and stereo zone outputsMono aux outputRemote controlConfiguration protection
Specifications

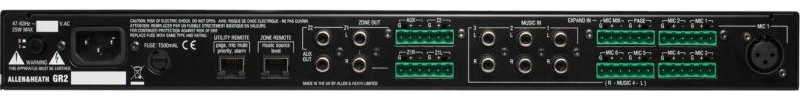

Inputs: 6 mic/line inputs with EQ; 3 stereo line inputsOutputs: 1 stereo zone output; 1 mono zone output; 1 mono auxiliary outputPriority Override: Paging and music priority override functionalityRemote Control: Capability for remote control of zone source selection and volumeConfiguration Protection: Front panel settings are customizable and protected by a cover plate to prevent unauthorized adjustmentsDimensions: 1U rack-mountable unit; depth of 235 mm (9.3 inches); weight of 3.6 kg (8 lbs)Power Supply: Universal mains input of 100-240V AC, 47-63Hz; power consumption of 25VA maxAdditional Features: Individual phantom power switches for mic inputs; music source mute switch; stereo input 1 configurable as priority input; optional wall plates for remote controlApplications: Suitable for sound installations in bars, restaurants, conference rooms, and other venues requiring flexible audio zone managementUser Manual: Detailed operational guidance available in the user manual
