Allen & Heath dLive S3000 Surface
MPN #S3000 Surface

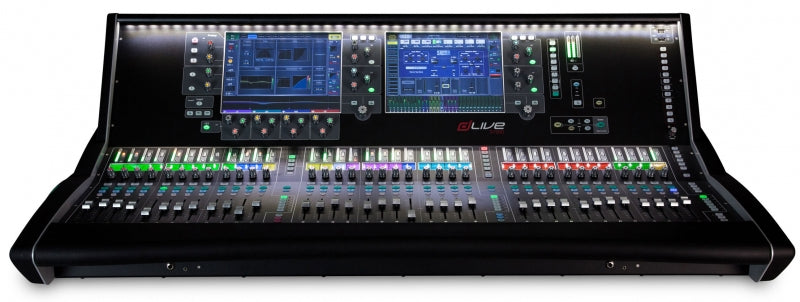

The Allen & Heat S3000 is a small-footprint yet powerful control Surface for the dLive MixRack, with the addition of built-in audio I/O and audio networking ports
It features 20 faders over 6 layers, a 12 capacitive touchscreen and the innovative Harmony UI for the fastest workflow in the industry.
Created for professional touring, broadcast and prestige installations, dLive S Class has earned its reputation for audio quality and robustness in the most complex and high-profile applications.
Features
20 Faders with 6 Layers: Provides access to 120 assignable fader strips for comprehensive control over inputs and mixes12" Capacitive Touchscreen: Offers intuitive touch control with familiar gestures like pinch, swipe, drag, and drop, enhancing workflow efficiencyHarmony User Interface: Integrates the touchscreen with physical controls, allowing seamless interaction between screen and hardware for a cohesive mixing experience26 Assignable SoftKeys: Enables customization of frequently used functions for quick access during live performances or recording sessionsBuilt-in Audio I/O: Includes 8 XLR mic/line inputs, 8 XLR line outputs, 2 AES3 digital stereo inputs, and 3 AES3 digital stereo outputs, providing versatile connectivity optionsDual Redundant GigaACE Gigabit Link: Ensures reliable connection to the MixRack with redundancy for increased system stabilityRedundant DX Link for I/O Expansion: Allows integration with additional I/O modules, expanding the system's input and output capabilitiesDual I/O Ports: Each supports 128 channels at 96kHz, facilitating integration with various audio networking protocols and systemsComprehensive Metering and Daylight Visibility: Features clear visual feedback and high-visibility displays suitable for outdoor useDual Redundant, Hot-Swappable Power Supply: Offers uninterrupted operation with the ability to replace power supplies without downtime
Specifications
Faders: 20 motorized faders with 6 layers, providing 120 assignable fader strips for flexible controlTouchscreen: 12-inch capacitive touchscreen with gesture control (pinch, swipe, drag and drop) for intuitive operationAssignable Controls: 26 SoftKeys and 3 pages of 6 assignable rotary controls for customized functionalityBuilt-in I/O: 8 XLR mic/line inputs, 8 XLR line outputs, 2 stereo AES3 digital inputs, and 3 stereo AES3 digital outputsConnectivity: Dual redundant GigaACE gigabit link to MixRack, redundant DX link for I/O expansion, 2 I/O ports (128 channels at 96 kHz each), 2 network ports, Wordclock BNC I/O, and video outputPower Supply: Dual redundant, hot-swappable power supply capability for increased reliabilityConstruction: Rugged high-grade metal chassis designed for durability in professional touring and installation environmentsDimensions: Width: 730 mm (28.7 inches); Depth: 581 mm (22.9 inches); Height: 354 mm (13.9 inches)Weight: Approximately 25 kg (55.1 lbs)Additional Features: Engineer's Wedge and IEM fader strips, comprehensive multipoint metering, daylight visibility, USB stereo recording and playback, and configurable widget areas for scenes, meters, effects, and more
