Allen & Heath dLive DX168
MPN #A&H DLIVE-DX168
$2275.00
Save 15.7%, MSRP $2699.00
Rugged, portable expander for adding remote I/O to a dLive S Class or dLive C Class system

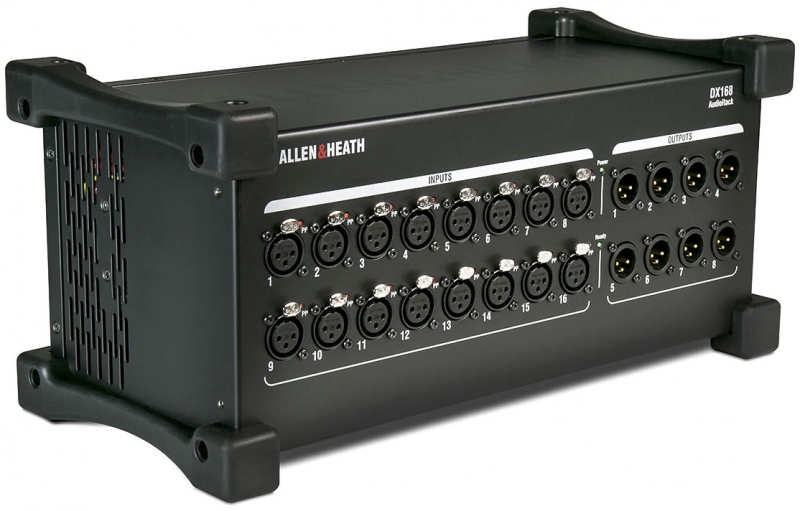

Each DX168 features 16 mic preamps with independent Phantom Power LED indicators, plus 8 XLR line outs. Up to 6 DX168 units can be connected to a dLive system - 4 via the MixRack and 2 via the Surface - allowing up to 96 remote inputs and 48 remote outputs in addition to those provided by the MixRack and Surface.

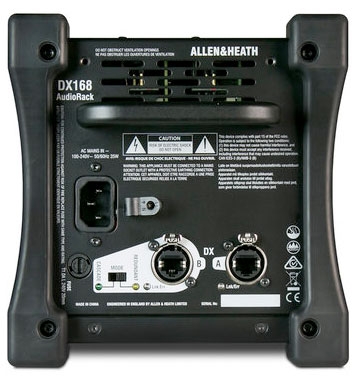

The DX168 connects via a single Cat5e cable to the dLive Surface, MixRack or upstream DX168 via a secure EtherCon port. A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX168 for additional remote I/O.
The Expander's rugged design, with hard-wearing rubber bumpers, allows it to be placed directly on the stage floor during performances. Weighing in at just 4.8kg and featuring a sturdy carry handle, the DX168 offers the convenience and portability needed in rental, education, houses of worship and many other environments. An optional 4U rack mounting kit is available which allows installation in industry standard 19-inch racks.
Features
16 Mic Preamps on XLR with Phantom Power status LEDs8 XLR Line OutsCompatible with dLive S Class and dLive C Class hardwareUp to 6 DX168 units can be added to a dLive system for 96 inputs / 48 outputsCascade mode allows daisy-chaining of 2 DX168 Expanders for additional I/O (requires firmware 1.60 or higher)Redundant DX connection to dLive S Class hardwareOptional 19-inch rack mount kit availablePlug and Play - no IP addressing requiredCompatible with CAT5e (or higher) cables of up to 100mRubber bumpersCarry handle
Specifications
Inputs: 16 balanced XLR mic/line inputs with fully recallable preamps; input sensitivity: -60 to +15 dBu; analog gain range: +5 to +60 dB in 1 dB steps; maximum input level: +30 dBu with -20 dB active PAD engagedOutputs: 8 balanced XLR line outputs; nominal output level: +4 dBu; maximum output level: +22 dBu; output impedance: <75 ohmsConnectivity: Two EtherCon ports for digital audio and control signals; supports redundant or cascade mode for daisy-chaining units; compatible with Cat5e (or higher) cables up to 100 metersCompatibility: Integrates with Allen & Heath dLive, Avantis, SQ, and AHM-64 systems; plug and play operation without IP addressingConstruction: Rugged portable design with rubber bumpers and carry handle; optional 19-inch rack mount kit availablePower Supply: Universal mains voltage range of 100-240V AC, 50/60 Hz; power consumption: 20W maxDimensions: Width: 410 mm (16.1 inches); depth: 190 mm (7.5 inches); height: 185 mm (7.3 inches); weight: 4.6 kg (10.1 lbs)Additional Features: Phantom power status LEDs per input; supports daisy-chaining of two units in cascade mode; relay-protected outputs for enhanced reliability
