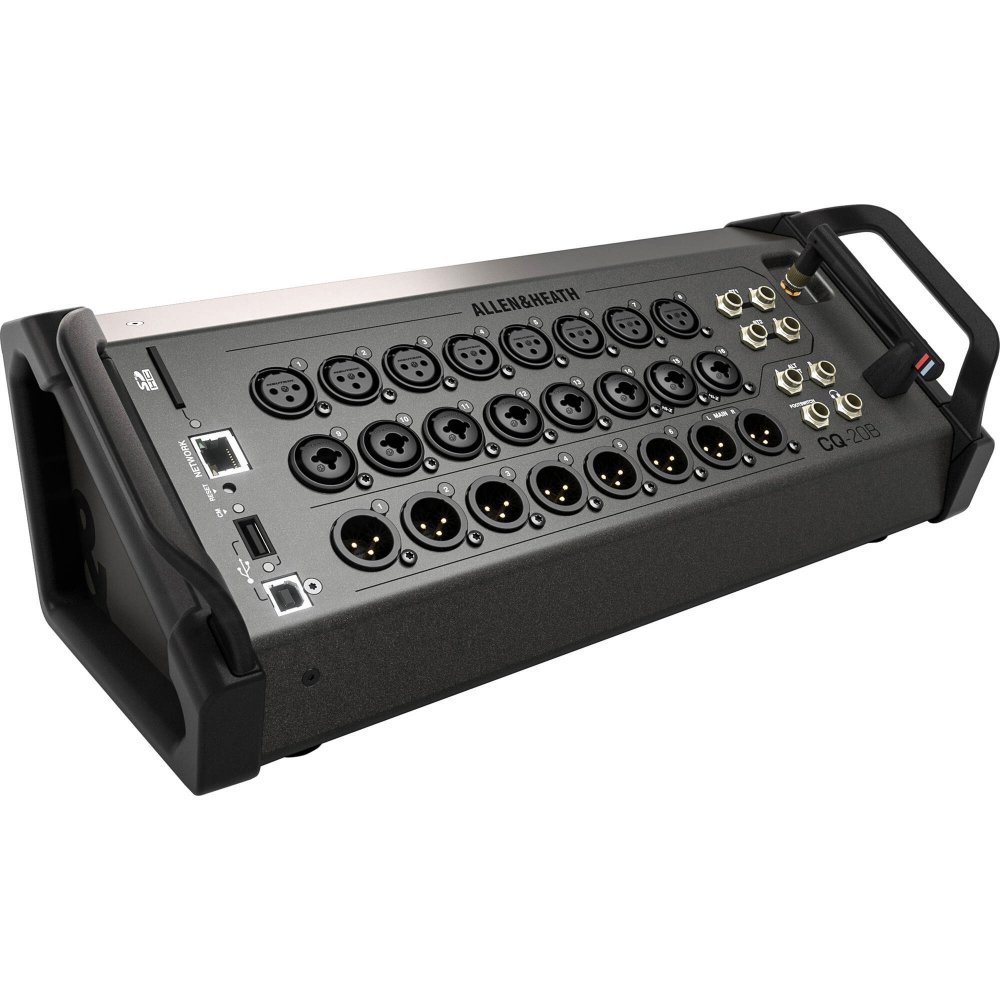

Allen & Heath CQ-20B
MPN #CQ-20B
$1399.00
Save 14.1%, MSRP $1629.00
Ultra-compact 20in / 8out digital mixer with 16 Mic/Line preamps, 6x monitor mixes, 2 assignable headphone outputs, and 24x22 USB-B interface
Designed for life on the stage, CQ-20B is the highest channel-count mixer in the range and is controlled via the free CQ MixPad app.
Mix Smarter. Work Faster. Sound Better.
CQ takes our renowned processing and effects, adds exciting new assistive mixing tools, and packages it all up into our smallest, and most affordable, digital mixer series yet.
Quick and Complete
Pick Your Mixing Style
Every input channel on CQ can be switched between two modes.
Quick Channels offer instrument and application specific processing with the ability to dial in a full channel of processing via a single knob.
Need more control Switch to Complete Channels for advanced, in-depth tweaking of parameters.
Gain Assistant
Faster Setups
Setting the correct amount of gain for each channel isn't the most exciting task, and it quickly eats into your setup time with multiple channels to take care of.
CQ's Gain Assistant quickly and accurately sets the optimal gain level for your one or multiple channels and continues to monitor levels during the performance to prevent any nasty peaks or surprises.
Feedback Assistant
Say Goodbye to Feedback
CQ's Feedback Assistant automatically detects and eliminates problem frequencies using up to 16 filters per output so you can mix with confidence - and forget about feedback.
Pristine Sound
You Won't Believe Your Ears
CQ draws on technology from our latest generation of live sound consoles to deliver audio quality previously unimaginable at this level of mixer.
Pristine 96kHz audio is partnered with studio-grade onboard processing and an optimised suite of FX to set a new standard for what's possible with ultra-compact digital mixers.
Built-In FX
A New Breed of Effects
CQ introduces a new suite of high-quality, user-friendly reverb, delay and modulation algorithms with instrument-specific presets for speedy setup.
Selected units feature our new FX Assist tool, automatically shaping the effects and dynamically responding to your input signal to ensure your mix is enhanced by FX, not engulfed.
User Friendly
You're Always In Control
Although the CQ-20B is designed for life on the stage, you're free to mix from anywhere in the venue via the free CQ MixPad app and the integrated dual-band Wi-Fi.
CQ MixPad gives you control over all parameters of the mixer so you can soundcheck, mix and record from your mobile device or computer.
Recording & Playback
Capture the Performance, Wherever You Are
CQ packs in multiple recording and playback options to ensure you're always ready to capture the performance.
An integrated USB audio interface enables easy multitrack recording, playback and streaming via your DAW, and an SD card slot is provided for reliable multitrack recording and playback on the go.
You can record and playback stereo files via USB key, and you can even playback from your phone via the built-in Bluetooth functionality.
The CQ-20B also includes an assignable Alt-Out - great for an engineer's IEM connection.

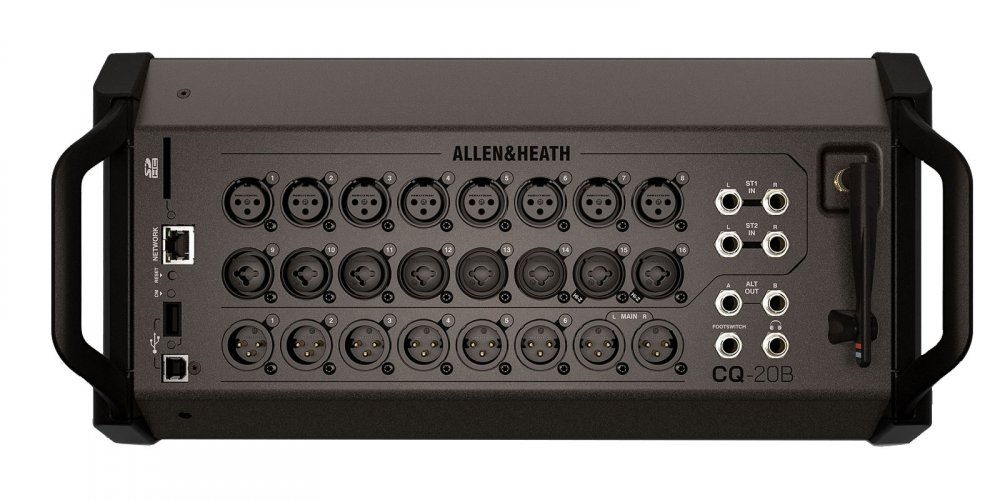

I/O
Get Yourself Connected
CQ-20B gives you all the connectivity you need to get going with 16 mic/line inputs plus two stereo line inputs.
When it comes to outputs, there's a pair of main mix outputs plus 6 outputs for monitor mixes - enough for the whole band - and an assignable Alt Output is also provided.
AMM
Simplify Speech
The integrated Automatic Mic Mixer (AMM) means you can instantly reduce background noise and improve clarity for speech applications without lifting a finger.
AMM is available on all input channels, making it the perfect portable mixer for conferences, podcasts, debates and small-scale theatre productions.
Features
16 Mic/Line preamps, 8x XLR + 8x XLR/TRS ?Combi'2x Balanced stereo line input, 4x TRSMain LR, 2x XLR6x Monitor Mixes, 6x XLRAssignable Stereo Line Out, 2x TRSAssignable headphone output, 6.35mm TRS24x24 USB-B interface24x24 SD record/playbackStereo USB record/playback with dedicated input channelStereo Bluetooth playback with dedicated input channel4x FX enginesDual Footswitch connectionBuilt-in dual band 2.4G/5G AC Wi-Fi with auto channel select
Specifications
Inputs
8 XLR8 XLR/TRS Combi4 TRS (stereo)
Outputs
2 XLR (Main)6 XLR (Monitors)Assignable Alt Out
24-24 USB-B interface (48/96kHz)
SD record/playback
24-24 (48kHz)16x16 (96kHz)
Stereo USB record/playback with dedicated input channel
Stereo Bluetooth playback with dedicated input channel
4 FX engines
Dual Footswitch connection
Assignable TRS headphone output
Built-in dual band 2.4G/5G AC Wi-Fi with auto channel select
Width - 372mm
Depth - 153mm
Height - 133mm
Weight - 2.6kg
