AEA A440
UPC/EAN #652401977469
MPN #A440

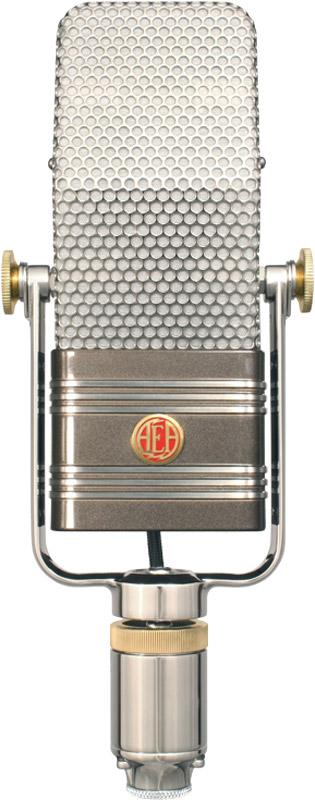

High performance phantom-powered active Ribbon in the 44 tradition - with X motor and full museum quality shell standard
As with the rest of AEA's Big Ribbon microphones, it needs very little EQ, takes it nicely when you want it, and is free of resonances in the audible range. The A440 is unlike any other microphone on the market today, and no professional studio should be without one.
A Glance under the Hood

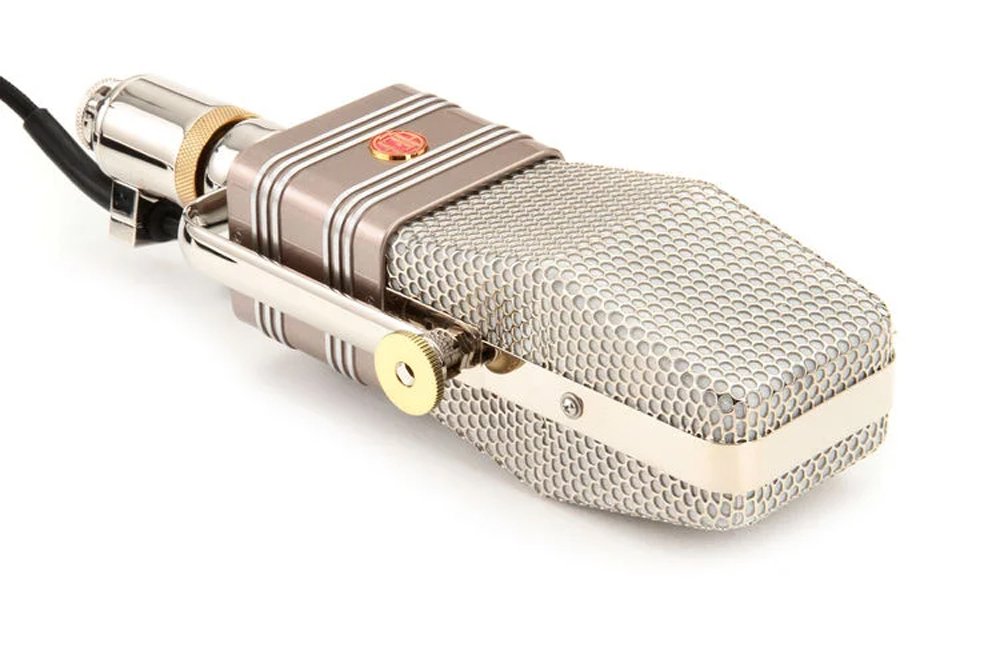

Like its passive cousin, the R44CX, the A440 is based on the RCA 44BX, but is phantom powered and uses a custom-made German transformer. The active electronics are inspired by AEA's acclaimed TRP JFET preamp technology, providing a consistent sound immune to preamp loading. The A440 uses the same RCA NOS (new-old stock) ribbon element, only 1.8 microns thick, which is hand-cut from material originally manufactured for RCA. It features a museum-quality shell with a durable bronze investment cast yoke. Umber paint and a red medallion on the transformer case, and a bright nickel finish with polished brass accents are the icing on the cake for this piece of beauty.
Track Record
Because of its exceptionally low noise floor and its classic sound characteristics, the A440 has quickly become a favorite of even the most critical ears. Orchestral sampling experts EastWest Studios now favor their pair of A440s over their vintage RCA 44s due to the advantages in noise performance. Musicians with very high sound-quality demands and the desire for a long-lasting investment for their microphone locker gravitate towards the A440. Legendary guitarists Peter Frampton & Neil Young, or Irish alternative rockers The Script, all share their love for this stunning microphone.
Features
Phantom-powered Big Ribbon with 18 dB more gain than the R44Extraordinary build qualityCustom German toroidal transformerQuietest ribbon microphone ever made
Specifications
Operating Principle: Pressure gradient microphone
Directional Pattern: Bidirectional (Figure-of-8)
Frequency Range: 20 Hz to 15 kHz
Maximum SPL: 136+ dBSPL (1% third harmonic > 1 kHz)
Output Sensitivity: 21 mV/Pa (-33.5 dBV) into unloaded circuit
Self Noise: 9 dB(A)
Output Impedance: 92 broadband
Recommended Load Impedance: 1.0 k or greater
Powering: P48 phantom power, 7 mA
Polarity: Pin 2 high for positive pressure on front of microphone.
Connector: XLR-3M wired to a 3 m captive cable
Maximum SPL: 136+ dB SPL (1% third harmonic > 1 kHz)
Sensitivity
Output Impedance: 30 mV/Pa (-33.5 dBV) into unloaded circuitRecommended Load: 92 BroadbandImpedance: 1.0 k or greaterPhantom Power: P48 phantom power, 7 mA
Off Axis Response
Polar Pattern: Native bi-directional patternHorizontal: Level changes with angle, frequency response is consistent, -35 dB null at 90 / 270Vertical: Level changes with angle, reduced HF response above and below 0 / 180 axis, -35 dB null at 90 / 270
Transducer element
Ribbon Thickness: 1.8 (0.0000018 m) of pure aluminumRibbon Width: 0.185" (4.7 mm)Ribbon Length: 2.35" (59.7 mm)
Accessories
Included: Custom storage / shipping case, stand adapter, manual
Optional
Any length cable, inquire for price and delivery. Matched stereo pair
Limited Warranty
One year parts and labor, shipping not included. Three year extended warranty if the product is registered.
Dimension
Weight with Cable: 7 lb 9 oz (3.43 kg) in storage case with cableHeight: 12.25" (31.1 cm)Width: 4.62" (11.7 cm)Depth: 3.25" (8.3 cm)
